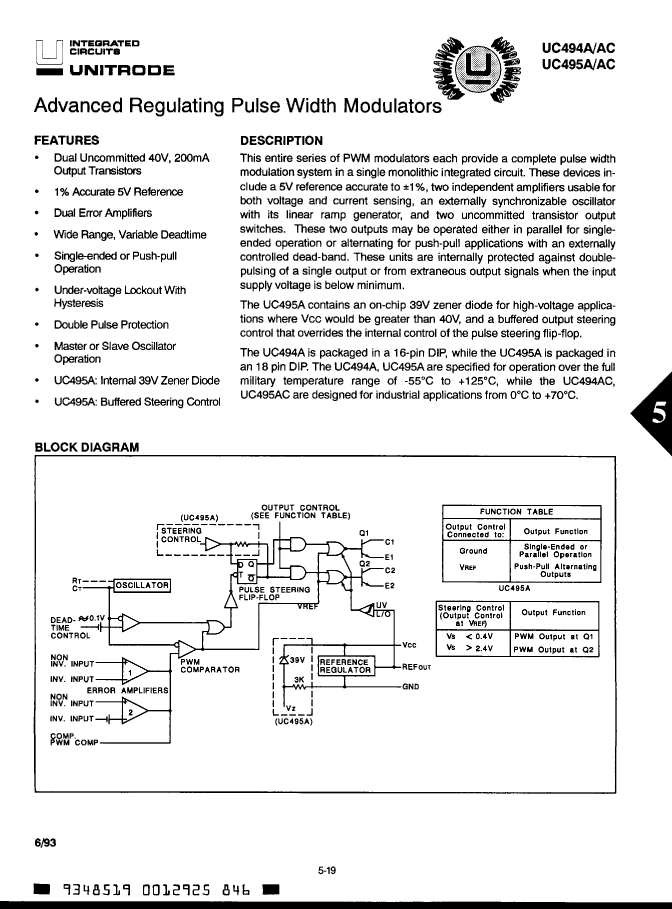

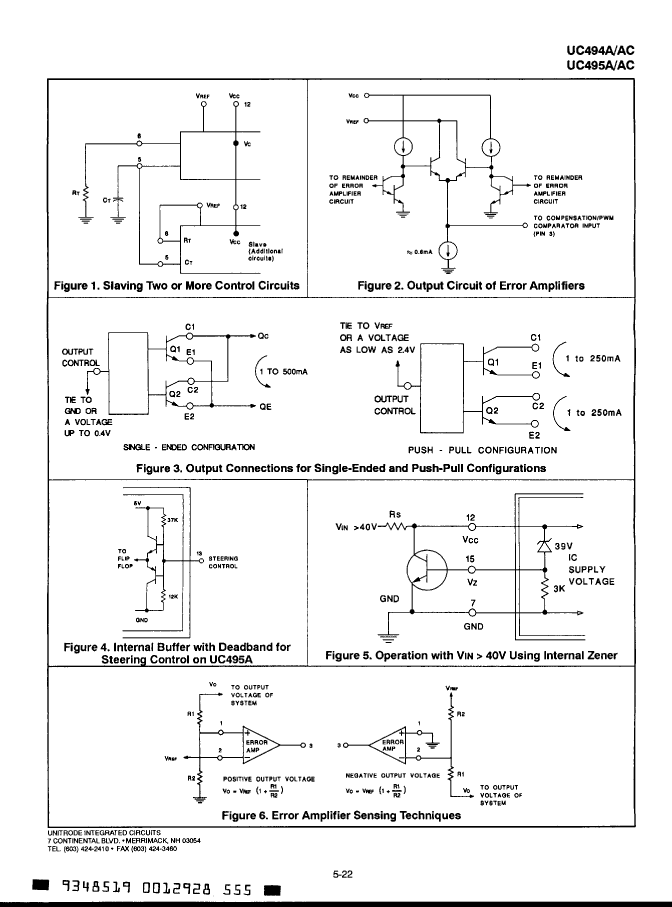

UC494CJ Overview

Switching Regulator/Controller, Voltage-mode, BIPolar, CDIP16,

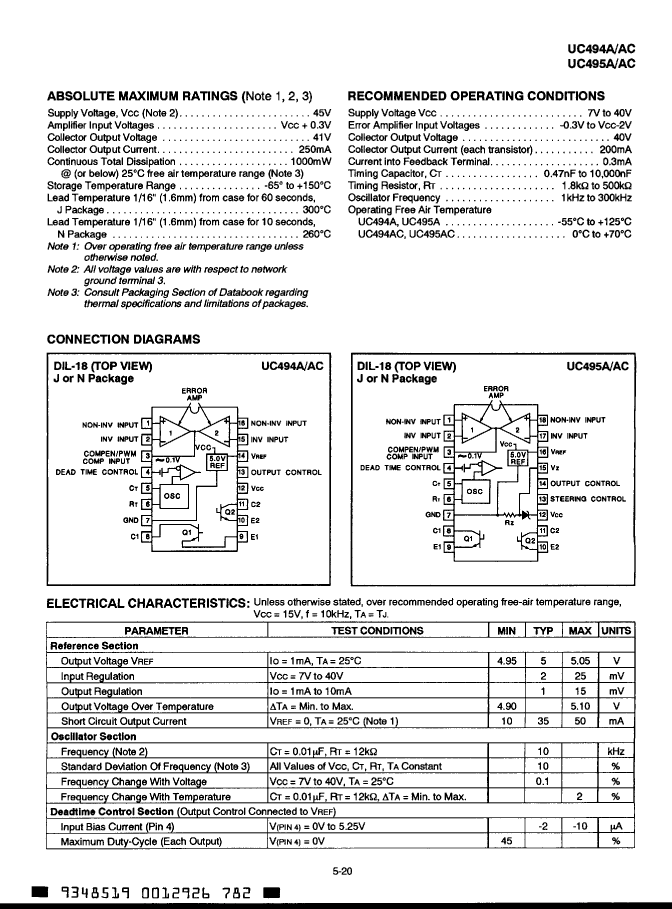

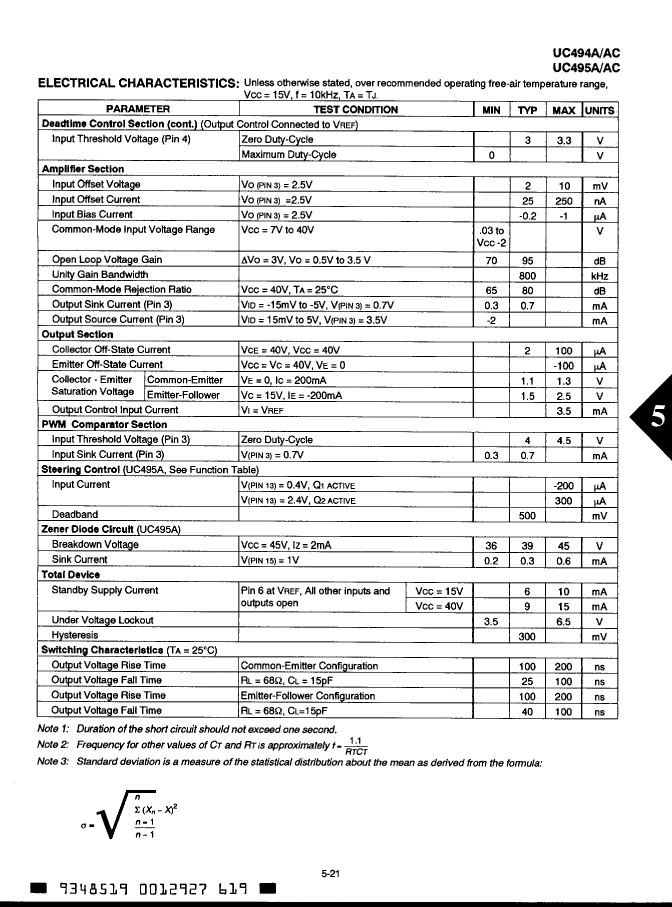

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1435629781
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
control mode	VOLTAGE-MODE
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	UC494CJ	UC494AJ/883B
Description	Switching Regulator/Controller, Voltage-mode, BIPolar, CDIP16,	Switching Controller, Voltage-mode, 0.2A, 300kHz Switching Freq-Max, BIPolar, CDIP16, DIP-16
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP-16
Reach Compliance Code	unknown	unknown
control mode	VOLTAGE-MODE	VOLTAGE-MODE
JESD-30 code	R-XDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0
Number of terminals	16	16
Maximum operating temperature	70 °C	125 °C
Package body material	CERAMIC	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
