DBCIDCB4S18BG1: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCB4S18BG1 Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

DBCIDCB4S18BG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304357645
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.217 inch
body length	1.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	B4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

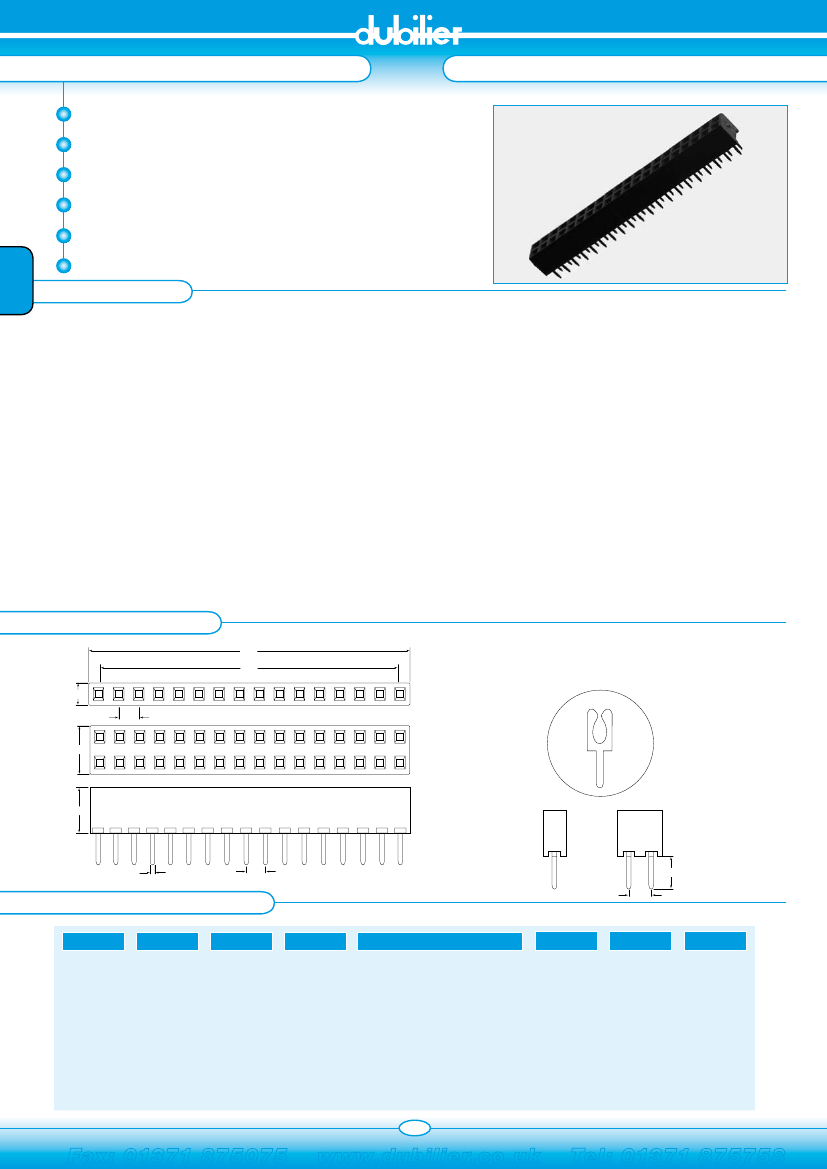

FEMALE HEADERS

Industry compatible

Competitively priced

Single or dual row

No. of contacts 02-80

Gold plated contacts

FEMALE HEADER STRAIGHT - 5.5mm PROFILE

SECTION 8

2.54mm pitch

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Phosphor Bronze

PBT & Glass-Fibre Reinforced UL-94V-0

1 A DC

30M Ω Max

3000M Ω Min

B

A

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

2.54

Voltage:

2.54

Operating Temperature:

2.54

A

B

A

B

2.54

500V AC for One Minute

A

-40°C to + 105°C

B

OUTLINE

2.54

DRAWING

A

5.0

2.54

B

A = 2.54mm x N° of Contacts

B = (2.54mm x N° of Contacts) -1

5.0

2.54

5.0

5.5

5.0

5.5

2.54

5.5

0.6

2.54

3.0

2.54

3.0

0.6

ORDERING INFORMATION

2.54

3.0

DBC

5.5

0.6

IDC

0.6

IDC

Connector

B4

2.54

Series

2.54

S

Nº of Rows

S = Single Row

D = Dual Row

04

Nº of Contacts/per row

02=2way

Thro to

43=43way

2.54

B

2.54

G

1

Colour

1=Black

Dubilier

Connectors

Contact Material

B=Bronze

3.0

2.54

Contact Plating

G= Gold Flash

0.6

2.54

198

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
