DBCIDCB6S32AG1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDCB6S32AG1

DBCIDCB6S32AG1: DescriptionBoard Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCB6S32AG1 Overview

Board Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

DBCIDCB6S32AG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304356802
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.331 inch
body length	3.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	B6
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

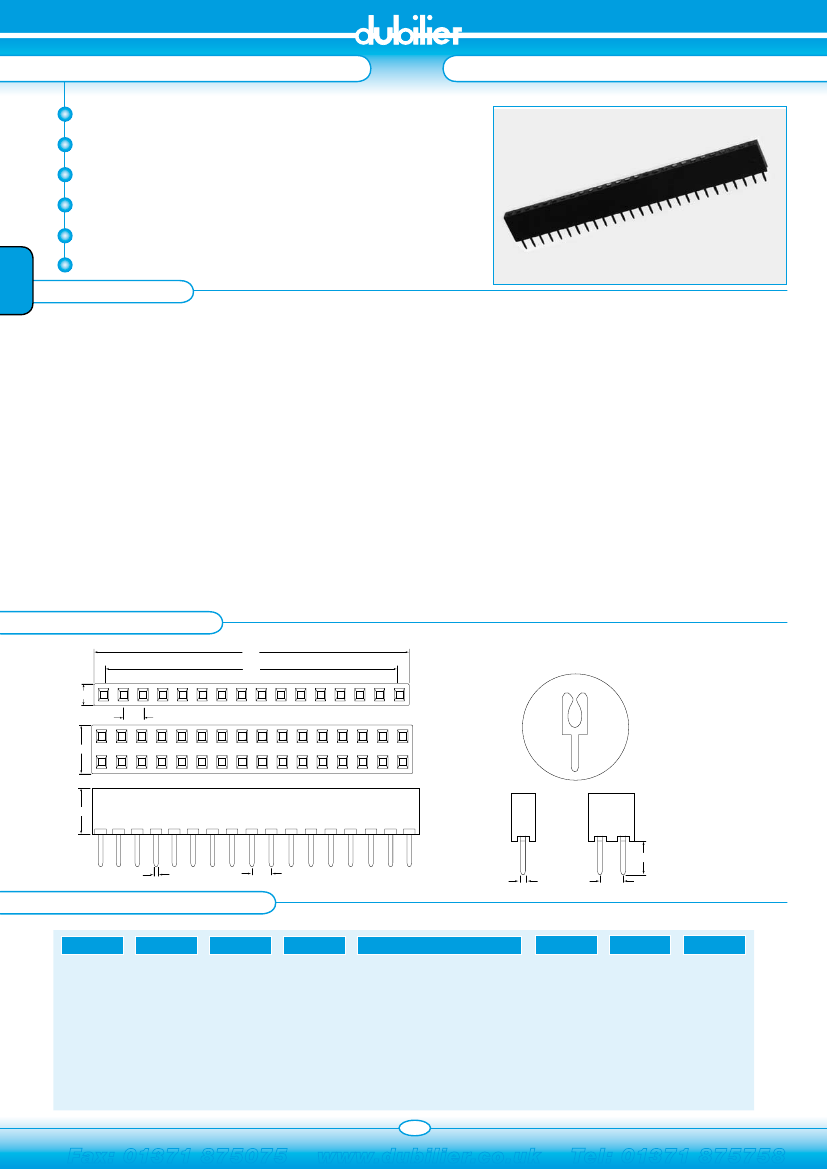

FEMALE HEADERS

Industry compatible

Competitively priced

Single or dual row

No. of contacts 02-80

Gold plated contacts

FEMALE HEADER STRAIGHT - 8.4mm PROFILE

8.4

SECTION 8

8.4

2.54mm pitch

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

1 A DC

30M Ω Max

Contact Resistance:

Insulator Resistance:

3000M Ω Min

2.54

Dielectric Withstanding

2.54

Voltage:

2.54

Operating Temperature:

2.54

500V AC for One Minute

-40°C to + 105°C

OUTLINE

2.54

DRAWING

A = 2.54mm x N° of Contacts

B = (2.54mm x N° of Contacts) -1

5.0

2.54

5.0

2.54

5.0

8.4

3.3

0.6

8.4

5.0

8.4

ORDERING INFORMATION

0.6

2.54

0.4

2.54

0.4

3.3

2.54

3.3

2.54

0.4

3.3

2.54

DBC

8.4

Dubilier

Connectors

0.6

IDC

2.54

Series

Nº of Rows

S = Single Row

D = Dual Row

02=2way

Thro to

43=43way

0.4

2.54

3.3

Contact Plating

G= Gold Flash

Colour

1=Black

IDC

Connector

Nº of Contacts/per row

Contact Material

A=Brass

0.6

2.54

0.4

2.54

200

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
