BR24C01A-10TU-1.8 datasheet, PDF

Datasheet> All Categories > storage> storage> BR24C01A-10TU-1.8

BR24C01A-10TU-1.8: DescriptionSupply voltage 1.8V~5.5V/Operating temperature -40C~+85C type; Categorystorage storage; File Size596KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BR24C01A-10TU-1.8 Overview

Supply voltage 1.8V~5.5V/Operating temperature -40C~+85C type

BR24C01A-10TU-1.8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP8,.25
Contacts	8
Reach Compliance Code	unknow
Maximum clock frequency (fCLK)	0.4 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DDDR
JESD-30 code	R-PDSO-G8
length	4.4 mm
memory density	1024 bi
Memory IC Type	EEPROM
memory width	1
Number of functions	1
Number of terminals	8
word count	1024 words
character code	1000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1KX1
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Serial bus type	I2C
Maximum standby current	0.000003 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE

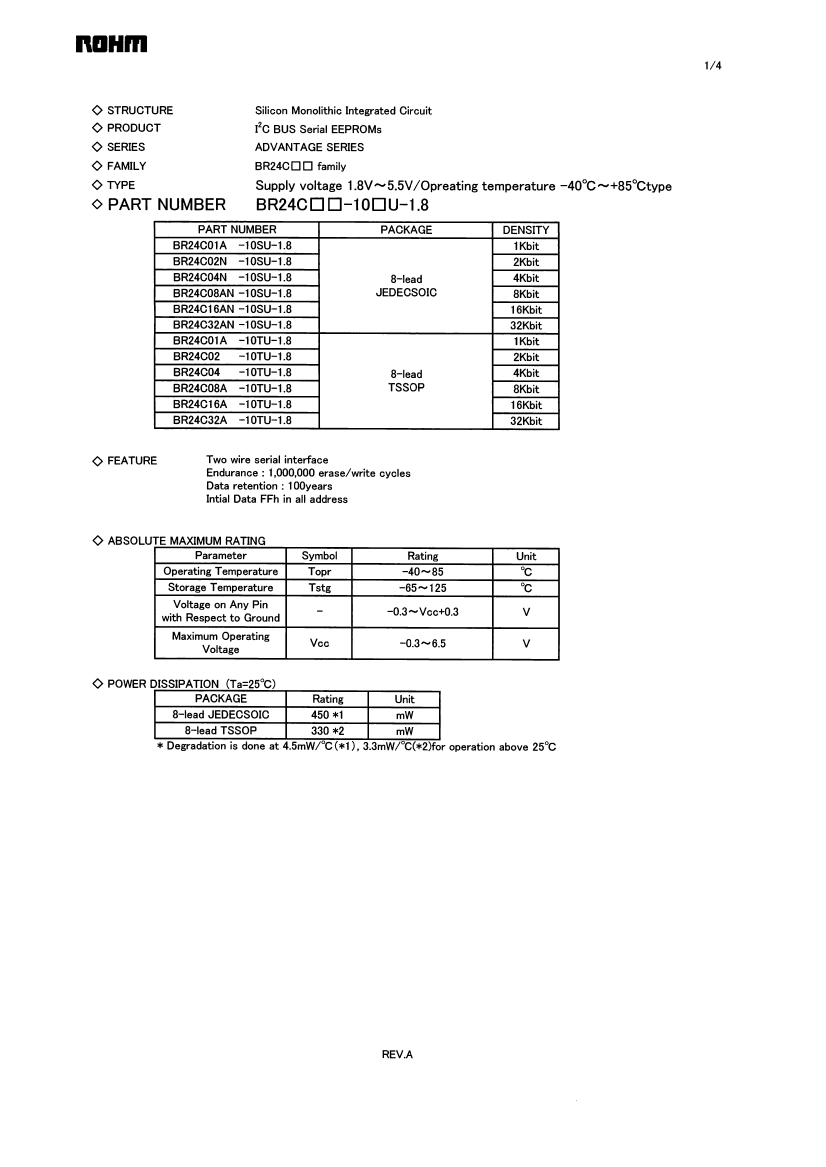

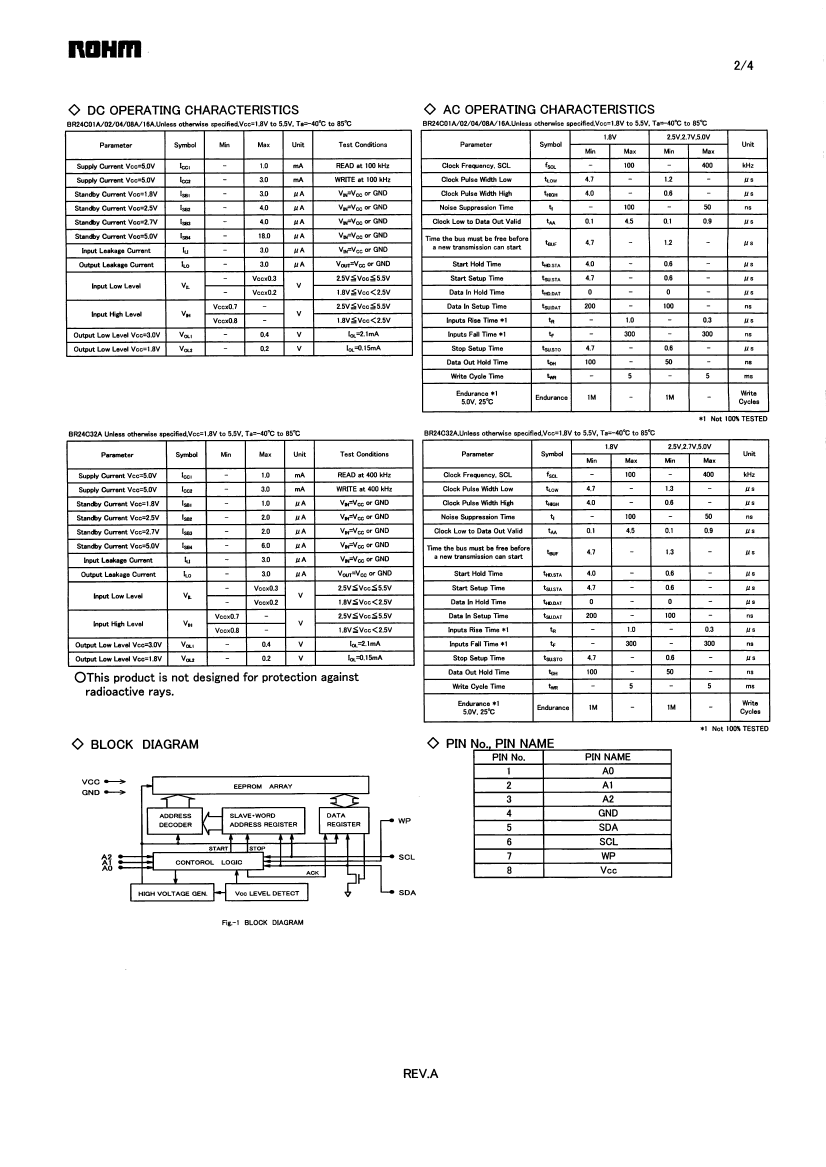

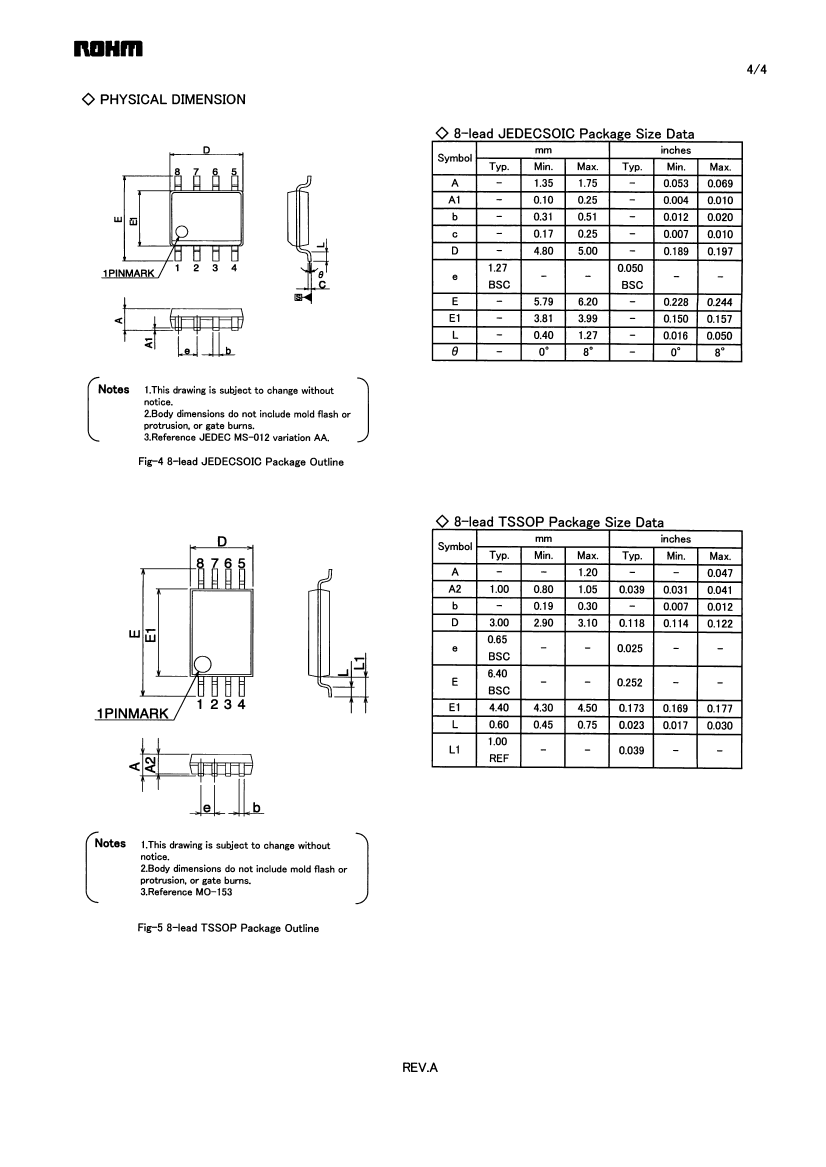

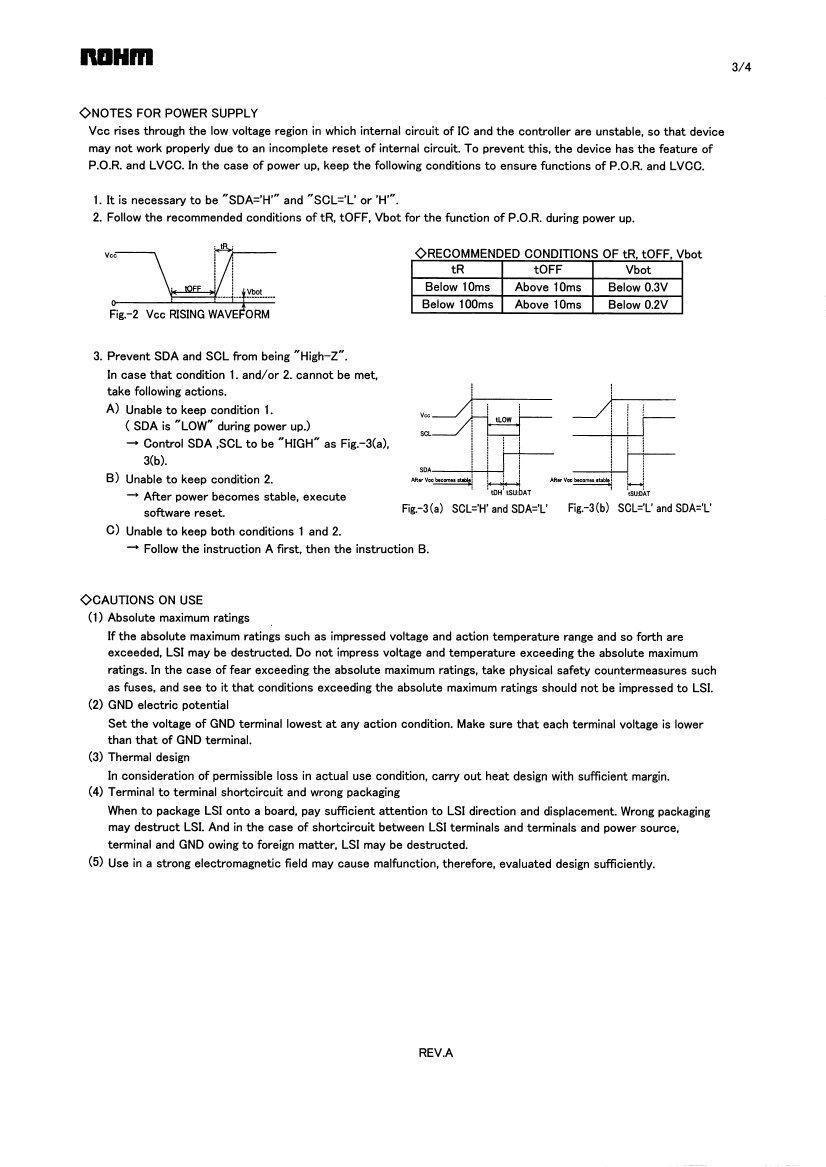

Preview
