9416S-E1-11-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9416S-E1-11-10

9416S-E1-11-10: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9416S-E1-11-10 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

9416S-E1-11-10 Parametric

Parameter Name	Attribute value
Objectid	1322271549
Reach Compliance Code	unknown
body width	0.157 inch
subject depth	0.248 inch
body length	0.646 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9400S
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.095 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

Specifications

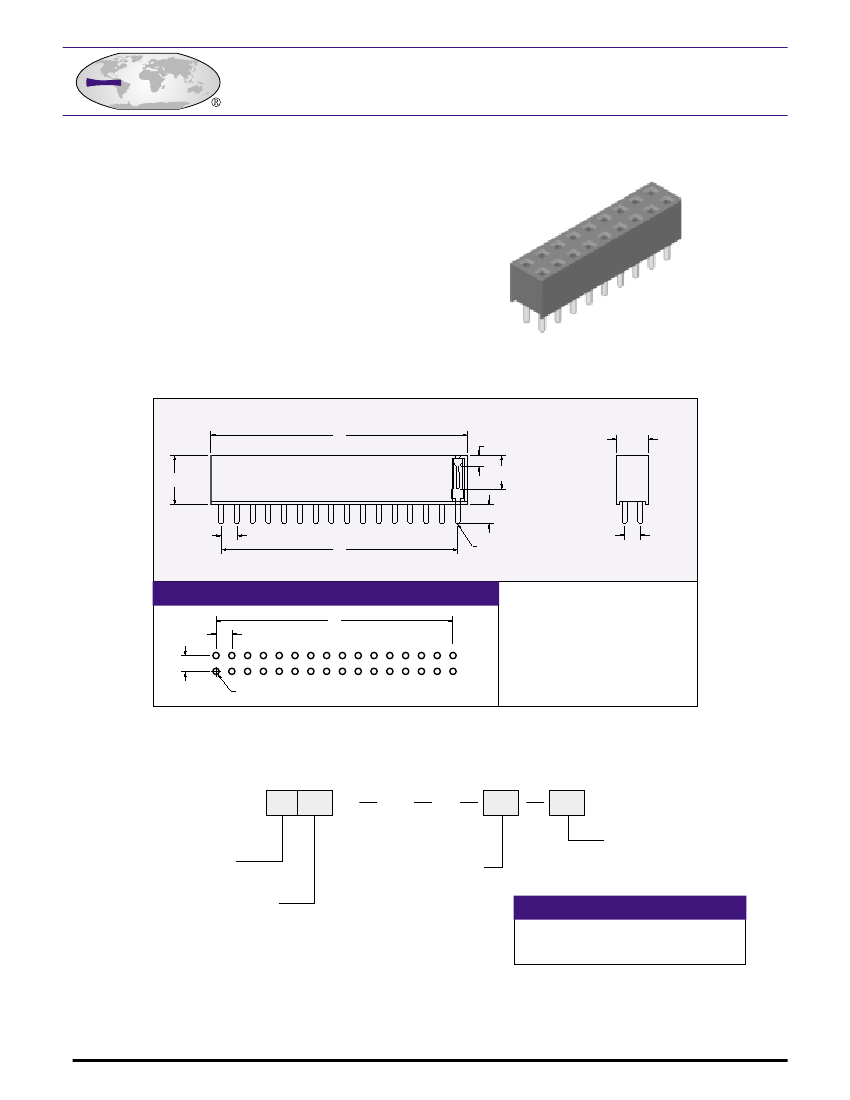

.079 [2.00] High Profile Socket

9400S Series Sockets

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Phosphor Bronze

Contact Plating: Gold and/or or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Contact Resistance:

20 m ohms max.

Max Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

.047 [1.2]

.183 [4.65]

.157 [4.0]

.248 [6.3]

.095 [2.4]

.0787 [2.0]

.020 x.016 [.50 x.40]

.079 [2.0]

PCB LAYOUT

.0787 [2.0] TYP

.079 [2.0]

Ø.032±.002 [.80±.05]

= .016 + (.0787 x No. of Pos.)

= .0787 x (No. of Cont./2 -1)

DIMENSIONS ARE IN INCHES & [MM]

PART NUMBERING

94 XX S

SERIES CODE

.079 SOCKETS

LOCKING LEADS

= LOCKING LEADS

LEAVE BLANK FOR STANDARD

CONTACT PLATING

.000050” Nickel underplate

CONTACT

TAIL

= 100µ”Sn

100µ”Sn

= Au Flash

100µ”Sn

= Au Flash

Au Flash

= 10µ”Au

100µ”Sn

= 15µ”Au

100µ”Sn

= 30µ”Au

100µ”Sn

NO. OF CONTACTS

12 - 60

SUGGESTED MATING CONNECTORS

94XX-BX-XX-XX (PAGE F-22)

94XX-DX-XX-XX (PAGE F-23)

94XX-EX-XX-XX-X (PAGE F-24)

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION

WWW.ECSCONN.COM
