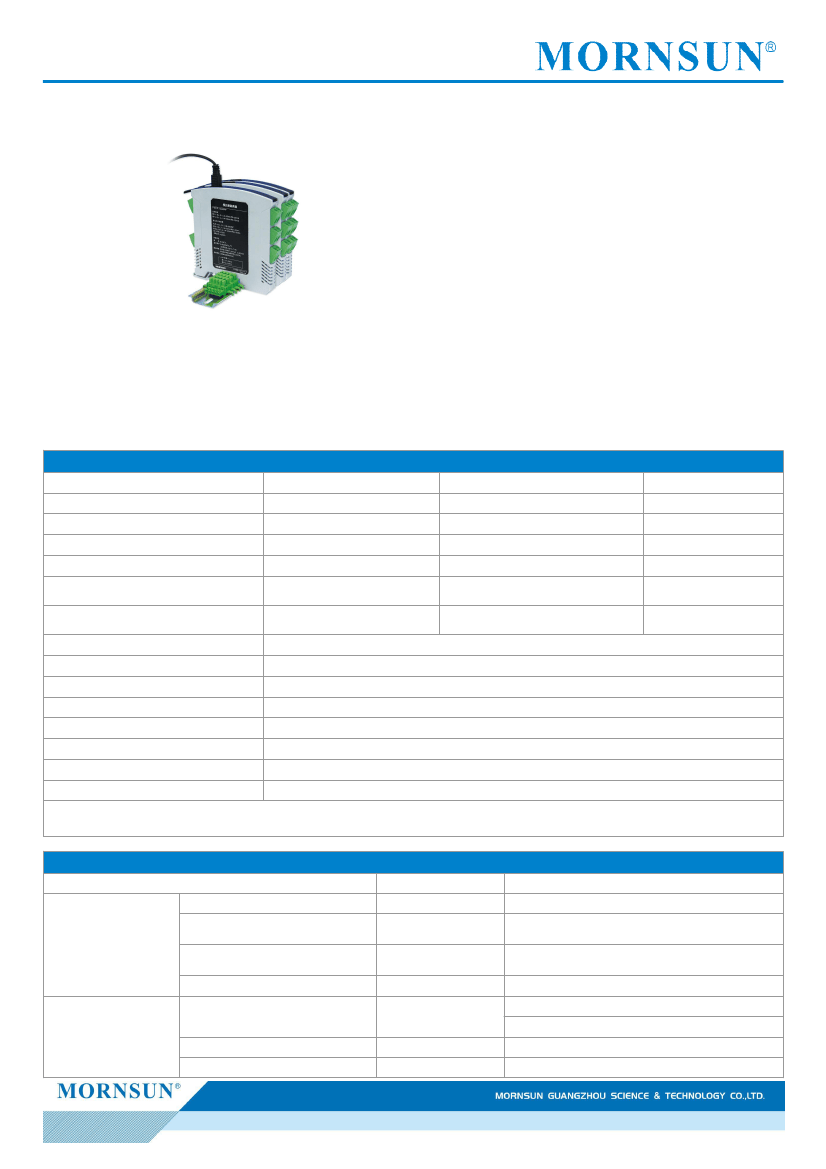

Isolated Transmitter
TAxxxPW series
Programmable analog isolators with isolated power
output
FEATURES
l
3-port electrical isolation between input, output
and power supply
l
12.5mm slim case
l
High accuracy (0.1% F.S.)
l
High linearity (0.1% F.S.)
l
Low temperature drift(50PPM/°C)
l
Low-power dissipation
l
Excellent EMC performance
l
Mini USB port communication
l
Input / Output range programmable
l
High reliability(MTBF>500,000 hours)
AxxxPW series analog isolator and isolator with isolation power output which are mainly applied in industrial automation systems can
isolated convert analog input signal of the industrial field instruments to the matched analog output signal for the DCS/PLC, realizing the
acquisition and transmission of field signal. An independent power supply is needed for the product and the port of power supply, input
and output are isolated from each other. This series of products contain combinations of 1 input 1 output, 1 input 2 output, 2 input 2 output
and so on. The thickness of 12.5mm meet the need for high density field installation.
Selection Guide
Transformation types
Current input, Current output (Isolator)
Current input, Voltage output (Isolator)
Voltage input, Voltage output (Isolator)
Voltage input, Current output (Isolator)
Current input, Current output
(Isolators with isolated power output)
Current input, Voltage output
(Isolators with isolated power output)
Input signal
Input type
Current input
Voltage input
Output signal
Output type
Current output
Voltage output
--
Input signal
4~20mA / 0~20mA（Programmable）
0~5V / 0~10V / 1~5V / 2~10V（Programmable）
--
Output signal
4~20mA / 0~20mA（Programmable）
0~5V / 0~10V / 1~5V / 2~10V（Programmable）
1 input 1 output
TA100PW
TA120PW
TA130PW
TA140PW
TA105PW
TA125PW
2 input 2 output
TA200PW
TA220PW
TA230PW
TA240PW
TA205PW
TA225PW
1 input 2 output
TA600PW
TA620PW
TA630PW
TA640PW
TA605PW
TA625PW
Note:1. Customers need to choose the type of the input signal, output signal and range. We could also offer customer design for special input and output;
2. You can get the USB Adapter T-01 for the isolator from MORNSUN free of charge if you need.
Input Specifications
Item
Input voltage
Power dissipation (isolators)
Power input parameters
Power dissipation
(isolators with isolated power output)
Power protection
Input impedance
Field Area
Isolation power output
Distribution output protection
Operating Conditions
Value
18~30VDC(Typical values 24VDC)
1 input 1output≤0.9W
1 input 2 output, 2 input 2 output≤1.2W
1 input 1output≤1.5W
1 input 2 output, 2 input 2 output≤2.5W
Reverse polarity protection, over-voltage protection
≤
25Ω（Input current signal）
≥500KΩ（Input
voltage signal）
No-load 24VDC±10%, 20mA output
≥
20VDC
Short-circuit protection
2014.02.18-A/2
Page 1 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
Isolated Transmitter
TAxxxPW series
Output Specifications
Item
Fault output
Output type
Break alarm signal
Normal operation
Control Area
Input over-range
Break alarm
Load capacity
Communication port
Operating Conditions
--
4~20mA
About 21mA
0~20mA
About 21mA
1~5V
About 5.25V
0~5V
About 5.25V
0~10V
About 10.5V
2~10V
About 10.5V
Corresponding channel red light off
Corresponding channel red lights often flicker (0~20mA/0~5V/0~10V of Input type is no such
funstion)
Red light of the corresponding channel input disconnection(red, Single-channel 1pcs,
Dual-channel 2pcs)
≤500Ω(Output
current maximum)
≥1MΩ(Output
voltage maximum)
Mini USB port
Communication protocol See "MORNSUN Modbus Protocol Rules"
Transmission Specifications
Item
Precision
Zero Offset
Temperature Drift
Response time
Operating Conditions
Ta=25℃, Full-scale range,100% load
Ta=25℃, Sin = 0，100% load
Operating temperature range of -25 ~ +71℃
Value
0.1%F.S.
0.1%F.S.
0.0035%F.S./
℃
< 0.5s
General Specifications
Item
Electrical Isolation
Insulation Resistance
Operating Conditions
1Min leakage current
≤5mA
Signal input port, signal output port
Value
Field area and control area:2KVAC/3KVDC,1min,leakage current
≤5mA
Output and power supply,2KVAC/3KVDC,1min,leakage current
≤5mA
100MΩ，500VDC
Physical Specifications
Casing Material
Safety Class
Dimensions
Weight
Cooling
PA66
IP20 (IEC60529 / EN60529)
35mm DIN-rail package: T-rail card package (DIN50022), pluggable connection pin, thickness 12.5mm
1 input 1 output: 100g;2 input 2 output & 1 input 2 output: 135g, typ
Free convection
EMC Specifications
EMI
Conducted Emission
Radiated Emission
Electrostatic Discharge
EMS
Radiation Iimmunity
EFT
Surge Immunity
Conducted Disturbance Immunity
CISPR22/EN55022 CLASS A
CISPR22/EN55022 CLASS A
IEC/EN61000-4-2
IEC/EN61000-4-3
IEC/EN61000-4-4
IEC/EN61000-4-4
IEC/EN61000-4-5
IEC/EN61000-4-5
IEC/EN61000-4-6
Contact
±4KV/Air ±8KV
10V/m
power supply port
±2KV
signal port
±1KV
power supply port
±1KV/2KV
signal port
±1KV
(line-to-ground)
3 Vr.m.s
perf. Criteria B
perf. Criteria A
perf. Criteria B
perf. Criteria B
perf. Criteria B
perf. Criteria B
perf. Criteria A
EMS
2014.02.18-A/2
Page 2 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
Isolated Transmitter
TAxxxPW series
Application Precautions
1.
2.
3.
4.
Please read the instructions carefully before use; contact our technical support if you have any problem;
Do not use the product in hazardous areas;
Use DC power supply for the product. and 220V AC power supply is prohibited;
Do not disassemble or assemble the product without permission to avoid explosion protection failure or malfunction of product.
Design Reference

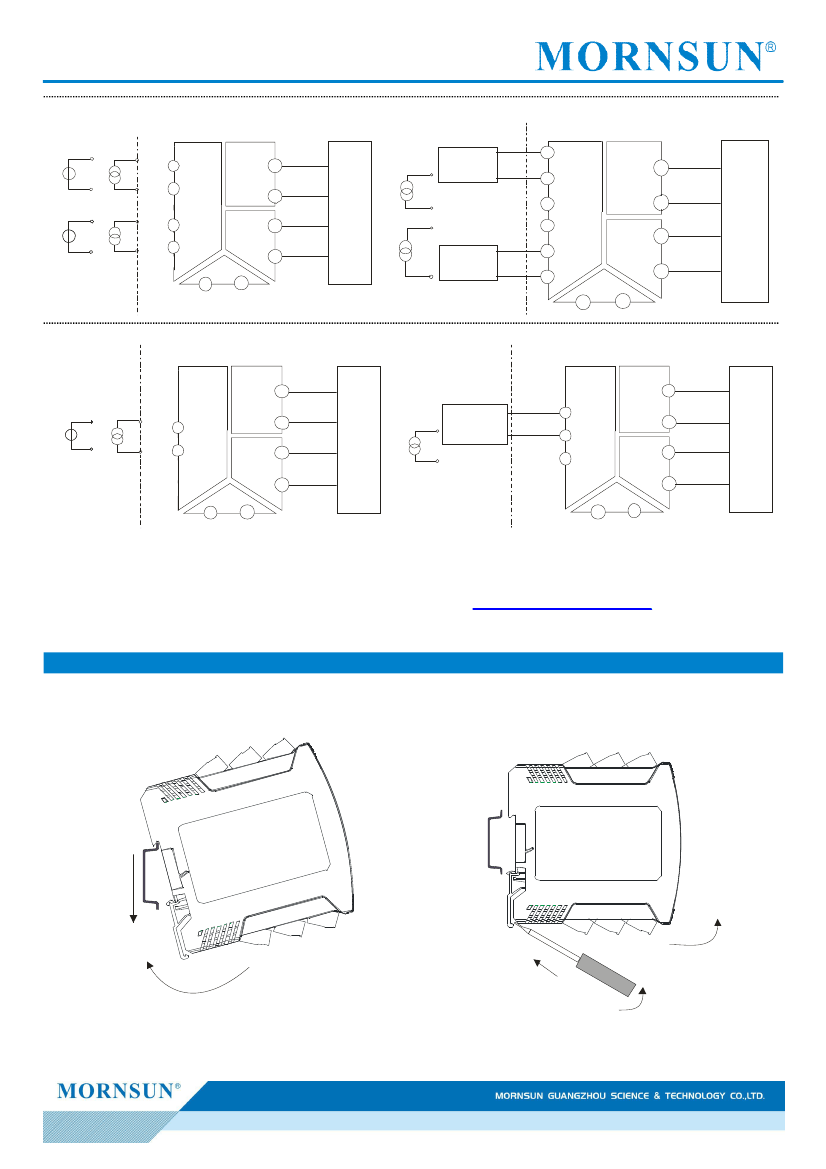

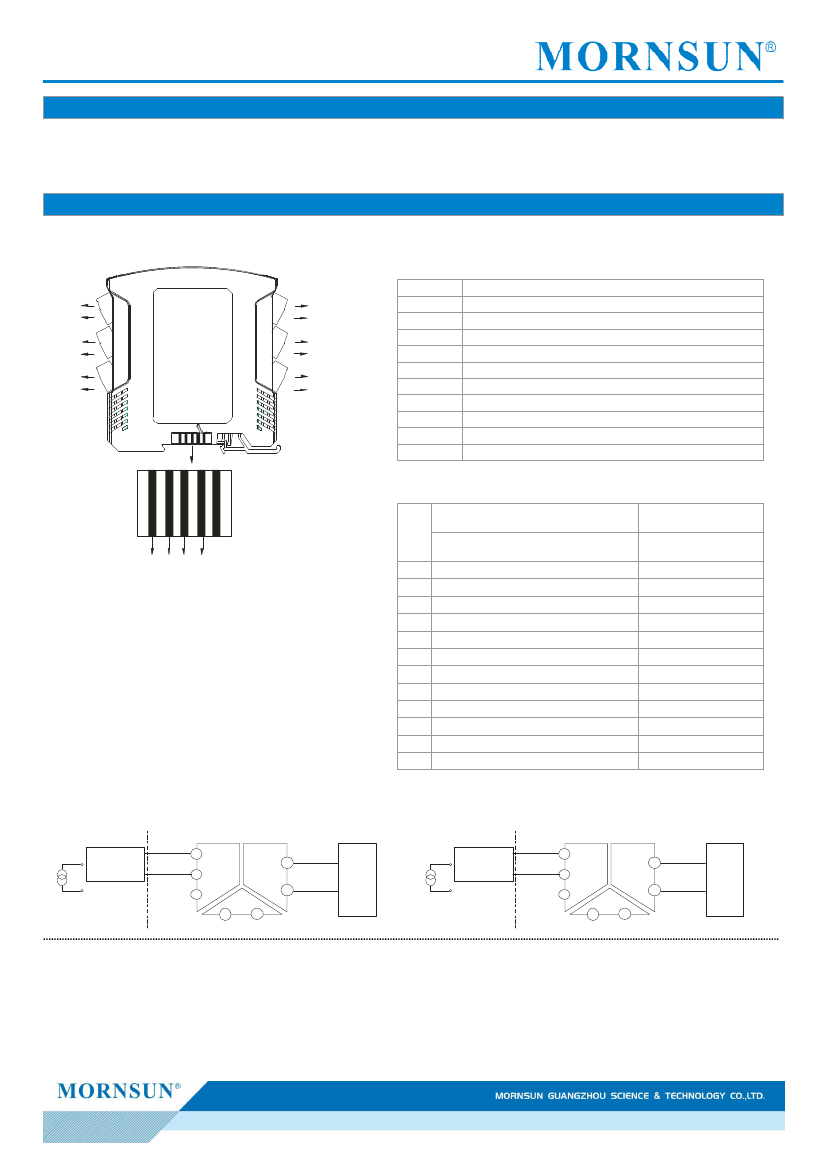

1. Wiring diagram for product application
Programmable analog signal isolator
PIN
1
2
5
6
7
8
9
10
11
12
Bottom power supply port
8
O uts id e
7
10
O uts id e
9
12
O uts id e
11
Ins id e
Ins id e
Ins id e
I ns id e
O uts id e
6
5
4
3
2
1
Description (2 input 2 output)
Signal 2 input-
Signal 2 input+
Signal 1 input-
Signal 1 input+
Signal 1 output-
Signal 1 output+
Signal 2 output-
Signal 2 output+
power input-
power input+
I ns id e
O uts id e
I ns id e
O uts id e
Programmable analog signal isolator with isolation power output
Distributor wiring method
PIN
Description
(2 input 2 output)
Signal 2 isolated input-
Signal 2 isolated input+
/
/
Signal 1 isolated input-
Signal 1 isolated input+
Signal 1 output-
Signal 1 output+
Signal 2 output-
Signal 2 output+
power input-
power input+
Isolator
wiring
method
Description
(2 input 2 output)
Signal 2 input+
/
Signal 2 input -
Signal 1 input -
Signal 1 input +
/
Signal 1 output-
Signal 1 output+
Signal 2 output-
Signal 2 output+
power input-
power input+
Powe r+
Powe r+
Powe r-
Powe r-
1
2
3
4
5
6
7
8
9
10
11
12
Note: When us e bottom power supply, anyone group or both is OK.
TA1x0PW
Fie ld
Ar ea
Ci rcui t
Tr ansd ucer
Cha nnel 1
Control
Ar ea
TA1x5PW
Fie ld
Area
Ci rcui t
Tr ansd ucer
Cha nnel 1
Contr ol
Area
8
Cha nnel 1
11
12
11
12
Powe r
Powe r
2014.02.18-A/2
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
-
+
-
-
4
G ND
+
-
7
4
G ND
-
-
5
Cha nnel 1
DC S
PLC
5
+
8
+
+
+
2-
Wi re
6
2-
Wi re
6
7
DC S
PLC
Page 3 of 5
Isolated Transmitter
TAxxxPW series
TA2x0PW
Fie ld
Ar ea
+
+
6
Cha nne l 1
5
8
Cha nne l 1
C ontr o l
Ar ea
TA2x5PW
Fie ld
Ar ea
Contr ol
Area
4
3
Cha nn e l 2
9
Pow e r
TA6x0PW
11
Powe r
Field
Area
8
Control
Ar ea
+
Fe ild
Area
TA6x5PW
Cha n ne l 2
11
12
11
12
Power
①
Use dismountable terminals for instrument wiring, easy to operate;
②
The sectional area of conductor is 0.5mm
2
-2.5 mm
2
;
③
The length of conductor exposed is 8mm and is fastened by M3 bolts.
Pow e r
2. For more information Please find the application notes on
www.mornsun-power.com
Installation & disassembly
Installation
DIN35mm standard rail installation
1. Insert the top of the instrument card in the rail;
2. Push the bottom of the instrument into the rail.
Disassembly
1. Insert to the clamp on the lower end of instrument with a screw
driver (tool edge width≤6mm);
2. Push the screw driver up, and pry the clamp down;
3. Pull the instrument up out of the guide rail.
1
3
1
2
2
2014.02.18-A/2
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
-
9
+
+
-
+
-
+
-
-
5
10
4
GND
-
Cha n ne l 1
5
-
-
+
6
7
DCS
PLC
Ci rcui t
Tr an s d u cer
Cha nnel 1
+
Cha n ne l 1
2-
W i re
6
+
+
-
11
12
-
1
12
-
Ci rcui t
Tr ansd ucer
Channel 2
+
-
+
-
-
1
Cha nne l 2
2-
Wi re
2
+
+
+
2
10
GND
10
Channel 2
9
-
7
DC S
PLC
GND
-
7
5
+
Ci rcui t
Tr ansd ucer
Cha nnel 1
+
8
Cha nnel 1
2-
Wi re
6
-
-
DC S
PLC
Control
Area
8
Cha nnel 1
7
10
Cha nnel 2
9
DCS
PLC
Page 4 of 5
Isolated Transmitter
TAxxxPW series

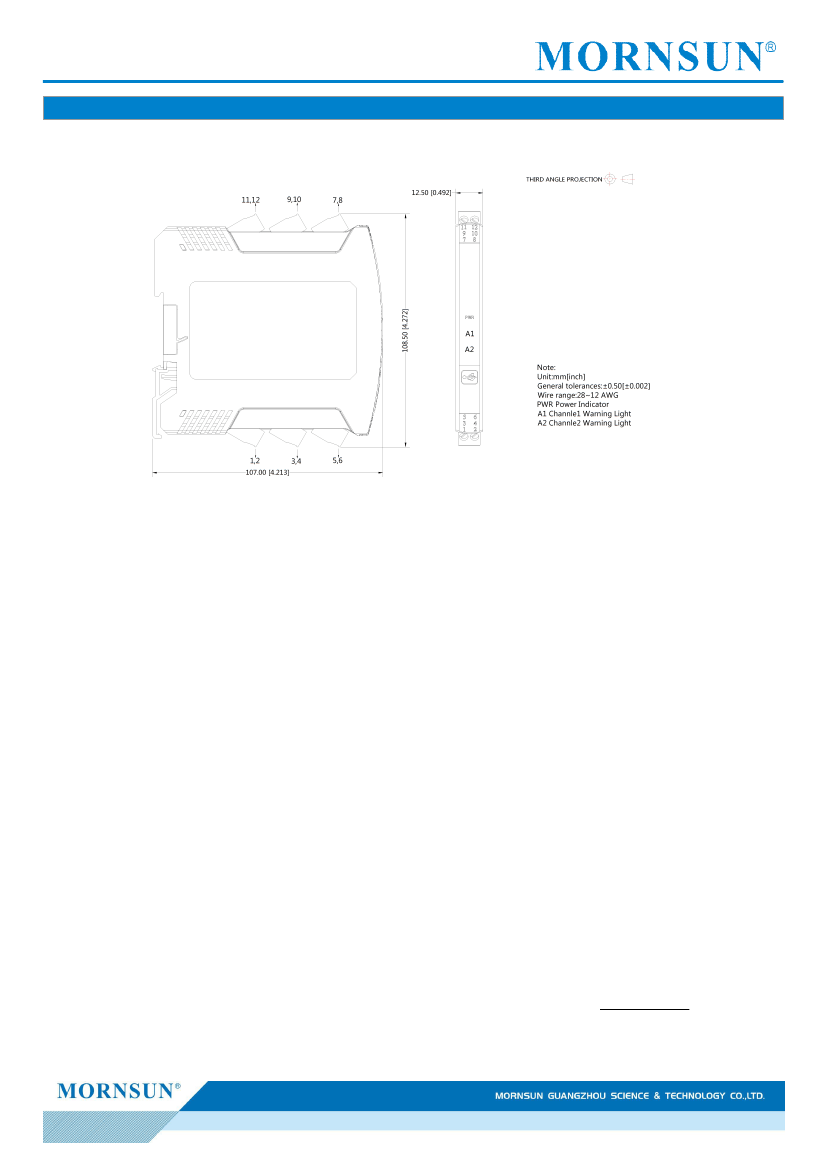

Dimensions
Note:
1.
2.
3.
4.
5.
6.
Packing information please refer to "Product Packing Information".Packing bag number: 58040010;
Unless otherwise specified, parameter indexes in this datasheet is measured under the conditions of Ta=25
°
C, humidity<75% with
nominal input voltage and rated output load;
All testing methods in this datasheet are based on our Company’s corporate standards;
The parameter indexes above are for the modules listed in this datasheet, for non-standard module's parameter indexes, please
contact our technicians for specific information;
We can provide custom design;
Specifications are subject to change without prior notice.
Mornsun Guangzhou Science & Technology Co., Ltd.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail: info@mornsun.cn
2014.02.18-A/2
Page 5 of 5
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
