500T011E25B08-12

Description
Connector Accessory
CategoryThe connector    Connector bracket
File Size247KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric Compare View All

500T011E25B08-12 Overview

Connector Accessory

500T011E25B08-12 Parametric

Parameter NameAttribute value
Objectid7019171970
Reach Compliance Codecompliant

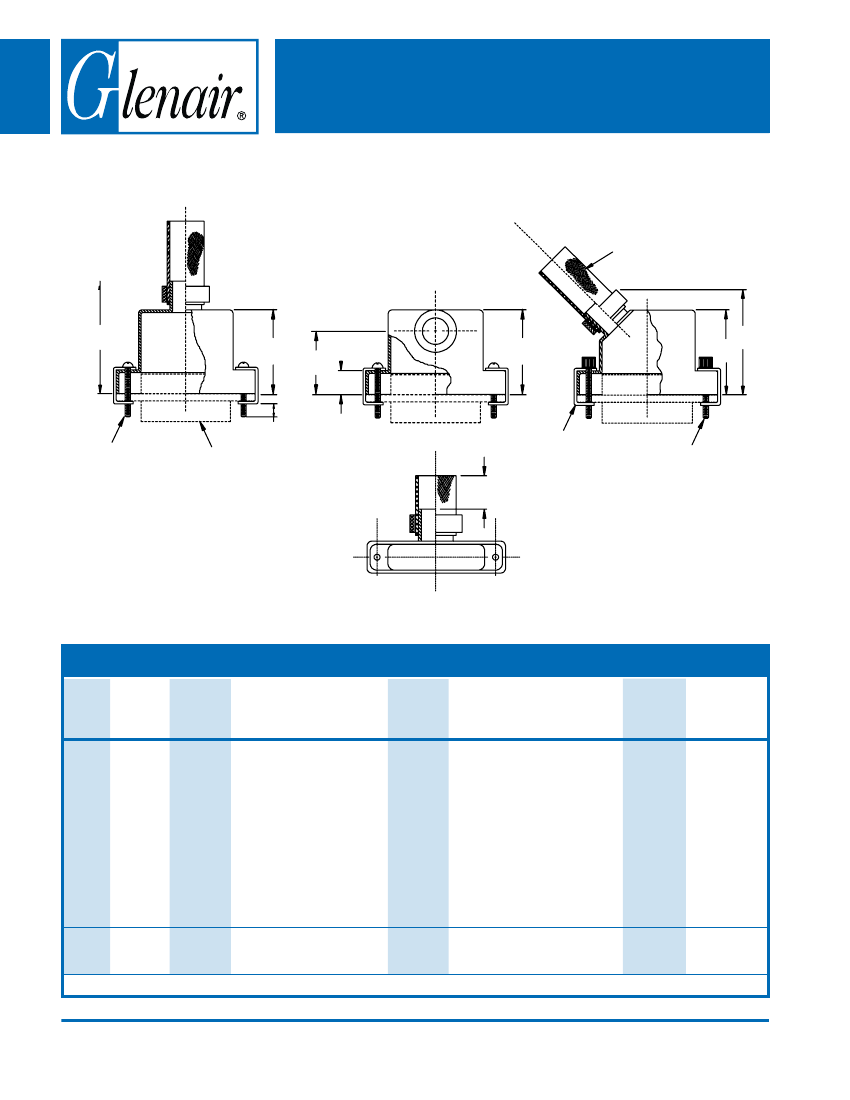

MIL-DTL-83513
Micro-D
500-011
EMI/RFI Micro-D Backshell
with shield sock
sTYLE T - ToP ENTRY
L
sTYLE s - sIDE ENTRY
sTYLE E - 45° ENTRY
Shield Sock:
Single Layer
K
D
E
F
G
M
H
Jackscrew
Fillister
Head
Option B
J Thread
Connector
Shown for
Reference
.175 (4.4)
Retaining
LENGTH
Jackscrew Hex
B
Metric dimensions (mm) are
indicated in parentheses.
C
HoW To oRDER
Cable
Entry
style
T
– Top
s
– Side
E
– 45°
Basic
Part
Number
011
shell*
Plating
C
– Black Anodize
E
– Chem. Film
J
– Gold Iridite Over
Cadmium Over
Electroless Nickel
M
– Electroless Nickel
NF
– Cadmium, Olive
Drab Over
Electroless Nickel
z 2
– Gold
M
shell
size
(Table I)
9
15
21
25
31
37
51
100
Hardware options *
B
– (2) Male Fillister
Head Jackscrews
H
– (2) Male Hex Socket
F
– (2) Female Jackpost
FB
– (1) Female Jackpost
And (1) Male
Jackpost
FH
– (1) Female Jackpost
and (1) Male Hex
Socket
B
Cable
Entry
(Table II)
04
05
06
07
08
09
10
11
12
shield
sock
Length
Length
in 1 inch
increments
(e.g. 6 = 6
inches)
series
500
Sample Part Number:
T
011
500
© 2011 Glenair, Inc.
21
CAGE Code 06324
06
6
* sEE PAGE C-4 FoR CoMPLETE INFoRMATIoN
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-18

500T011E25B08-12 Related Products

500T011E25B08-12 500S011Z225B12-12
Description Connector Accessory Connector Accessory
Objectid 7019171970 7019171926
Reach Compliance Code compliant compliant
