284180 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 284180

284180: Description128 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size361KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

284180 Overview

128 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

284180 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612, IEC 60603-2
body width	0.52 inch
subject depth	0.457 inch
body length	3.346 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7784 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	284180
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
Base Number Matches	1

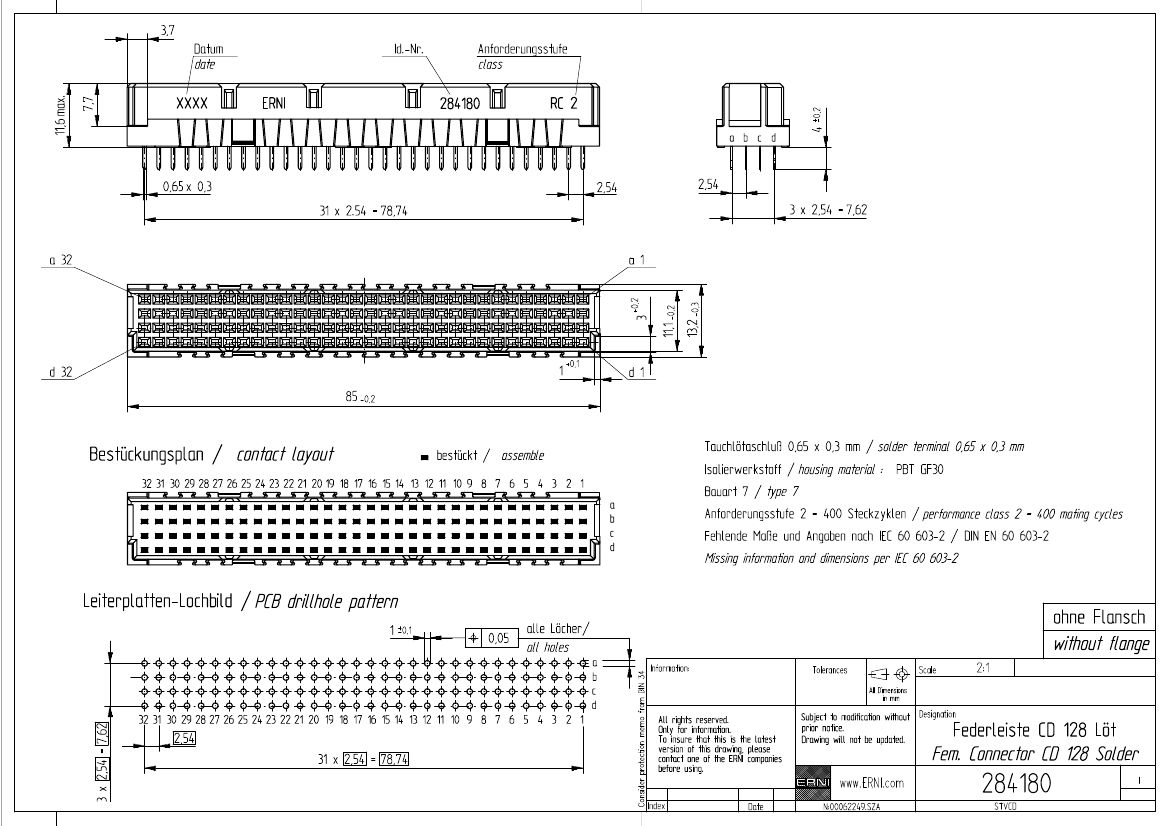

Preview

Download Datasheet
