F_RN-1W & F_RT-1W Series
1W, FIXED INPUT,3000V ISOLATED & UNREGULATED
SINGLE OUTPUT, DC-DC CONVERTER
RoHS
FEATURES
●
Small Footprint, Ultra-thin package
●
3KVDC Isolation
●
Temperature Range: -40°C ~ +85°C
●
No Heatsink Required
●
High Power Density
●
No External Component Required
●
Industry Standard Pinout
●
Compatible with DCP01 Series
●
Short Circuit Protection
●
RoHS Compliance
PRODUCT PROGRAM
Input
Part
Number
F0505RN-1W
F0505RT-1W
Voltage (VDC)
Nominal
5
Range
4.5-5.5
Voltage
(VDC)
5
Output
Current (mA)
Max.
200
Min.
20
74
DIP
SMD
Efficiency Package
(%, Typ.)
Style
APPLICATIONS
The F_RN-1W & F_RT-1W series are specially
designed for applications where a group of polar
power supplies are isolated from the input power
supply in a distributed power supply system on a
circuit board.
These products apply to:
1) Where the voltage of the input power supply
is fixed (voltage variation
≤ ±10%);
2) Where isolation is necessary between input
and output (isolation voltage
≤3000VDC);
3) Where the regulation of the output voltage
and
the
output
ripple
noise
are
not
demanding.
Such as: purely digital circuits, ordinary low
frequency analog circuits, and IGBT power
device driving circuits.
COMMON SPECIFICATIONS
Item
Storage humidity
Operating temperature
Storage temperature
Temp. rise at full load
Lead temperature
Short circuit protection
Cooling
Package material
MTBF
Weight
1.5mm from case for 10 seconds
-40
-55
15
Test Conditions
Min.
Typ.
Max.
95
85
125
25
250
Continuous, auto-recovery
Free air convection
Epoxy Resin (UL94-V0)
3500
1.4
k hours
g
°C
Units
%
OUTPUT SPECIFICATIONS
Item
Test Conditions
Min.
0.1
For Vin change of 1%
10% to 100% load
12.8
Typ.
Max.
1
±1.2
15
±0.03
20
50
100
75
kHz
Units
W
%
MODEL SELECTION
Output power
Line regulation
F0505RN-1W
Rated Power
Package Style
Output Voltage
Input Voltage
Product Series
Load regulation
Output voltage accuracy
Temperature drift
Ripple &Noise*
Switching frequency
See tolerance envelope graph
Nominal input,100% full load
20MHz bandwidth 50% load
Nominal input
100% load
Full load, nominal input
%/°C
mVp-p
MORNSUN Science & Technology Co.,Ltd.
Address: No. 5, Kehui St. 1, Kehui development
center, Science Ave., Guangzhou Science City,
Luogang district, Guangzhou,P.R.China.
Tel: 86-20-38601850
Fax:86-20-38601272
Http://www.mornsun-power.com
*Test ripple and noise by
“parallel
cable” method. See detailed operation instructions at Testing of Power
Converter section, application notes.
The copyright and authority for the interpretation of the products are reserved by MORNSUN
Specifications subject to change without notice.
F_RN-1W&F_RT-1W
B/2-2012
Page 1 of 3
ISOLATION SPECIFICATIONS
Item
Isolation voltage
Isolation resistance
Isolation capacitance
Test Conditions
Tested for 1 minute and 1mA max
Test at 500VDC
Min.
3000
1000
15
Typ.
Max.
Units
VDC
MΩ
pF

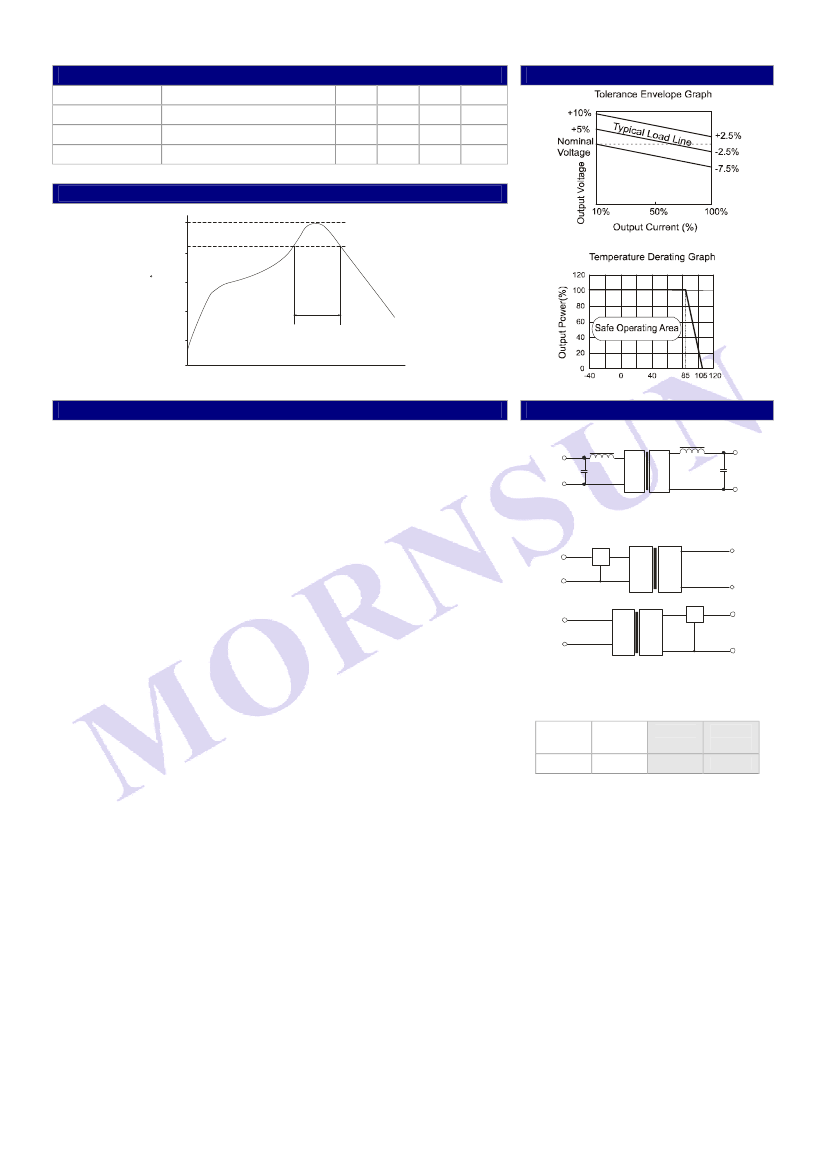

TYPICAL CHARACTERISTICS
RECOMMENDED REFLOW SOLDERING PROFILE
25 0
Te m p e r a t u r e (
o
C )
20 0
15 0
10 0
50
0
Tim e ( s ec . )
Remark: The curve applies only to the hot air reflow soldering
Operating Temp.(
o
C)
25 0 C
10 Sec M ax
o
22 0 C
o
90 S ec M ax
o
( > 22 0 C )
APPLICATION NOTE
1) Requirement on output load
To ensure this module can operate efficiently and reliably, During operation, the minimum
output load
could not be less than 10% of the full load.
If the actual output power is very
small, please connect a resistor with proper resistance at the output end in parallel to
increase the load, or use our company’s products with a lower rated output power.
RECOMMENDED CIRCUIT
L
Vin
Cin
GND
L
+Vo
DC DC
Cout
0V
(Figure 1)
2) Recommended testing circuit
If you want to further decrease the input/output ripple, an
“LC”
filtering network may be
connected to the input and output ends of the DC/DC converter, see (Figure 1).
It should also be noted that the inductance and the frequency of the
“LC”
filtering network
should be staggered with the DC/DC frequency to avoid mutual interference. However, the
capacitance of the output filter capacitor must be proper. If the capacitance is too big, a
startup problem might arise. For every channel of output, provided the safe and reliable
operation is ensured, the greatest capacitance of its filter capacitor sees (Table 1).
(Figure2)
3) Output Voltage Regulation and Over-voltage Protection Circuit
The simplest device for output voltage regulation, over-voltage and over-current
protection is a linear voltage regulator with overheat protection that is connected to the
input or output end in series (Figure2).
Vin
GND
REG
Vin
GND
REG
+Vo
DC DC
0V
+Vo
DC DC
0V
EXTERNAL CAPACITOR TABLE (TABLE 1)
Vin
(VDC)
5
Cin
(µF)
4.7
Vout
(VDC)
5
Cout
(µF)
10
4) Overload Protection
Under normal operating conditions, the output circuit of these products has no protection
against over load. The simplest method is to connect a self-recovery fuse in series at the
input end or add a circuit breaker to the circuit.
It’s not recommended to connect any external
capacitor in the application field with less than 0.5
watt output.
4) No parallel connection or plug and play
The copyright and authority for the interpretation of the products are reserved by MORNSUN
Specifications subject to change without notice.
F_RN-1W&F_RT-1W
B/2-2012
Page 2 of 3

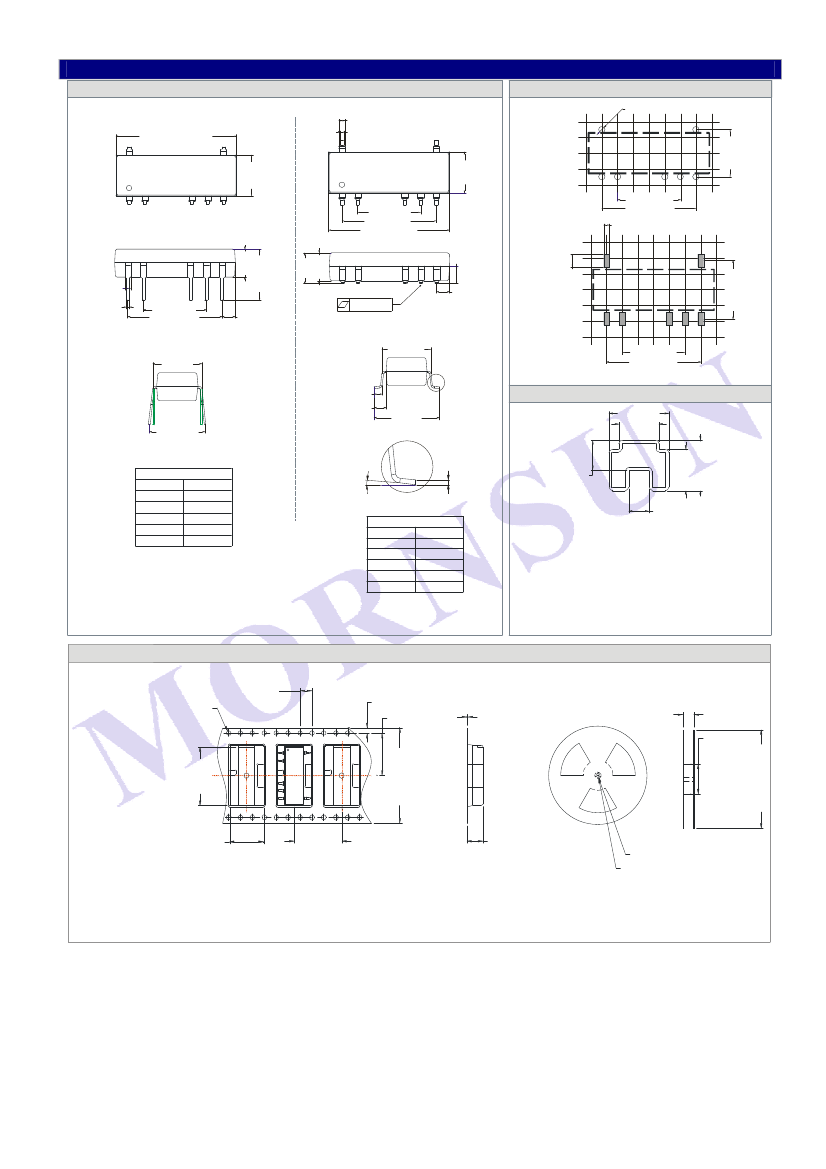

OUTLINE DIMENSIONS & FOOTPRINT DETAILS
MECHANICAL DIMENSIONS
F_RT-1W S eries
F_RN-1W Series
19.50±0.50
[0.768±0.020]
1.00±0.10[0.039±0.004]
0.50±0.10[0.020±0.004]
RECOMMENDED FOOTPRINT
∅
1.00[0.039]
F_RN-1W
14
6.60
[0.260]
8
2
5
6
7
6.60
[0.260]
14
(Top View)
1
2
5
6
8
7
14
(Top View)
1
2
5
10.16[0.400]
15.24[0.600]
19.50±0.50
[0.767±0.020]
5.00
[0.200]
4.50
[0.177]
8
6
7
1
10.16[0.400]
15.24[0.600]
1.00 [0.039]
2.88
[0.113]
F_RT-1W
(Front View)
4.50
[0.177]
8.75
max
[0.344]
(Front View)
2.10[0.083]
1.00±0.10
[0.039±0.004]
0.5±0.10
[0.02±0.004]
10.16[0.400]
15.24[0.600]
0.10[0.004 ]
2.13±0.20
[0.084±0.008]
2.13±0.20
[0.080
±0.008
]
1
2
5
6
7
(Side View)
7.97±0.20
[0.314±0.008]
10.16 [0.400]
15.24 [0.600]
(Side View)
7.97±0.20
[0.314±0.008]
A
1.32±0.20
[0.052±0.008]
1.97±0.20
[0.077±0.008]
9.50
max
[0.374]
注:栅 格距 离为
2.54*2.54mm.
TUBE OUTLINE DIMENSIONS
0.25±0.20
[0.010±0.008]
10.53±0.30
[0.415±0.012]
13.20 [0.520]
8.70 [0.343]
A
0~
5
°
FOOTPRINT DETAILS
Pin
1
2
5
6
Others
Function
Vin
GND
0V
+Vo
NC
6.40 [0.252]
NC:No connection
Note:
Unit:mm[inch]
Pin section tolerances:± 0.10mm[± 0.004inch]
General tolerances:± 0.25mm[± 0.010inch]
FOOTPRINT DETAILS
Pin
Function
1
Vin
2
GND
5
0V
6
+Vo
Others
NC
Note:
5.00 [0.197]
Unit:mm[inch]
General tolerances:± 0.50mm[± 0.020inch]
L=530mm[20.866inch] Devices per tube quantity : 26pcs
L=220mm[8.661inch]
Devices per tube quantity: 10pcs
Short tube inner package dimensions:
L*W*H=255*170*80mm
Short tube outer package dimensions(with six inner package boxes):
L*W*H=375*280*270mm
Long tube inner package dimensions: L*W*H=580*200*100mm
Long tube outer package dimensions(with two inner package boxes):
L*W*H= 600*215*220mm
Long tube outer package dimensions(with three inner package boxes):
L*W*H=600*215*325mm
TAPING REEL DIMENSIONS
4.00[0.157]
∅
1.50[0.059]
1.75[0.069]
14.20[0.559]
0.40[0.016]
37.40[1.472]
8.60 [0.339]
10.50 [0.413]
100.00
[3.937]
9.44[0.372]
14
8
7.62[0.300]
11.35[0.447]
16.00
[0.630]
∅
13.00[0.512]
Note:
Unit: mm[inch]
General Tolerances:±0.5mm [
±
0.02inch]
Note:
Unit:mm[inch]
General tolerances:
±
0.50mm[
±
0.020inch]
Per reel of packing quantity:500PCS
Inner package carton dimensions: L*W*H=365*350*105mm
Tube quantity:1000pcs
Outer package carton dimensions: L*W*H=390*360*245mm
Tube quantity:2000pcs
∅
21.50[0.846]
Note:
1. Operation under minimum load will not damage the converter; However, they may not meet all specification listed, and that will reduce the life
of product.
2. All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.
3. Only typical models listed, other models may be different, please contact our technical person for more details.
4. In this datasheet, all the test methods of indications are based on corporate standards.
The copyright and authority for the interpretation of the products are reserved by Mornsun
Specifications subject to change without notice.
F_RN-1W&F_RT-1W
B/2-2012
Page 3 of 3
330.00[12.992]
32.00[1.260]
19.70
[0.776]
