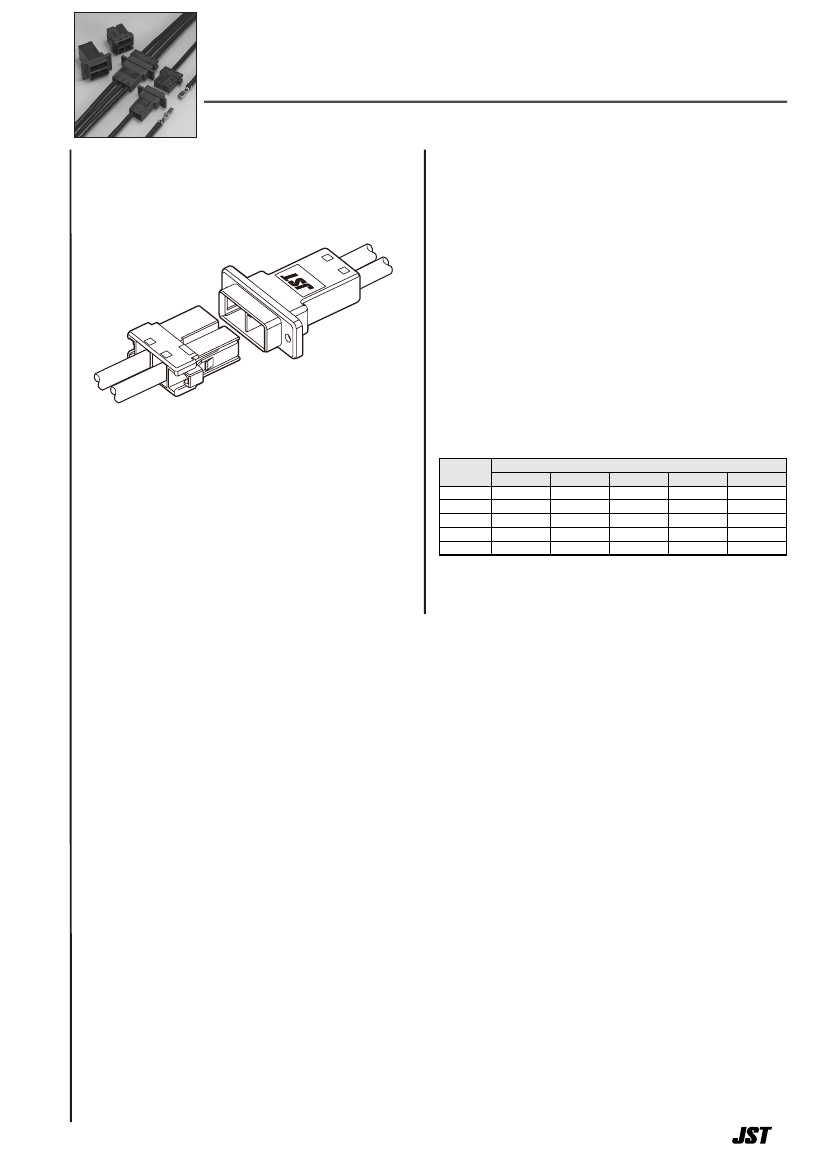

11.0mm pitch/Disconnectable Crimp style Wire-to-wire connectors
JFA
CONNECTOR J5000
SERIES
1
2
Specifications –––––––––––––––––––
• Current rating: Refer to the following matrix table.
• Voltage rating: 600V AC, DC
• Temperature range: -55°C to +105°C
(including temperature rise in applying
electrical current)
• Withstanding voltage: 3.0kV AC/minute
• Applicable wire: AWG #16 to #8 (1.25 to 8.0mm
2
)
*Contact JST for details.
*Compliant with RoHS.
Current rating
Circuits
1
2
3
4
6
#8
50
45
43
42
40
#10
37
34
34
32
32
Wire size (AWG)
#12
30
28
27
26
26
#14
24
22
21
20
20
Unit: A
#16
20
18
17
16
16
One touch mating and unmating connector
corresponding to high current. Modular
type is also available.
• High current capacity
• Easy mating connector
1
J
S
T
2
Standards ––––––––––––––––––––––
0
Recognized E60389
1
JFA CONNECTOR/J5000 SERIES

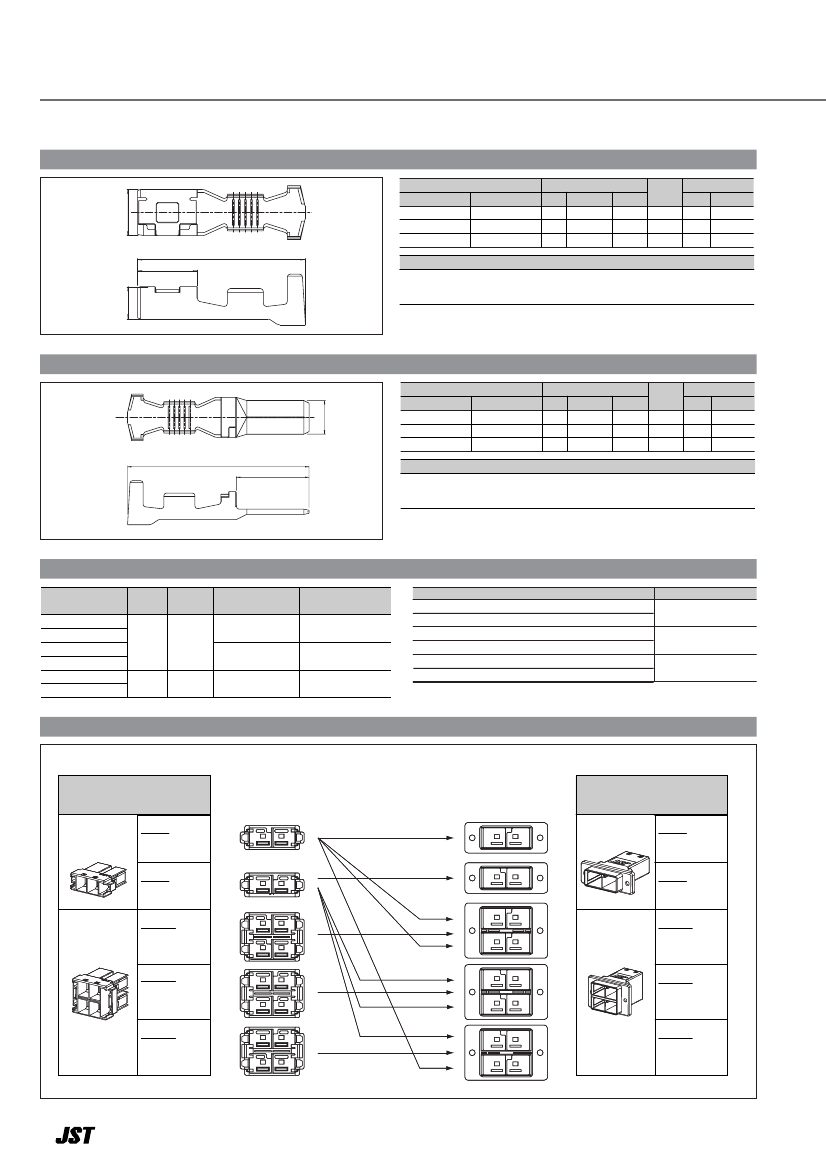

Receptacle contact
Model No.
Applicable wire
Strip contact
Loose piece Nominal
mm
2
AWG#
SJ5F-71GF-M6.5 BJ5F-71GF-M6.5
S
1.25∼2.0 16∼14
SJ5F-81GF-M6.5 LJ5F-81GF-M6.5
M
3.5
∼5.5
12∼10
SJ5F-91GF-M6.5 LJ5F-91GF-M6.5
8.0
8
L
28.0
10.0
Q’ty
Insulation O.D.
(mm)
reel Box(Loose piece)
3.1∼4.0 800
200
4.0∼5.3 600
150
7.2∼8.2 450
100
7.7
Material and Finish
Copper alloy (superior conductivity), nickel-undercoated, selective gold-plated
5.4
J ST 2
RoHS compliance
Tab contact
Model No.
Applicable wire
Strip contact
Loose piece Nominal
mm
2
AWG#
SJ5M-71GF-M6.5 BJ5M-71GF-M6.5
S
1.25∼2.0 16∼14
SJ5M-81GF-M6.5 LJ5M-81GF-M6.5
M
3.5
∼5.5
12∼10
SJ5M-91GF-M6.5 LJ5M-91GF-M6.5
8.0
8
L
Material and Finish
Copper alloy (superior conductivity), nickel-undercoated, selective gold-plated
J ST
2
Q’ty
Insulation O.D.
(mm)
reel Box(Loose piece)
3.1∼4.0 800
200
4.0∼5.3 600
150
7.2∼8.2 450
100
35.0
14.0
6.5
RoHS compliance
Crimping machine, Applicator
Strip contact
Model No.
SJ5F-71GF-M6.5
SJ5M-71GF-M6.5
SJ5F-81GF-M6.5
SJ5M-81GF-M6.5
SJ5F-91GF-M6.5
SJ5M-91GF-M6.5
Crimping Crimp
machine applicator
Dies
Crimp applicator
with dies
Loose piece
BJ5F-71GF-M6.5
BJ5M-71GF-M6.5
LJ5F-81GF-M6.5
LJ5M-81GF-M6.5
LJ5F-91GF-M6.5
LJ5M-91GF-M6.5
Hand crimp tools
YRF-888
MK/SJ5F/M-71-65 APLMK SJ5F/M71-65
AP-K2N MKS-L-J5
MK/SJ5F/M-81-65 APLMK SJ5F/M81-65
AP-K6A MKS-L-J5L MK/SJ5F/M-91-65 APLMK SJ5F/M91-65
YRF-889
Battery operated type
*
BCT-860JFA
• Extraction tool for J5000 series: EJ-JFAJ5
*Contact JST for details.
List of combinations
The combination of the J5200 series.
Receptacle housing
Single-row
2, 3 circuits
(J5200S)
X type
J5FS-■■V-KX
Y type
J5FS-■■V-KY
X
Y
Tab housing
Single-row
2, 3 circuits
(J5200S)
X type
J5MSP-■■V-KX
Y type
Panel mounting type
X
J5MSP-■■V-KY
XX type
J5MMP-■■V-KXX
Double-row
4, 6 circuits
(J5200M)
XX type
X
J5FM-■■V-KXX
Double-row
4, 6 circuits
(J5200M)
YY type
J5FM-■■V-KYY
Y
YY type
J5MMP-■■V-KYY
Y
XY type
J5FM-■■V-KXY
Note: Number of circuits is indicated in
■■
.
Y
Panel mounting type
XY type
J5MMP-■■V-KXY
X
2
J5000 SERIES/J5200
Receptacle housing
Circuits Keying
Series name
Model No.
J5FS-02V-KX
J5FS-02V-KY
J5FS-03V-KX
J5FS-03V-KY
J5FM-04V-KXX
J5FM-04V-KYY
J5FM-04V-KXY
J5FM-06V-KXX
J5FM-06V-KYY
J5FM-06V-KXY
J5FM-10V-KXX
J5FM-10V-KYY
J5FM-10V-KXY
A
11.0
11.0
22.0
22.0
11.0
11.0
11.0
22.0
22.0
22.0
44.0
44.0
44.0
Dimensions (mm)
B
C
D
27.2
27.2
38.2
38.2
27.2
27.2
27.2
38.2
38.2
38.2
60.2
60.2
60.2
37.8
37.8
48.8
48.8
37.8
37.8
37.8
48.8
48.8
48.8
70.8
70.8
70.8
11.5
11.5
11.5
11.5
26.0
26.0
26.0
26.0
26.0
26.0
26.0
26.0
26.0
E
14.1
14.1
14.1
14.1
28.6
28.6
28.6
28.6
28.6
28.6
28.6
28.6
28.6
Q’ty / box
50(bag)
50(bag)
50(bag)
50(bag)
180
180
180
126
126
126
—
—
—
2
Circuit No.
Keying No.
X
Y
X
Y
XX
YY
XY
XX
3
J-5
X
1
(C)
4
B
A
Tab housing (Panel mounting type)
Keying No.
Series name
J-5200
1
C
X
D
A
B
2
2-
φ3.5
F
E
8.0
22.0
52.0
Keying plug
Model No.: J5KP-VY
10.3
2
JST
6
35
D
YY
XY
XX
10
YY
XY
Material
Glass-filled PBT, UL94V-0, black
RoHS compliance
E
Circuits Keying
2
3
X
Y
X
Y
XX
4
Circuit No.
Model No.
J5MSP-02V-KX
J5MSP-02V-KY
J5MSP-03V-KX
J5MSP-03V-KY
J5MMP-04V-KXX
J5MMP-04V-KYY
J5MMP-04V-KXY
J5MMP-06V-KXX
J5MMP-06V-KYY
J5MMP-06V-KXY
J5MMP-10V-KXX
J5MMP-10V-KYY
J5MMP-10V-KXY
A
11.0
11.0
22.0
22.0
11.0
11.0
11.0
22.0
22.0
22.0
44.0
44.0
44.0
Dimensions (mm)
E
B
C
D
31.4
31.4
42.4
42.4
31.4
31.4
31.4
42.4
42.4
42.4
64.4
64.4
64.4
40.2
40.2
51.2
51.2
40.2
40.2
40.2
51.2
51.2
51.2
73.2
73.2
73.2
49.0
49.0
60.0
60.0
49.0
49.0
49.0
60.0
60.0
60.0
82.0
82.0
82.0
14.1
14.1
14.1
14.1
28.6
28.6
28.6
28.6
28.6
28.6
28.6
28.6
28.6
F
18.1
18.1
18.1
18.1
32.6
32.6
32.6
32.6
32.6
32.6
32.6
32.6
32.6
Q’ty /
box
40(bag)
40(bag)
40(bag)
40(bag)
72
72
72
63
63
63
—
—
—
YY
XY
XX
6
YY
XY
XX
10
YY
XY
Material
Glass-filled PBT, UL94V-0, black
RoHS compliance
12.9
4.9
37.2
RoHS compliance
7.7
3
JFA CONNECTOR/J5000 SERIES
Panel layout
Circuits
A
±
0.2
A
15.1
15.1
29.6
29.6
29.6
Dimensions (mm)
B
40.2
51.2
40.2
51.2
65.4
C
32.4
43.4
32.4
43.4
73.2
2
3
4
6
10
φ3.5
+
0.2
0
C
±
0.2
B
±
0.2
Model number identification
Receptacle contact
S J5 F - 71 GF - M 6.5
Tab contact
S J5 M - 71 GF - M 6.5
Form: S...Strip form, B...Loose piece
L...Loose piece with curled barrels
Series name
Kind of terminal: F...Receptacle contact
Applicable wire: 71...AWG #16
∼
#14, 81...AWG #12
∼
#10,
91...AWG #8
Surface finish: GF...Nickel-undercoated, selective gold-plated
Meterial: M...Copper alloy
Terminal size
Form: S...Strip form, B...Loose piece
L...Loose piece with curled barrels
Series name
Kind of terminal: M...Tab contact
Applicable wire: 71...AWG #16
∼
#14, 81...AWG #12
∼
#10,
91...AWG #8
Surface finish: GF...Nickel-undercoated, selective gold-plated
Meterial: M...Copper alloy
Terminal size
Receptacle housing
J5 F S - 02 V - K X
Tab housing
J5 M S P - 02 V - K X
Series name
Series name
Type of connector: F...Receptacle housing
Rows: S....Single-row,
No. of circuts: 2, 3, 4, 6
Flammability: UL94V-O
Color indication: K...Black
Keying: X...X-Keying, Y...Y-Keying, XX...XX-Keying
YY...YY-Keying, XY...XY-Keying
M...Double-row modular type
Kind of terminal: M...Tab housing
Rows: S....Single-row, M...Double-row modular type
Configuration: P...Panel type
No. of circuts: 2, 3, 4, 6
Flammability: UL94V-O
Color indication: K...Black
Keying: X...X-Keying, Y...Y-Keying, XX...XX-Keying
YY...YY-Keying, XY...XY-Keying
4
