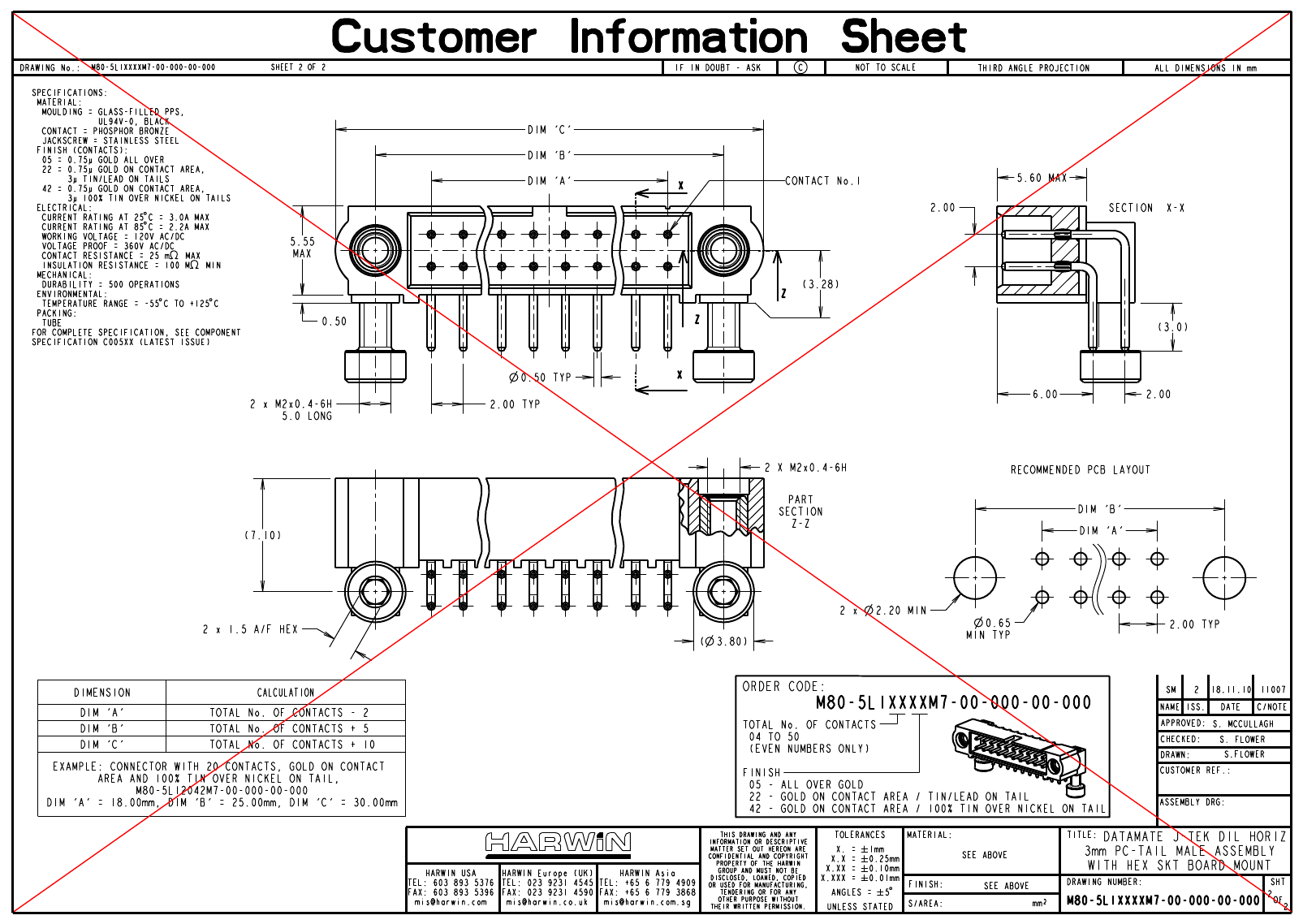

M80-5L12805M7-00-000-00-000: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Black Insulator, Socket; CategoryThe connector The connector; File Size550KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5L12805M7-00-000-00-000 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Black Insulator, Socket

M80-5L12805M7-00-000-00-000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1029468353
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	HOLE .086-.098
body width	0.238 inch
subject depth	0.315 inch
body length	1.496 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M80-5L1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

OBSOLETE

M80-5L12805M7-00-000-00-000 Related Products

	M80-5L12805M7-00-000-00-000	M80-5L12822M7-00-000-00-000	M80-5L12842M7-00-000-00-000
Description	Board Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Black Insulator, Socket	Board Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Black Insulator, Socket	Board Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Black Insulator, Socket
Is it Rohs certified?	conform to	incompatible	conform to
Objectid	1029468353	1029468354	1029468355
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.238 inch	0.238 inch	0.238 inch
subject depth	0.315 inch	0.315 inch	0.315 inch
body length	1.496 inch	1.496 inch	1.496 inch
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	Gold (Au)	Tin/Lead (Sn/Pb)	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4	e0	e3
MIL compliance	NO	NO	NO
Manufacturer's serial number	M80-5L1	M80-5L1	M80-5L1
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO
Installation option 1	M2	M2	M2
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	28	28	28
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N
Other features	ROHS COMPLIANT	-	ROHS COMPLIANT
