F Series
Vishay BCcomponents
Ceramic Disc Capacitors Class 2,
Low Loss (0.2 %), 500 V
DC
, 1 kV
DC
, 2 kV
DC
and 3 kV
DC
D
D
FEATURES
•
•
•
•
•
High reliability
Low losses
High capacitance in small size
Kinked leads
Compliant to RoHS directive 2002/95/EC
tangent
line
SH
tangent
line
SH
APPLICATIONS
In electronic circuits where low losses and high capacitance
per volume are essential, for example:
• SMPS
• HF ballast
• Snubber and high voltage circuits
F
F
Capacitors with outside and inside kink lead spacing
DESIGN
QUICK REFERENCE DATA
DESCRIPTION
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
CLASS 2 (Y5R)
500, 1000, 2000, 3000
100
4700
Through hole
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm or 0.8 mm.
The capacitors are supplied with kinked leads and lead
spacings of 5 mm or 7.5 mm and 10 mm. Encapsulation is
made of epoxy-resin, flammable resistant in accordance with
“UL 94 V-0”
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198” and voltage marks.
CAPACITANCE RANGE
100 pF to 4700 pF
OPERATING TEMPERATURE RANGE
- 30 °C to + 125 °C
RATED DC VOLTAGE
500 V; 1 kV; 2 kV; 3 kV
TEMPERATURE COEFFICIENT Y5R (2C4)
- 30 °C TO + 85 °C
± 15 %
DIELECTRIC STRENGTH
200 % of rated voltage
INSULATION RESISTANCE AT 500 V
DC
≥
10 000 MΩ min.
SECTIONAL SPECIFICATIONS
IEC 60384-9, EIA 198
TOLERANCE ON CAPACITANCE
± 10 %; ± 20 %
Disc size (D
max.
)
≥
7.
5 mm:
BC
RP
102K
3 kV
EXAMPLES OF MARKING CODE
Disc size (D
max.
)
≤
6.5 mm:
RP = low loss with T.C. Y5P
101K
2 kV
DISSIPATION FACTOR
0.2 % max.
AGING
typical 0.5 % per time decade
Note
The capacitors meet the essential requirements of “IEC 60384-9 and EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 °C ± 3 °C, at normal atmospheric conditions
www.vishay.com
66
For technical questions, contact:
CDC@vishay.com
Document Number: 28500
Revision: 07-Jan-10
F Series
Ceramic Disc Capacitors Class 2,
Low Loss (0.2 %), 500 V
DC
, 1 kV
DC
,
2 kV
DC
and 3 kV
DC
ORDERING INFORMATION
CLEAR TEXT CODE
C
(pF)
500 V
100
120
150
180
220
270
330
390
470
560
680
820
1000
500 V
1200
1500
1800
2200
2700
1 kV
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
2 kV
100
120
150
180
220
270
330
390
470
560
TOL.
(%)
D
MAX.
(mm)
LEAD SPACING
(mm)
SH
(1)
(mm)
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
16
TH
DIGIT:
R = RoHS COMPLIANT
F101K20Y5RL6.J5.
F121K20Y5RL6.J5.
F151K20Y5RL6.J5.
F181K20Y5RL6.J5.
F221K20Y5RL6.J5.
F271K20Y5RL6.J5.
F331K20Y5RL6.J5.
F391K25Y5RL6.J5.
F471K25Y5RL6.J5.
F561K25Y5RL6.J5.
F681K25Y5RL6.J5.
F821K29Y5RL6.J5.
F102K29Y5RL6.J5.
F122K33Y5RL6.J5.
F152K33Y5RL6.J5.
F182K39Y5RL6.J5.
F222K39Y5RL6.J5.
F272K47Y5RL63J7.
F101K25Y5RN6.J5.
F121K25Y5RN6.J5.
F151K25Y5RN6.J5.
F181K25Y5RN6.J5.
F221K25Y5RN6.J5.
F271K29Y5RN6.J5.
F331K29Y5RN6.J5.
F391K29Y5RN6.J5.
F471K29Y5RN6.J5.
F561K33Y5RN6.J5.
F681K33Y5RN6.J5.
F821K39Y5RN6.J5.
F102K39Y5RN6.J5.
F122K43Y5RN6.J5.
F152K43Y5RN6.J5.
F182K47Y5RN63J7.
F222K53Y5RN63J7.
F272K53Y5RN63J7.
F332K69Y5RN63J7.
F392K69Y5RN63J7.
F472K75Y5RN83J0.
F101K25Y5RP6.K5.
F121K25Y5RP6.K5.
F151K25Y5RP6.K5.
F181K29Y5RP6.K5.
F221K29Y5RP6.K5.
F271K29Y5RP6.K5.
F331K29Y5RP6.K5.
F391K33Y5RP6.K5.
F471K33Y5RP6.K5.
F561K39Y5RP6.K5.
www.vishay.com
67
Vishay BCcomponents
5.0
± 10
6.5
5.0
4.0
7.5
8.5
±
10
5.0
10.0
12.0
7.5
4.0
6.5
7.5
5.0
± 10
8.5
10.0
11.0
12.5
13.5
17.5
19.0
10.0
7.5
4.0
6.5
± 10
7.5
5.0
4.0
8.5
10.0
For technical questions, contact:
CDC@vishay.com
Document Number: 28500
Revision: 07-Jan-10
F Series
Vishay BCcomponents
ORDERING INFORMATION
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
MAX.
(mm)
LEAD SPACING
(mm)
SH
(1)
(mm)
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
16
TH
DIGIT:
R = RoHS COMPLIANT
F681K39Y5RP6.K5.
F821K43Y5RP6.K5.
F102K43Y5RP6.K5.
F122K47Y5RP63K7.
F152K53Y5RP63K7.
F182K53Y5RP63K7.
F222K69Y5RP63K7.
F272K75Y5RP83K0.
F332K75Y5RP83K0.
F392K75Y5RP83K0.
F472K96Y5RP83K0.
F101K33Y5RR6.K7.
F121K33Y5RR6.K7.
F151K33Y5RR6.K7.
F181K33Y5RR6.K7.
F221K33Y5RR6.K7.
F271K33Y5RR6.K7.
F331K33Y5RR6.K7.
F391K39Y5RR6.K7.
F471K39Y5RR6.K7.
F561K43Y5RR6.K7.
F681K43Y5RR6.K7.
F821K53Y5RR63K7.
F102K53Y5RR63K7.
F122K59Y5RR63K7.
F152K59Y5RR63K7.
F182K75Y5RR83K0.
F222K75Y5RR83K0.
F272K84Y5RR83K0.
Ceramic Disc Capacitors Class 2,
Low Loss (0.2 %), 500 V
DC
, 1 kV
DC
,
2 kV
DC
and 3 kV
DC
2 kV
680
10.0
5.0
4.0
820
11.0
1000
1200
12.0
1500
7.5
13.5
±
10
1800
2200
17.5
4.8
2700
19.0
3300
10.0
3900
24.5
4700
3 kV
100
120
150
8.5
180
220
4.0
270
330
7.5
390
10
470
±
10
560
11
680
820
13.5
1000
1200
15
4.8
1500
1800
19
10.0
2200
2700
21
Notes
(1)
SH
= seated height
• Maximum thickness: 500 V = 3.5 mm; 1 kV = 4.5 mm; 2 kV = 5.0 mm; 3 kV = 6.0 mm
PACKAGING
PACKAGING TYPE
SIZE
CODE
20 to 25
29 to 39
43 to 47
53 to 75
84 to 96
≤
47
≥
53
≤
47
≥
53
LEAD SPACE
(mm)
VOLTAGE
(V
DC
)
SPQ
1000
1000
1000
500
250
2500
2000
1000
1000
1000
2000
2000
1500
1500
1500
BOX DIMENSIONS
LxWxH
Bulk
(long lead L
≥
25.4 mm
all
all
245 x 120 x 65
≤
6.4
≥
7.5
all
≤
6.4
≥
7.5
all
Tape and reel
Ammopack
< 500
500
≤
WV
≤
2000
3000
all
all
< 500
500
≤
WV < 2000
2000 and 3000
all
all
370 x 370 x 60
335 x 240 x 50
335 x 290 x 50
360 x 330 x 55
335 x 290 x 50
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
www.vishay.com
68
For technical questions, contact:
CDC@vishay.com
Document Number: 28500
Revision: 07-Jan-10
F Series
Ceramic Disc Capacitors Class 2,
Low Loss (0.2 %), 500 V
DC
, 1 kV
DC
,
2 kV
DC
and 3 kV
DC
D
P
2
P
Δ
s
ΔP
Δs
ΔP
Δh
Δh
Vishay BCcomponents
H
1
H
0
L
W
1
W
2
W
0
W
A
e
Direction of unreeling
Ød
P
1
F
P
0
D
0
t
1
detail A
t

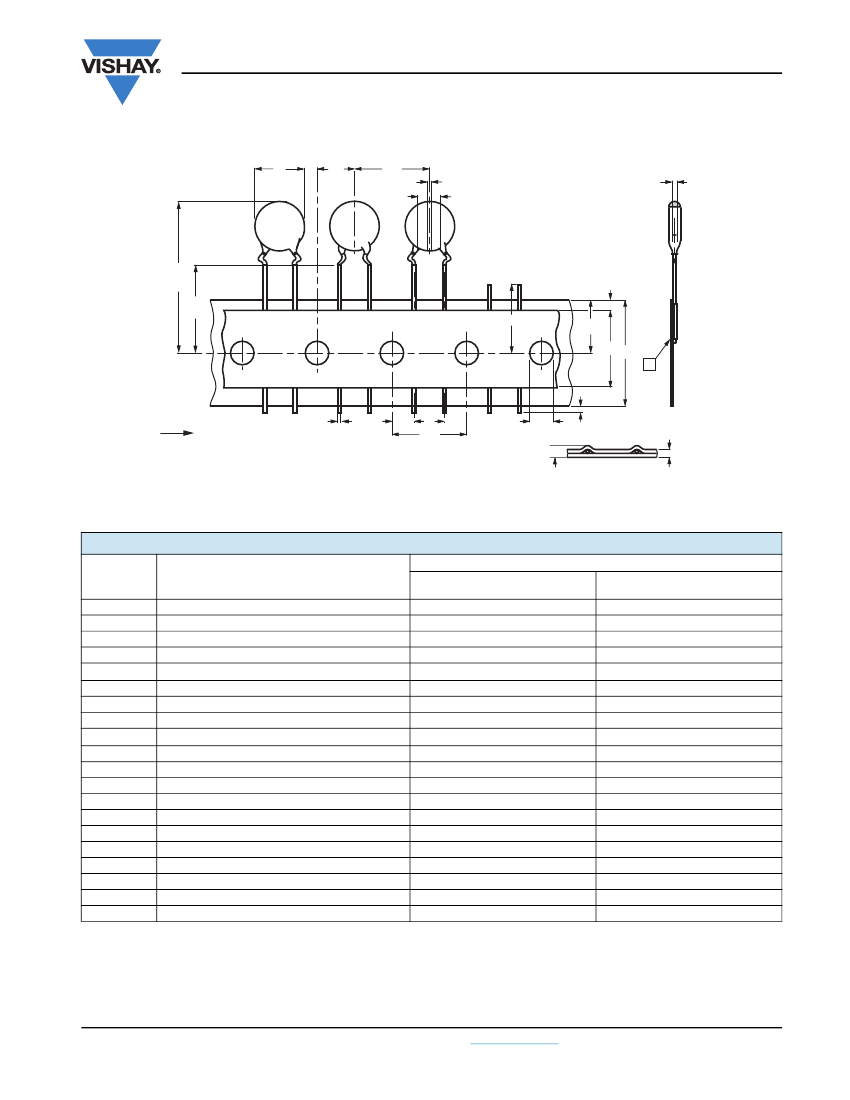

Kinked capacitors on tape, lead
spacing
5.0 mm (0.2") or 7.5 mm (0.3")
DIMENSIONS OF TAPE
SYMBOL
D
d
P
(1)
P
0
ΔP
P
1 (2)
P
2 (2)
F
Δh
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
PARAMETER
Body diameter
Lead diameter
Pitch between capacitors
Feed-hole pitch
Plane deviation
Feed-hole center to lead center
Feed-hole center to component center
Lead spacing
Component alignment
Tape width
Hold-down tape width
Hole position
Hold-down tape margin
Height to seating plane
Maximum component height
Lead end protrusion
Maximum length of snipped lead
Feed-hole diameter
Total tape thickness
Maximum thickness of tape and wires
DIMENSIONS (mm)
FEED-HOLE PITCH
FEED-HOLE PITCH
P
0
= 12.7
P
0
= 15.0
11.0 max.
14.0 max.
0.6 ± 0.05
0.6 ± 0.05
12.7 ± 1.0
15.0 ± 1.0
12.7 ± 0.3
15.0 ± 0.3
1.0 max.
3.85 ± 0.7
6.35 ± 1.3
5.0 + 0.6/- 0.4
0 ± 1.0
18.0 + 1.0/- 0.5
5.0 min.
9.0 + 0.75/- 0.5
3.0 max.
16.0 ± 0.5
32.0
1.0 max.
11.0
4.0 ± 0.2
0.9 max.
1.5 max.
1.0 max.
3.75 ± 0.7
7.5 ± 1.5
7.5 + 0.6/- 0.4
0 ± 1.0
18.0 + 1.0/- 0.5
5.0 min.
9.0 + 0.75/- 0.5
3.0 max.
16.0 ± 0.5
40.0
1.0 max.
11.0
4.0 ± 0.2
0.9 max.
1.5 max.
Notes
(1)
Cumulative pitch error: ±
≤
1 mm/20 pitches
(2)
Obliquity maximum 3°
Document Number: 28500
Revision: 07-Jan-10
For technical questions, contact:
CDC@vishay.com
www.vishay.com
69
F Series
Vishay BCcomponents
Ceramic Disc Capacitors Class 2,
Low Loss (0.2 %), 500 V
DC
, 1 kV
DC
,
2 kV
DC
and 3 kV
DC

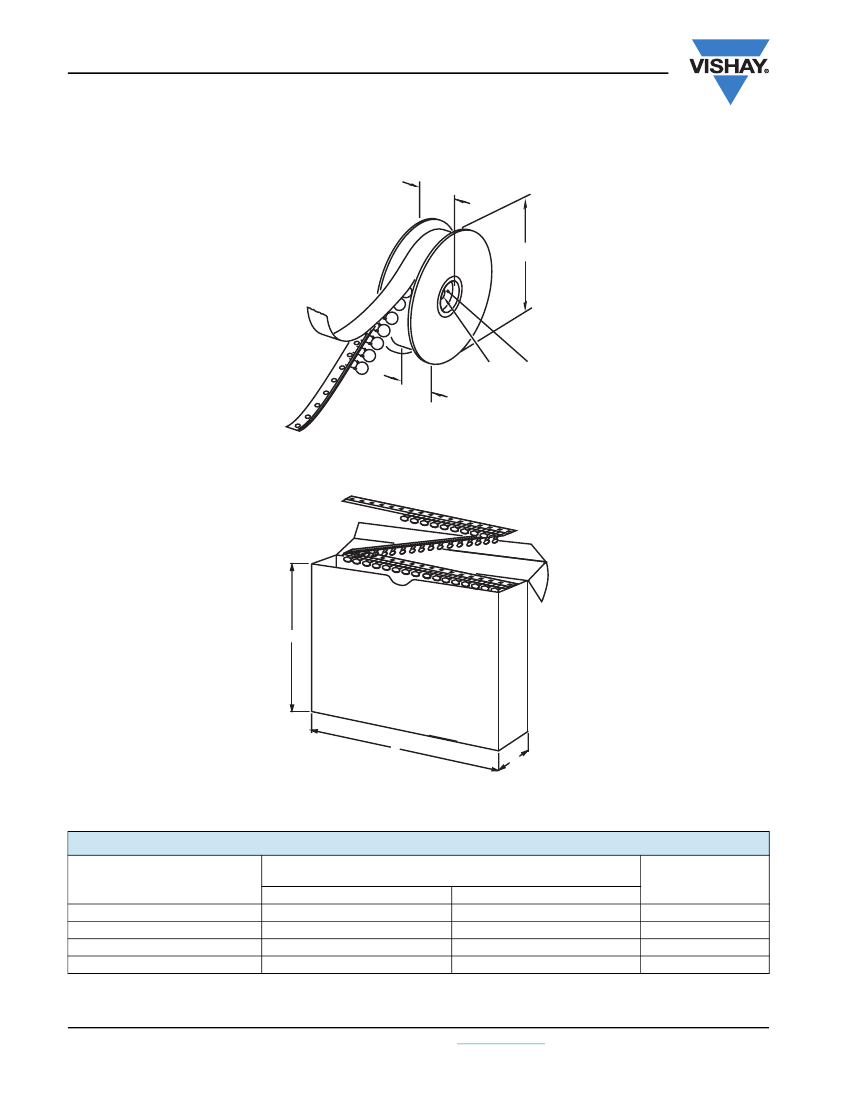

REEL AND TAPE DATA
in millimeters
51 max.
355.6 ± 2.0
28 ± 1.5
8.0
45 max.
Reel with capacitors on tape
W
L
H
Ammopack with capacitors on tape
DIMENSIONS OF AMMOPACK
PARAMETER
6.5 mm to 11.0 mm
Taping pitch
L
W
H
12.7
335
290
50
DISC SIZE
(D
MAX.
)
12.0 mm to 13.5 mm
15.0
360
330
55
mm
mm
mm
mm
UNIT
www.vishay.com
70
For technical questions, contact:
CDC@vishay.com
Document Number: 28500
Revision: 07-Jan-10
