PRODUCT BRIEF:
Logic :: Development Kit
ZOOM SDK
Development Kit
™
By providing a product-ready hardware and software platform,
Logic’s embedded solutions fast forward development and
help you stay focused on your high-value core technologies.
The Zoom
™
Starter Development Kit (SDK) is a low-cost, high-
performance application development kit for evaluating the
functionality of the System on Module (SOM) Card Engine and
associated processor.
Application development is performed right on
the product-ready Card Engine and software
Board Support Packages (BSPs) included in the
kit, which enables you to seamlessly transfer your
application code and hardware into production.
The Card Engine is ideal for applications in the
medical, point-of-sale, industrial, and security
markets. From patient monitoring and medical
imaging, to card payment terminals and bar code
readers, to CCTV cameras and intruder alarms,
the Card Engine allows for powerful versatility and
long-life products.
The Zoom SDK includes the Card Engine,
application baseboard, and accessories required
to immediately begin development work.
ZOOM
™
SDK :: HIGHLIGHTS:
+
Low-cost development kit
+
Includes product-ready Card Engine
+
Compact size
+
Ready to run Board Support
Packages (BSPs)
CARD ENGINE :: BENEFITS:
+
Long product lifecycle
+
Scalability
+
Compact Card Engine form factor
+
See specific SOM product brief for
more information

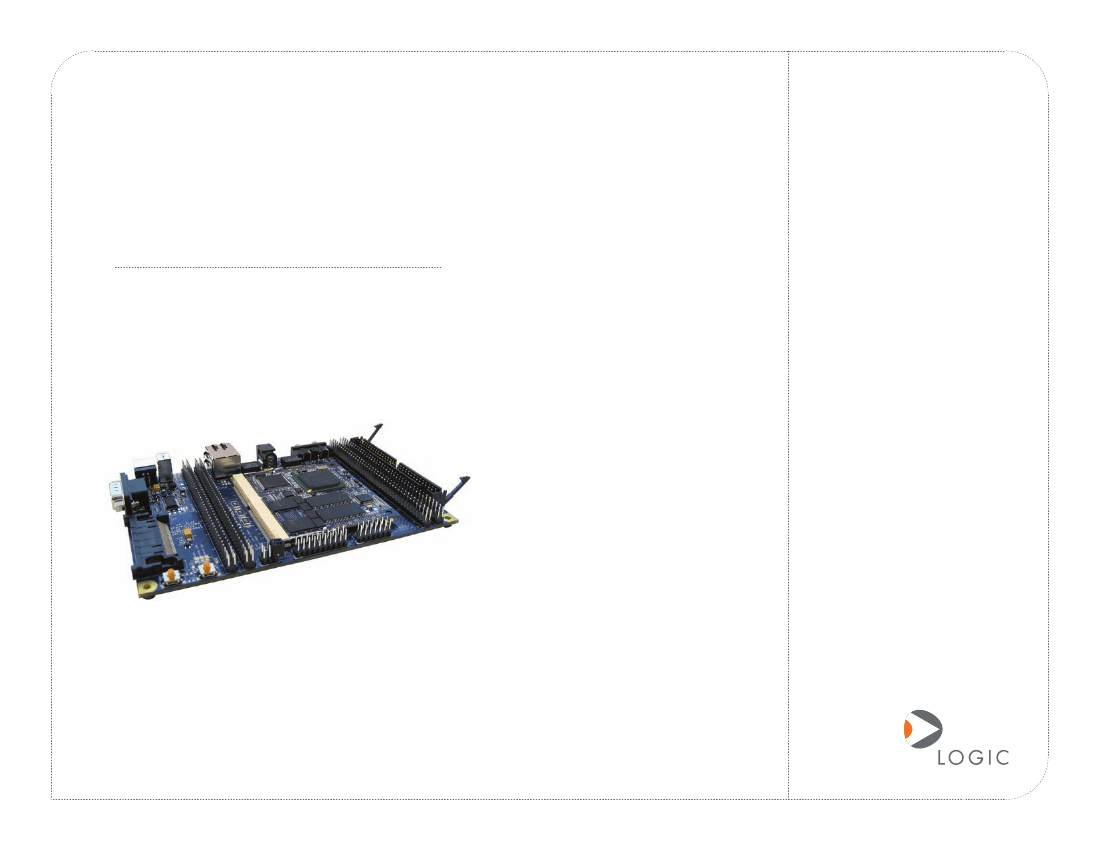

ZOOM
™
SDK WITH CARD ENGINE INCLUDED
ZOOM
™
SDK Ordering Information
Model Number
SDK-PXA270-520-10-6432R
SDK-LH7A404-11-6416R
SDK-LH79524-10-3216R
SDK-LH75401-11-0204
SDK-SH7760-10-6416
1
1
Product Features
Recommended Resale
$499
$399
$389
$299
$449
Card Engine Included
+
Includes
associated SOM Card Engine
LCD Display Connector
+
Integrated LCD, touch, and backlight
connector for Zoom Display Kits
Audio
+
Stereo input and output jacks
Network Support
+
One RJ45 Ethernet jack connector
with magnetics (application/debug)
PC Card Expansion
+
CompactFlash® Type I card (memory-mapped
mode only)
USB
+
One USB 2.0 full-speed host
+
One USB 2.0 full-speed device
Serial Ports
+
115.2kbps RS-232 debug serial port
Expansion Headers
+
Standard 100 mil pitch header
+
Access to all Card Engine signals
Software
+
LogicLoader
™
(bootloader/monitor)
+
Windows® Embedded CE and Linux BSPs
depending on Card Engine support
Cables
+
Serial cable (null-modem)
+
Ethernet crossover cable
+
5 volt power supply (with Europe, Japan, UK,
& US adapters)
Mechanical
+
102 mm wide x 152 mm long x
16.8 mm high
RoHS Compliant
Notes:
2. Exact product features depend upon the
associated SOM.
3. Please refer to the specific SOM product brief for
periperhals & software support.
3
3
3
2
SOM Configuration
CENGPXA270-520-10-504HCR
CENGLH7A404-11-503HCR
CENGLH79524-10-403HCR
CENGLH75401-11-101HC
CENGSH7760-10-503HC
Note: 1. These Zoom SDK configurations are non-RoHS compliant.
ZOOM
™
Display Kit Ordering Information
Model Number
LCD-3.6-QVGA-10R
LCD-6.4-VGA-10R
Sharp LCD PN
LQ036Q1DA01
LQ64D343
Display Size Display Format
3.6”
6.4”
QVGA 320x240
VGA 640x480
LCD Interface
TFT
TFT
Key Features
Color, transmissive w/HRTFT ASIC
Color, transmissive
LOGIC WEBSITE :: DESIGN RESOURCES:
+
Logic Technical Support : http://www.logicpd.com/support/
+
Technical Discussion Group : http://www.logicpd.com/support/tdg/
+
Frequently Asked Questions (FAQ) : http://www.logicpd.com/support/faq/
+
For more information contact Logic Sales : product.sales@logicpd.com
e mb e dd ed p ro duc t so l u ti o n s
411 N. Washington Ave. Suite 400 Minneapolis, MN 55401
T :
612.672.9495
F :
612.672.9489
I :
www.logicpd.com
© 2008 Logic Product Development. All rights reserved.
PN: 70000021 Rev G
