DSC1004AL2-032.0000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DSC1004AL2-032.0000

DSC1004AL2-032.0000: DescriptionCRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT; CategoryPassive components oscillator; File Size506KB，8 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DSC1004AL2-032.0000 Overview

CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT

DSC1004AL2-032.0000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4000246051
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; OPERATING NOMINAL SUPPLY VOLTAGE IS FROM 1.8 TO 3.3V; TUBE
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	32 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	10 KOHM, 40 pF
physical size	7.0mm x 5.0mm x 0.85mm
longest rise time	3 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

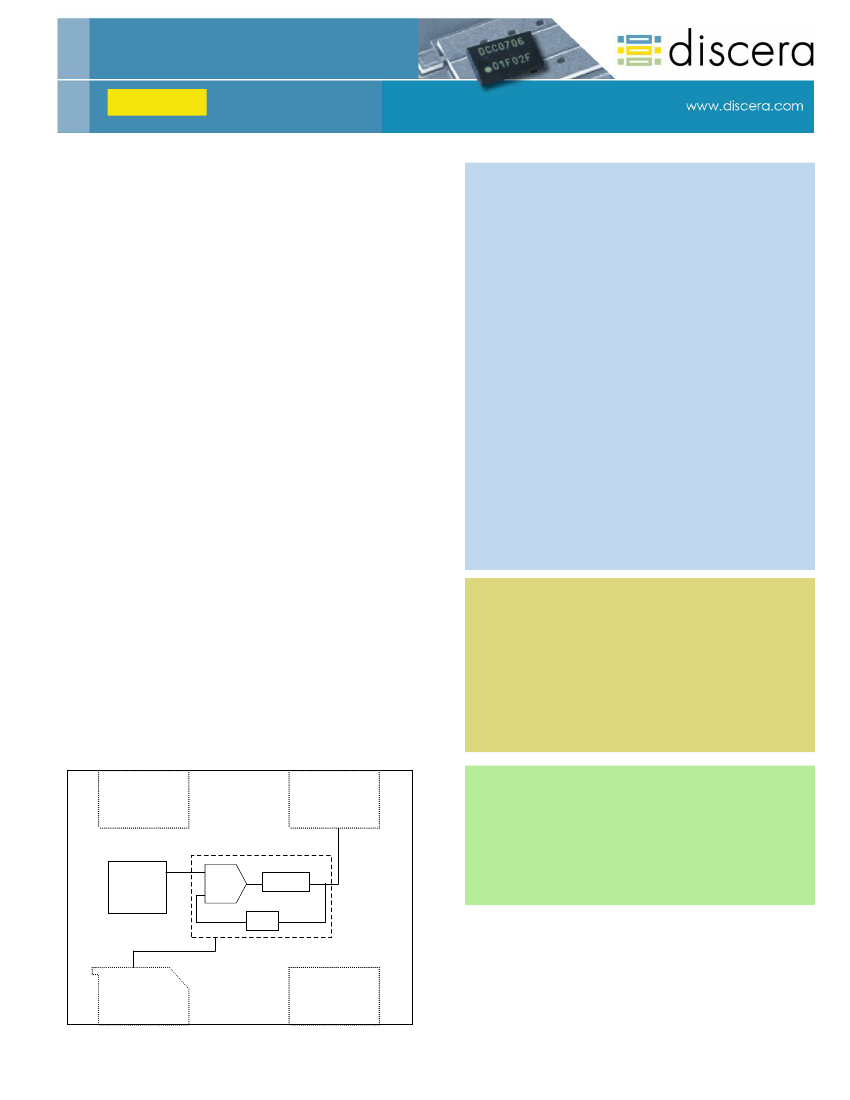

DSC1004

1.8~3.3V

Low-Power Precision CMOS Oscillator

General Description

The DSC1004 is a silicon MEMS based

CMOS oscillator offering excellent jitter and

stability performance over a wide range of

supply voltages and temperatures.

The

device operates from 1 to 150MHz with

supply voltages between 1.8 to 3.3 Volts

and extended temperatures from -40ºC to

105ºC. The DSC1004 has the same

functionality and performance as the

DSC1001 but with greater output drive

< 40pf).

The DSC1004 incorporates an all silicon

resonator that is extremely robust and

nearly immune to stress related fractures,

common to crystal based oscillators.

Without sacrificing the performance and

stability required of today’s systems, a

crystal-less design allows for a higher level

of reliability, making the DSC1004 ideal for

rugged,

industrial,

and

portable

applications where stress, shock, and

vibration can damage quartz crystal based

systems.

Available in industry standard packages,

the DSC1004 can be “dropped-in” to the

same PCB footprint as standard crystal

oscillators.

Features



Frequency Range: 1 to 150MHz

Exceptional Stability over Temperature

±10 PPM , ±25 PPM, ±50 PPM

Operating voltage

1.7 to 3.6V

Operating Temperature Range

Ext. Industrial -40ºC to 105ºC

Industrial -40ºC to 85ºC

Ext. Commercial -20ºC to 70ºC

Commercial 0ºC to 70ºC

Low Operating and Standby Current

8mA Operating (40MHz)

15uA Standby

Ultra Miniature Footprint

2.5 x 2.0 x 0.85 mm

3.2 x 2.5 x 0.85 mm

5.0 x 3.2 x 0.85 mm

7.0 x 5.0 x 0.85 mm

Excellent Shock and Vibration

Resistance

Lead Free, RoHS & Reach SVHC

Compliant



Benefits



Pin for pin “drop in” replacement for

industry standard oscillators

Semiconductor level reliability,

significantly higher than quartz

Short mass production lead-times

Longer Battery Life / Reduced Power

Compact Plastic package

Cost Effective

Block Diagram

Output

Applications



Mobile Applications

Consumer Electronics

Portable Electronics

CCD Clock for VTR Cameras

Low Profile Applications

Industrial

Resonator

PFD

VCO



Frac-N

PLL

Standby#

(pin1)

GND

_____________________________________________________________________________________________________________________________ _________________

DSC1004

Page 1

MK-Q-B-P-D-083010-02-5

DSC1004AL2-032.0000 Related Products

	DSC1004AL2-032.0000	DSC1004DC1-032.0000T	DSC1004BC2-150.0000	DSC1004BI2-150.0000	DSC1004BL5-001.0000T	DSC1004CI1-001.0000T	DSC1004AI2-150.0000T	DSC1004BI2-150.0000T	DSC1004CC2-150.0000
Description	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	4000246051	4000254883	4000247931	4000247351	4000246903	4000247515	4000246091	4000248970	4000250917
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; OPERATING NOMINAL SUPPLY VOLTAGE IS FROM 1.8 TO 3.3V; TUBE	STANDBY; ENABLE/DISABLE FUNCTION; OPERATING NOMINAL SUPPLY VOLTAGE IS FROM 1.8 TO 3.3V; TR	STANDBY; ENABLE/DISABLE FUNCTION; OPERATING NOMINAL SUPPLY VOLTAGE IS FROM 1.8 TO 3.3V; TUBE	AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TUBE; SUPPLY VOLTAGE OF 1.8V & 2.5V ALSO AVAILABLE	AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE OF 1.8V & 2.5V ALSO AVAILABLE	AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE OF 1.8V & 2.5V ALSO AVAILABLE	AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE OF 1.8V & 2.5V ALSO AVAILABLE	AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE OF 1.8V & 2.5V ALSO AVAILABLE	STANDBY; ENABLE/DISABLE FUNCTION; OPERATING NOMINAL SUPPLY VOLTAGE IS FROM 1.8 TO 3.3V; TUBE
maximum descent time	3 ns	3 ns	3 ns	2 ns	2 ns	2 ns	2 ns	2 ns	3 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	25%	50%	25%	25%	10%	50%	25%	25%	25%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	32 MHz	32 MHz	150 MHz	150 MHz	1 MHz	1 MHz	150 MHz	150 MHz	150 MHz
Maximum operating temperature	105 °C	70 °C	70 °C	85 °C	105 °C	85 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	10 KOHM, 40 pF	10 KOHM, 40 pF	10 KOHM, 40 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 40 pF
physical size	7.0mm x 5.0mm x 0.85mm	2.5mm x 2.0mm x 0.85mm	5.0mm x 3.2mm x 0.85mm	5.0mm x 3.2mm x 0.85mm	5.0mm x 3.2mm x 0.85mm	3.2mm x 2.5mm x 0.85mm	7.0mm x 5.0mm x 0.85mm	5.0mm x 3.2mm x 0.85mm	3.2mm x 2.5mm x 0.85mm
longest rise time	3 ns	3 ns	3 ns	2 ns	2 ns	2 ns	2 ns	2 ns	3 ns
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
