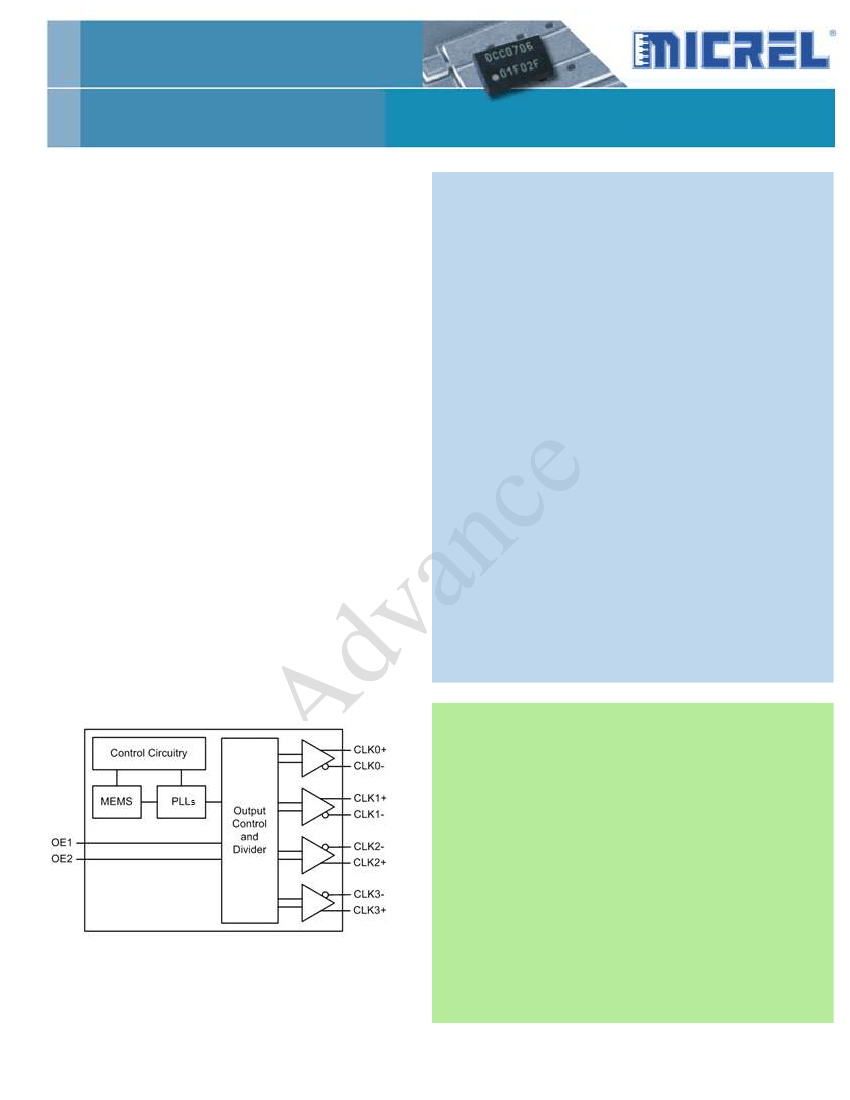

DSC558-05

Crystal-less™ Four Output PCIe Clock Generator

General Description

The DSC558-05 is a Crystal-less™, four

output PCI express clock generator meeting

Gen1, Gen2, and Gen3 specifications, with

an additional 60MHz general purpose clock.

The clock generator uses proven silicon

MEMS technology to provide excellent jitter

and stability over a wide range of supply

voltages and temperatures. By eliminating

the external quartz crystal, MEMS clock

generators significantly enhance reliability

and accelerate product development, while

meeting stringent clock performance criteria

for a variety of communications, storage,

and networking applications.

DSC558-05 has an Output Enable / Disable

feature allowing it to disable all outputs

when OE1 and OE2 are low. Each output

enable

controls

two

banks

synchronous PCIe clocks. See table 1 for

more detail. The device is available in a 20

pin QFN. Additional output formats are in

any combination of LVCMOS, LVPECL, LVDS,

and HCSL.

Advance Datasheet

Features



Meets PCIe Gen1, Gen2 & Gen3 specs



Provides 100MHz and 60MHz outputs



Available Output Formats:

HCSL, LVPECL, LVDS, or LVCMOS

Ext. Industrial: -40° to 105° C

Industrial: -40° to 85° C

Ext. commercial: -20° to 70° C



Wide Temperature Range



Supply Range of 2.25 to 3.6 V



Low Power Consumption

30% lower than competing devices

Qualified to MIL-STD-883

20 QFN



Excellent Shock & Vibration Immunity



Available Footprints:



Lead Free & RoHS Compliant



Short Lead Time: 2 Weeks

Block Diagram

Applications



Communications/Networking

1G, 10GBASE-T/KR/LR/SR, and FcoE

Routers and Switches

Gateways, VoIP, Wireless AP’s

Clk0+/-, Clk1+/-, and Clk2+/- are

100MHz as per PCIe standards frequencies;

CLK3+/- is a 60MHz frequency.

For other frequencies, please contact the factory.



Storage

SAN, NAS, SSD, JBOD



Embedded Applications

Industrial, Medical, and Avionics

Digital Signage, POS and others



Consumer Electronics

Smart TV, Bluray, STB

_____________________________________________________________________________________________________________________________ _________________

DSC558-05

Page 1

Advance v1.1
