364733: Description80-80 CONTACT(S), FEMALE-FEMALE, BOARD MOUNT, PCB ADAPTER; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

364733 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	364733	-	-	View	Buy Now

364733 Overview

80-80 CONTACT(S), FEMALE-FEMALE, BOARD MOUNT, PCB ADAPTER

364733 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
触点数量:侧 1	80
触点数量:侧 2	80
Number of rows loaded	2
Options	GENERAL PURPOSE
direct connection	YES
Base Number Matches	1

Preview

Download Datasheet

View All

39 x 1,27 = 49,53

1,27

51,75

52,75

53,55

1,8

3,25

5

4,2

ohne Verriegelung

without interlocking

7,35

4

23,5

mit Verriegelung

with interlocking

V e rp a c k t in T ra y

V e rp a c k u n g s e in h e it 2 7 S tü c k

-

342 max.

p a c k a g in g

-tra y

Einzelheit X (M 2:1)

p a c k a g in g u n it 2 7

detail X

256 max.

85,75

X

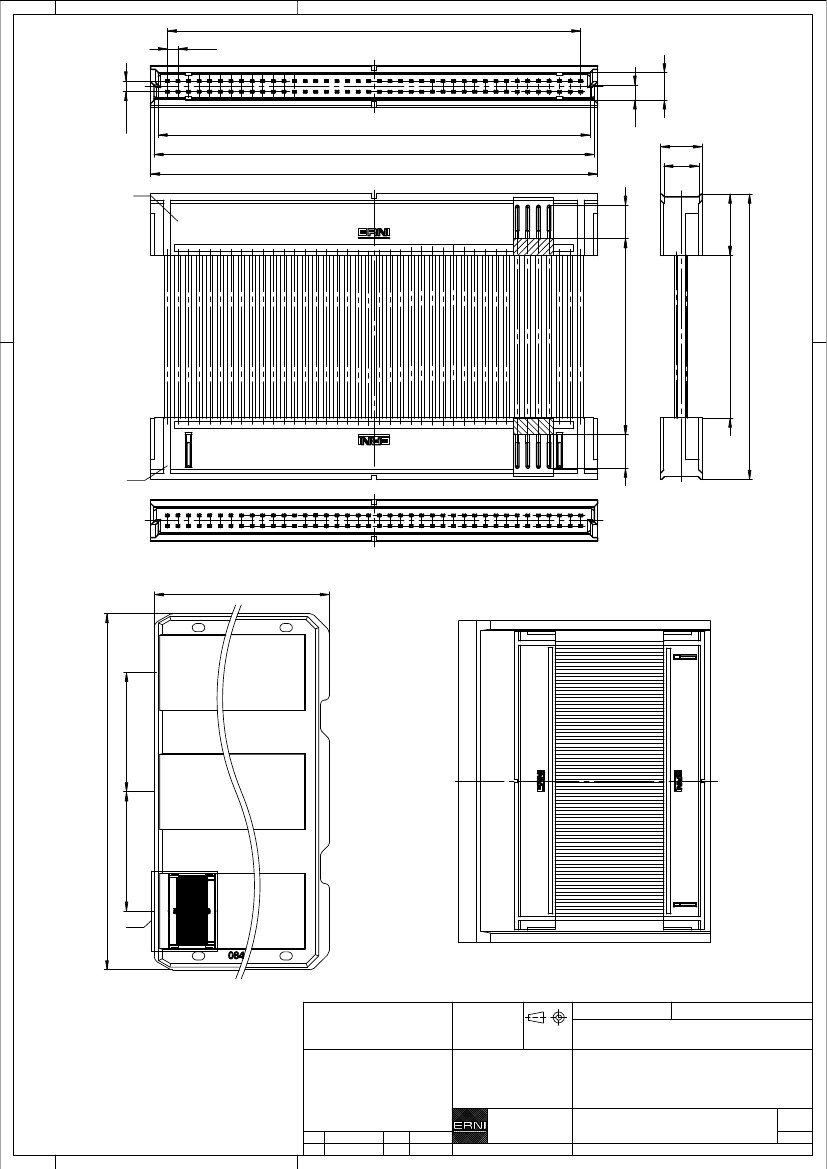

Adapterstück für board-to-board Abstand von 36mm (beidseitig verbaut mit Federleiste: 154809, Low Profile)

Adapter for board-to-board height 36mm (in combination with two female connectors: 154809, low profile)

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

26.11.2008

Index

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

1,27 DRC Adapterstück BTB 36mm

80-polig

4

3:1

www.ERNI.com

Class

364733

DRCBTB

34,2

19,5

I

A3
