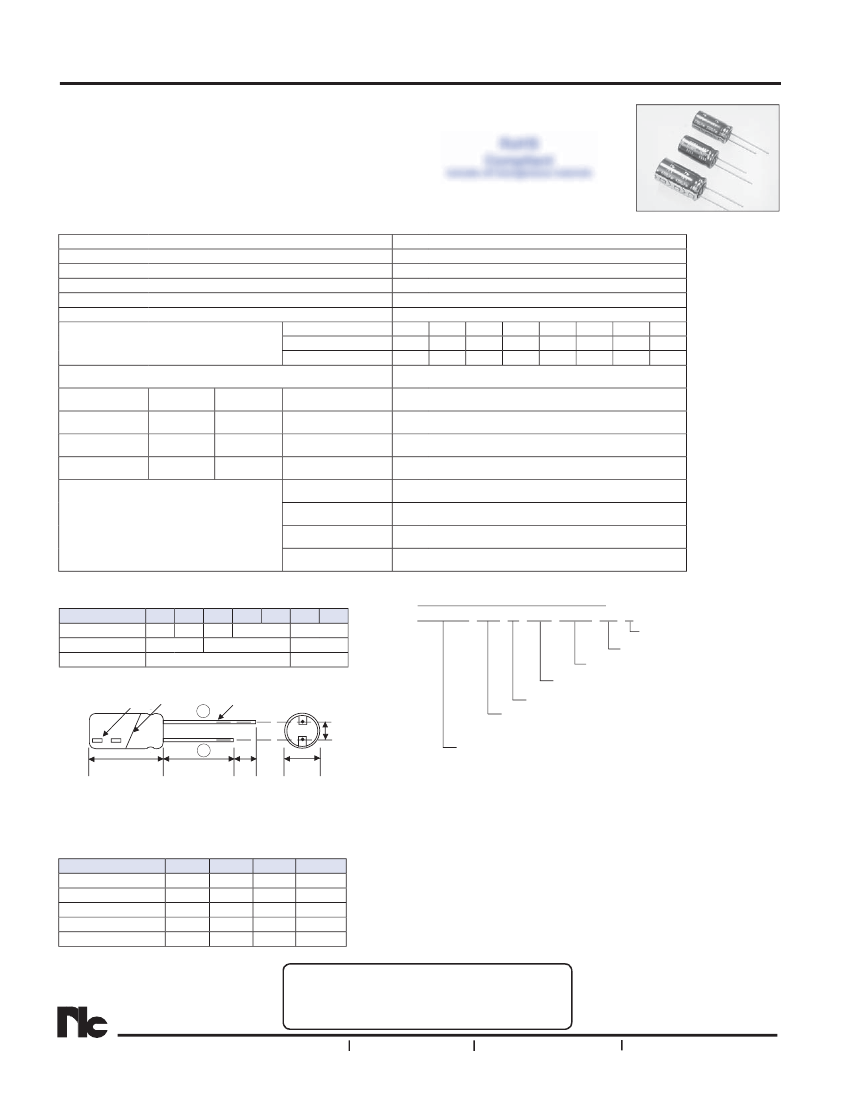

Aluminum Electrolytic Capacitors
LONG LIFE, LOW IMPEDANCE, HIGH TEMPERATURE, RADIAL LEADS,
POLARIZED ALUMINUM ELECTROLYTIC CAPACITORS
RoHS
FEATURES
Compliant
• LONG LIFE AT 105
O
C (4000 ~ 10,000 hrs.)
• HIGH CAPACITANCE (UP TO 18,000μF)
• LOW IMPEDANCE
CHARACTERISTICS
Rated Voltage Range
Rated Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Max. Leakage Current After 2 Minutes
Maximum Tanδ @120Hz/20°C
W.V. (Vdc)
Low Temperature Stability
Z -25°C/+20°C
(Impedance Ratio @ 120Hz)
Z -40°C/+20°C
Load Life @ 105°C
Case Size
5mm ~ 6.3mm
8mm ~ 10mm
12.5mm ~ 18mm
6.3V ~ 10V 16V ~ 100V
4,000 hrs
6,000 hrs
8,000 hrs
5,000 hrs
7,000 hrs
10,000 hrs
Appearance
Capacitance Change
Tan
δ
Leakage Current
Appearance
Shelf Life
After storage for 1,000 hours @ 105°C
Capacitance Change
Tan
δ
Leakage Current
6.3 ~ 100Vdc
6.8 ~ 18,000μF
-40°C ~ +105°C
±20% (M)
0.01CV or 3μA whichever is greater
(See Specifications Tables)
10
16
25
35
50
63
3
2
2
2
2
2
6
4
3
3
3
3
Allowable Change
No Notable Changes (except sleeving)
Within ±25% of initial measured value
Less than 200% of specificed value
Less than the specificed maximum value
No Notable Changes (except sleeving)
Within ±25% of initial measured value
Less than 200% of specificed value
Less than the specificed maximum value
NRE-HL Series
includes all homogeneous materials
*See Part Number System for Details
P N b S
f D il
6.3
4
8
100
2
3
LEAD SPACING AND DIAMETER (mm)
Case Dia. (Dφ)
Lead Space (F)
Lead Dia. (dφ)
Dim.
β
5
6.3
2.0 2.5
0.5
8
3.5
1.5
Sleeve
dφ ± 0.05
12.5
5.0
0.6
10
16
7.5
0.8
2.0
18
PART NUMBERING SYSTEM
NRE-HL 101 M 25V 8X11 TB F
RoHS Compliant
TB = Tape & Box*
Case Size (DφxL)
Working Voltage (Vdc)
Tolerance Code (M=20%)
Cap. Code: First 2 characters significant
Third character is multiplier
Series
*see tape specification for details
DIMENSIONS (mm)
Polarity Marking
+
F ± 0.5
-
L +
β
max.
15mm Min.
4mm
Min.
Dφ ±
α
Drawing is representative of parts as supplied in bulk or
straight lead format, please see taping specification for details
on taped format packaging.
RIPPLE CURRENT FREQUENCY
CORRECTION FACTOR
Capacitance Value
6.8μF ~ 33μF
39μF ~ 270μF
330μF ~ 680μF
820μF ~ 1800μF
2200μF ~ 18000μF
120Hz
0.42
0.50
0.55
0.60
0.70
1KHz
0.70
0.73
0.77
0.80
0.85
10KHz 100KHz
0.90
1.00
0.92
1.00
0.94
1.00
0.96
1.00
0.98
1.00
PRECAUTIONS
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
