6TQ045E3 datasheet, PDF - EEWORLD Datasheet

6TQ045E3: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 50V V(RRM), Silicon, TO-220AC, SIMILAR TO TO-220AC, 2 PIN; CategoryDiscrete semiconductor diode; File Size136KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

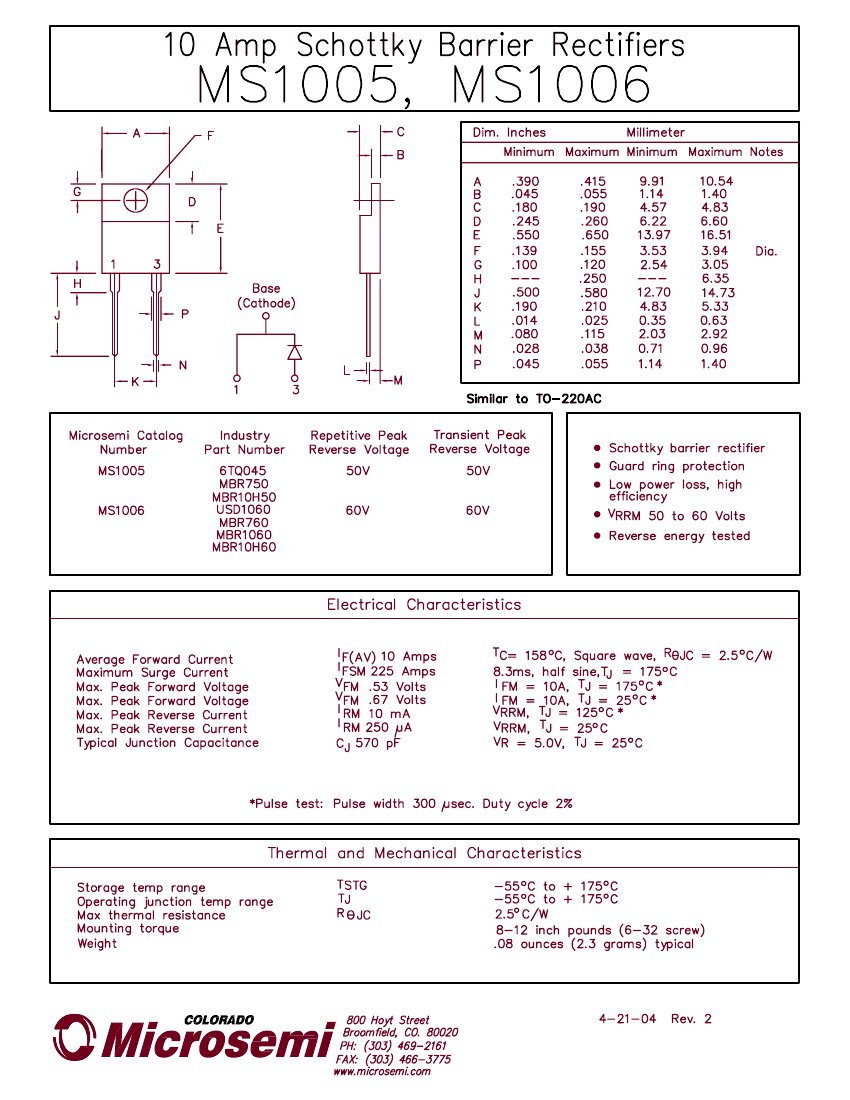

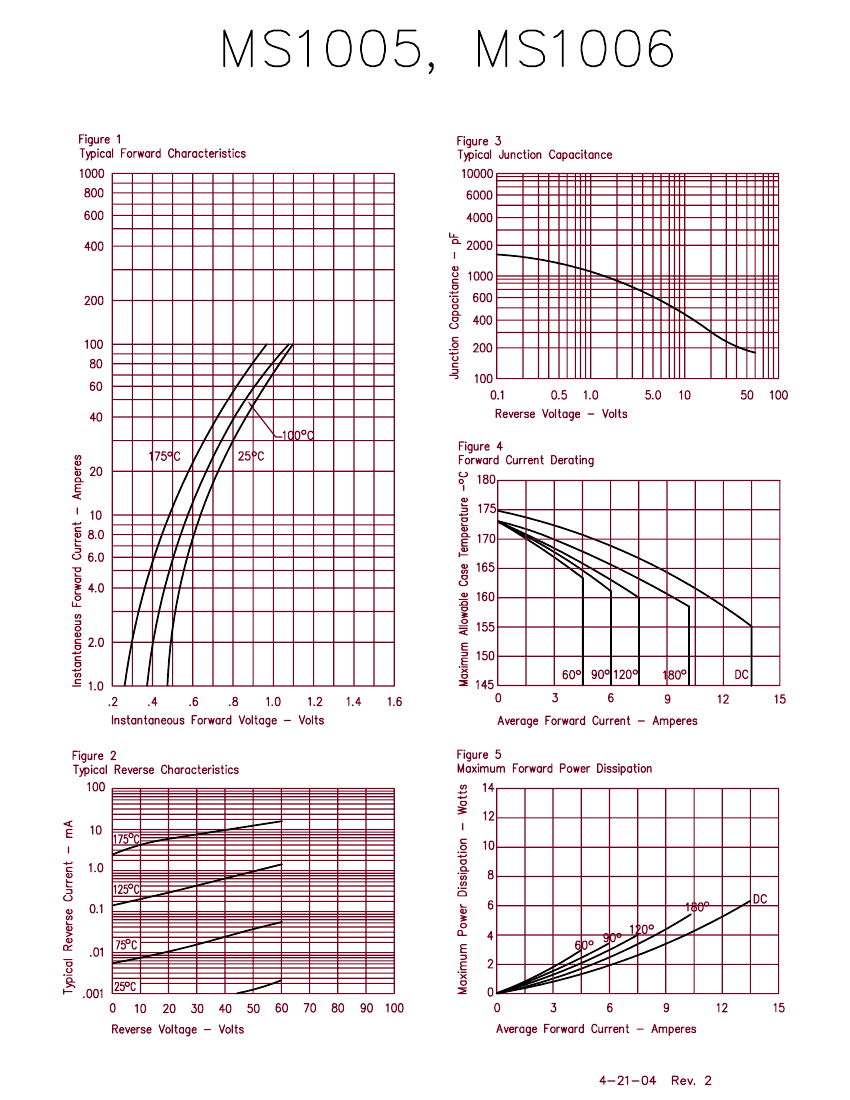

6TQ045E3 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 50V V(RRM), Silicon, TO-220AC, SIMILAR TO TO-220AC, 2 PIN

Parameter Name	Attribute value
Objectid	8072820500
package instruction	SIMILAR TO TO-220AC, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS, REVERSE ENERGY TESTED
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	225 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	6TQ045E3	MBR750E3
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 50V V(RRM), Silicon, TO-220AC, SIMILAR TO TO-220AC, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 50V V(RRM), Silicon, TO-220AC, SIMILAR TO TO-220AC, 2 PIN
package instruction	SIMILAR TO TO-220AC, 2 PIN	R-PSFM-T2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	LOW POWER LOSS, REVERSE ENERGY TESTED	LOW POWER LOSS, REVERSE ENERGY TESTED
application	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	225 A	225 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V	50 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
