LC01-6
Bidirectional TVS Array ™
SCOTTSDALE DIVISION
DESCRIPTION
This 16 pin one-line pair, bidirectional, LOW CAPACITANCE array is designed for
use in applications where protection is required at the board level. The SO-16W
package design provides protection from voltage transients caused by electrostatic
discharge (ESD) as defined in IEC 61000-4-2, electrical fast transients (EFT) per
IEC 61000-4-4 and effects of secondary lightning as stated by IEC 61000-4-5.
These TRANSIENT VOLTAGE SUPPRESSOR (TVS) arrays have a peak pulse
power rating of 1500 watts for a 10/1000
µsec
pulse and are designed to be used for
secondary surge protection on high-speed telecommunications lines. This device
can be used in either common or differential mode applications. It is typically used
between Tip and Ring. Applications include T1/E1 and DSL interfaces in base
stations, routers, and long-haul transient immunity requirement per Bellcore 1089,
FCC Part 68 (type A and B surges and IEC 61000-4-5
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
TVSARRAY™
WWW .
Microsemi
.C
OM
FEATURES
•
•
•
•
•
•
1500 watts peak pulse power
Protects one-line pair
Provides electrically isolated protection
SO-16W package
UL 94V-0 flamability classification
LOW CAPACITANCE 50 pF per line pair
•
•
•
•
•
•
APPLICATIONS / BENEFITS
T1/E1 line cards
Base stations
WAN interfaces
XDSL interfaces
CSU/DSU equipment
Secondary lightning protection per IEC61000-4-5 up
to Class 4 with 12 & 42 Ohms source impedance,
and up to Class 3 protection with 2 Ohms source
impedance
MAXIMUM RATINGS
•
•
•
•
•
•
Operating temperature: -55°C to +150°C
Storage temperature: -55°C to +150°C
Peak pulse power: 1500 watts (10/1000 µs, Fig 1)
Pulse repetition rate: < .01%
Thermal resistance:< 30°C/watt (junction-to-case)
Lead soldering temperature: 260°C, 10s maximum
MECHANICAL AND PACKAGING
•
Molded SO-16W Surface Mount
•
Weight 0.25 grams (approximate)
•
Marking: Logo, device marking code, date code
•
Pin #1 defined by dot on top of package
•
Tape & Reel per EIA Standard 481
•
13 inch reel; 2,500 pieces (OPTIONAL)
•
Carrier tubes; 45 pcs (STANDARD)
ELECTRICAL CHARACTERISTICS PER LINE PAIR @ 25°C Unless otherwise specified
STAND OFF
VOLTAGE
V
WM
VOLTS
MAX
LC01-6
LC01-6
6.0
BREAKDOWN
VOLTAGE
V
BR
@1 mA
VOLTS
MIN
8.0
CLAMPING
VOLTAGE
V
C
@ 100 Amp
(Figure 2)
VOLTS
MAX
15
CLAMPING
VOLTAGE
V
C
@ 200 Amp
(Figure 3)
VOLTS
MAX
16
STANDBY
CURRENT
I
D
@ V
WM
µA
MAX
25
TYP
50
MAXIMUM
CAPACITANCE
C
@0V,
f =1 MHz
PART
NUMBER
DEVICE
MARKING
LC01-6
Note: Transient Voltage Suppressor (TVS) product is normally selected based on its stand off voltage V
WM
. Product selected voltage should be
equal to or greater than the continuous peak operating voltage of the circuit to be protected.
Copyright
2004
10-25-2004 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
LC01-6
Bidirectional TVS Array ™
SCOTTSDALE DIVISION
Symbol
V
WM
V
BR
V
C
I
D
C
SYMBOLS & DEFINITIONS
Definition
Stand Off Voltage: Maximum dc voltage that can be applied over the operating temperature range.
Vwm must be selected to be equal or be greater than the operating voltage of the line to be protected
Minimum Breakdown Voltage: The minimum voltage the device will exhibit at a specified current
Clamping Voltage: Maximum clamping voltage across the TVS device when subjected to a given current at a
pulse time, t
d
.
Standby Current: Leakage current at V
WM.
Capacitance: Capacitance of the TVS as defined @ 0 volts at a frequency of 1 MHz and stated in picofarads.
WWW .
Microsemi
.C
OM

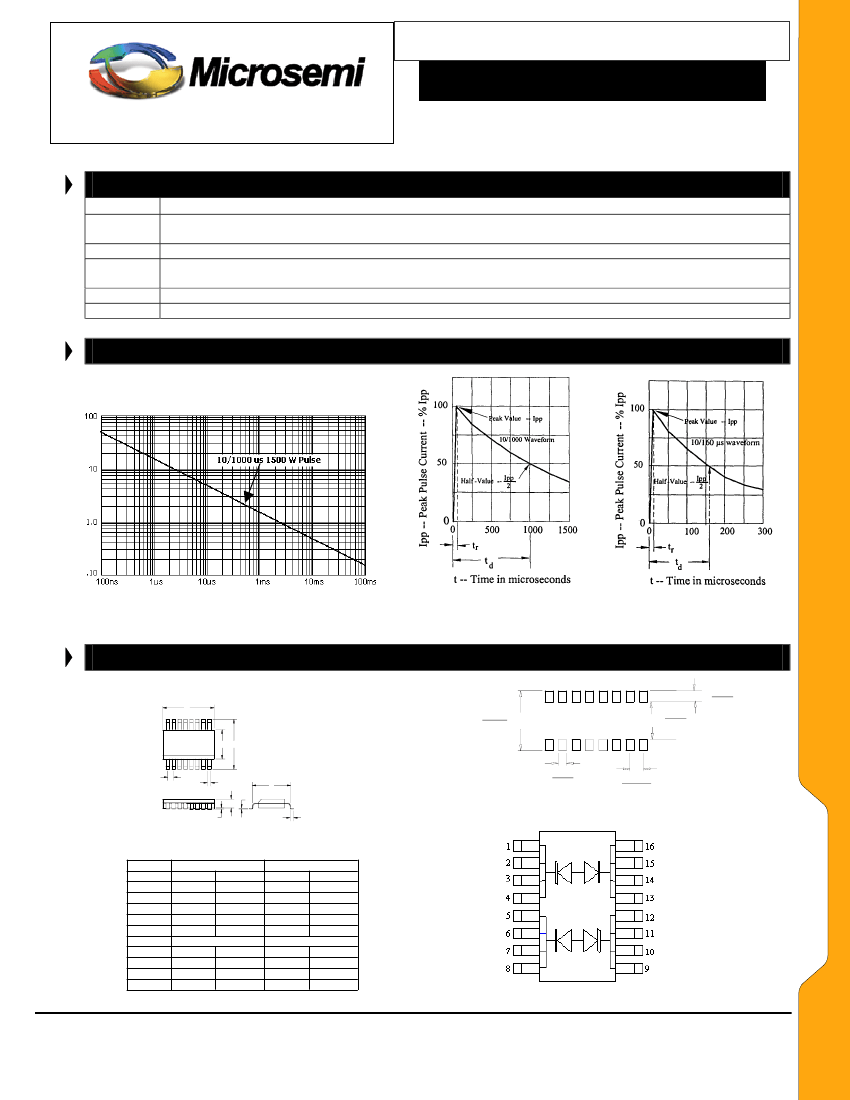

OUTLINE AND CIRCUIT
Ppp Peak Pulse Power (kW)
Pulse Time t = sec
Figure 1
Peak Pulse Power Vs Pulse Time t = sec
Figure 2
Pulse Wave Form
Figure 3
Pulse Wave Form
DIMENSIONS AND SCHEMATIC
.08/.10
2.1/2.6
.45/.48_
11.6/11.8
B
P
A
.25/.27
6.6/6.8
G
D
C
K
J
L
.02/.03
.60/.80
.05 (nom)
1.27 (nom)
PAD LAYOUT
F
LC01-6
INCHES
DIM
A
B
C
D
F
G
J
K
L
P
MIN
0.397
0.291
0.081
0.013
0.016
0.050 BSC
0.009
0.001
0.344
0.394
0.012
0.004
0.387
0.419
MAX
0.413
0.299
0.104
0.020
0.050
MILLIMETERS
MIN
10.08
7.39
2.06
0.33
0.41
1.27 BSC
0.23
0.03
7.47
10.01
0.30
0.10
9.79
10.64
MAX
10.49
7.60
2.64
0.51
1.27
SCHEMATIC
Copyright
2004
10-25-2004 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
