NSD15TR5KE Overview

Surface Mount Schottky Barrier Rectifi er Diode

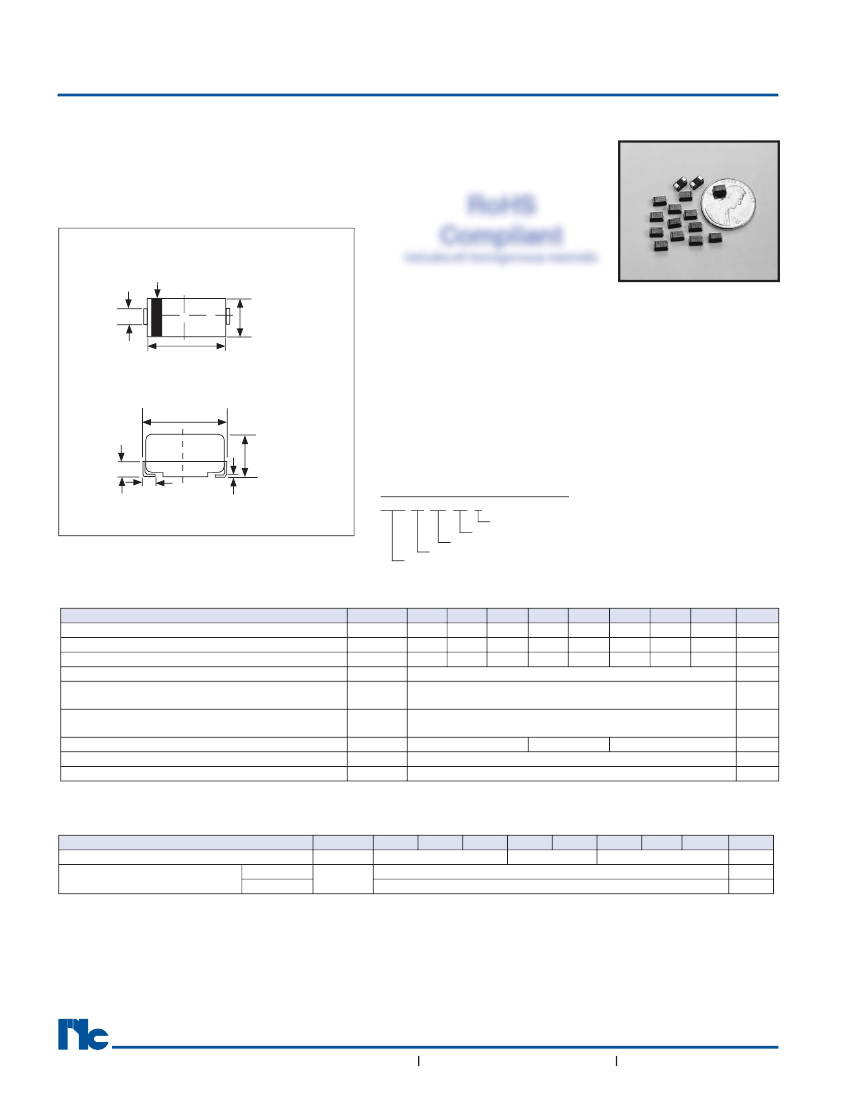

Surface Mount Schottky Barrier Rectifier Diode
FEATURES
VOLTAGE: 20 TO 100 VOLTS, CURRENT: 1.0 & 2.0 AMPERE
FLAT PACK - LOW PROFILE, FOR SURFACE MOUNT APPLICATIONS
FAST RESPONSE AND LOW FORWARD VOLTAGE
HIGH TEMPERATURE SOLDERING (250
O
C/10 SECONDS)
EASY PICK AND PLACE
NSD Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
CATHODE
1.25~1.45
2.54~2.79
3.99~4.50
4.93~5.28
1.98~2.29
.8~1.3
0.76~1.27
0.1~0.2
MECHANICAL DATA:
SIZE: SMA/DO-214AC
CASE: Molded epoxy
TERMINALS: Solder plated Copper alloy
POLARITY: Indicated by cathode band
STANDARD PACKAGING: 12mm tape (EIA-RS-481)
WEIGHT: 0.064 gram
PART NUMBERING SYSTEM
NSD 14 TR 5K F
RoHS Compliant
Reel qty: (5K & 7.5K)
Tape and Reel
Voltage & Current Designator (See ratings tables)
Series
Dimensions (millimeters)
MAXIMUM RATINGS
(At T
A
=25
0
C unless otherwise noted)
Ratings
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current 8.3ms single half sine-wave
supreimposed on rated load (JEDEC method)
Maximum Thermal Resistance
Typical Junction Capacitance (Note 1)
Operating and Storage Temperature Range
Typical Reverse Recovery Time
Symbol
VRRM
VRMS
VDC
Io
IFSM
(Note 2)
RqJL
CJ
TJ, TSTG
TRR
NSD12 NSD13 NSD14 NSD15 NSD16 NSD18 NSD19 NSD100
UNITS
20
30
40
50
60
80
90
100
Volts
14
21
28
35
42
56
64
71
Volts
20
30
40
50
60
80
90
100
Volts
1.0
30
25
110
80
-55 ~ +150
15
70
Amps
Amps
°C/W
pF
°C
nS
ELECTRICAL CHARACTERISTICS
(At T
A
=25
0
C unless otherwise noted)
Characteristics
Maximum Forward Voltage at 1.0A DC
@TA=25°C
Maximum DC Reverse Current at
Rated DC Blocking Voltage (Note 3) @TA=100°C
Symbol
VF
IR
NSD12
NSD13
0.50
NSD14
NSD15 NSD16
0.65
0.5
10.0
NSD18 NSD19 NSD100
UNITS
0.85
Volts
mAmps
mAmps
NOTES:
1. Measured at 1.0MHz and applied average voltage of 4.0VDC.
2. Thermal resistance junction to terminal, 5mm
2
(0.013 mm Thick) copper land patterns.
3. Pulse width 300uS, 2% duty cycle.
®
NIC COMPONENTS
www.niccomp.com
www.lowESR.com
www.RFpassives.com

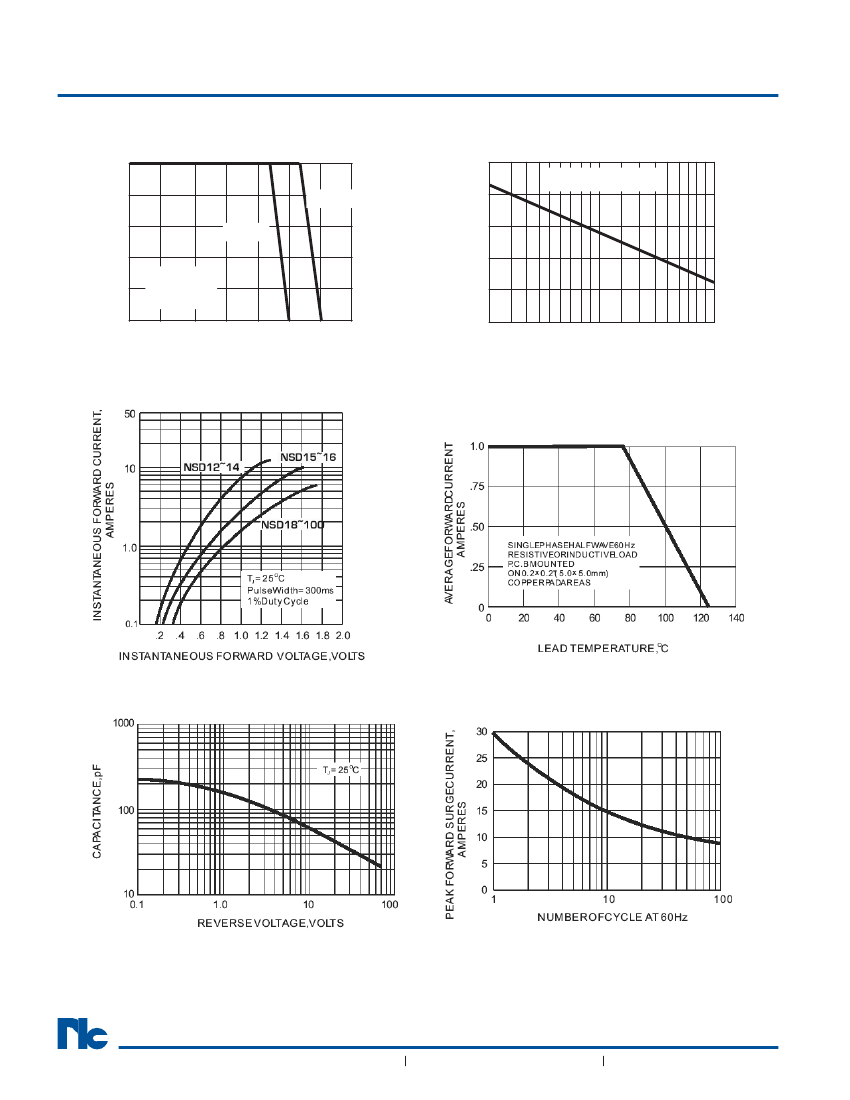

1
