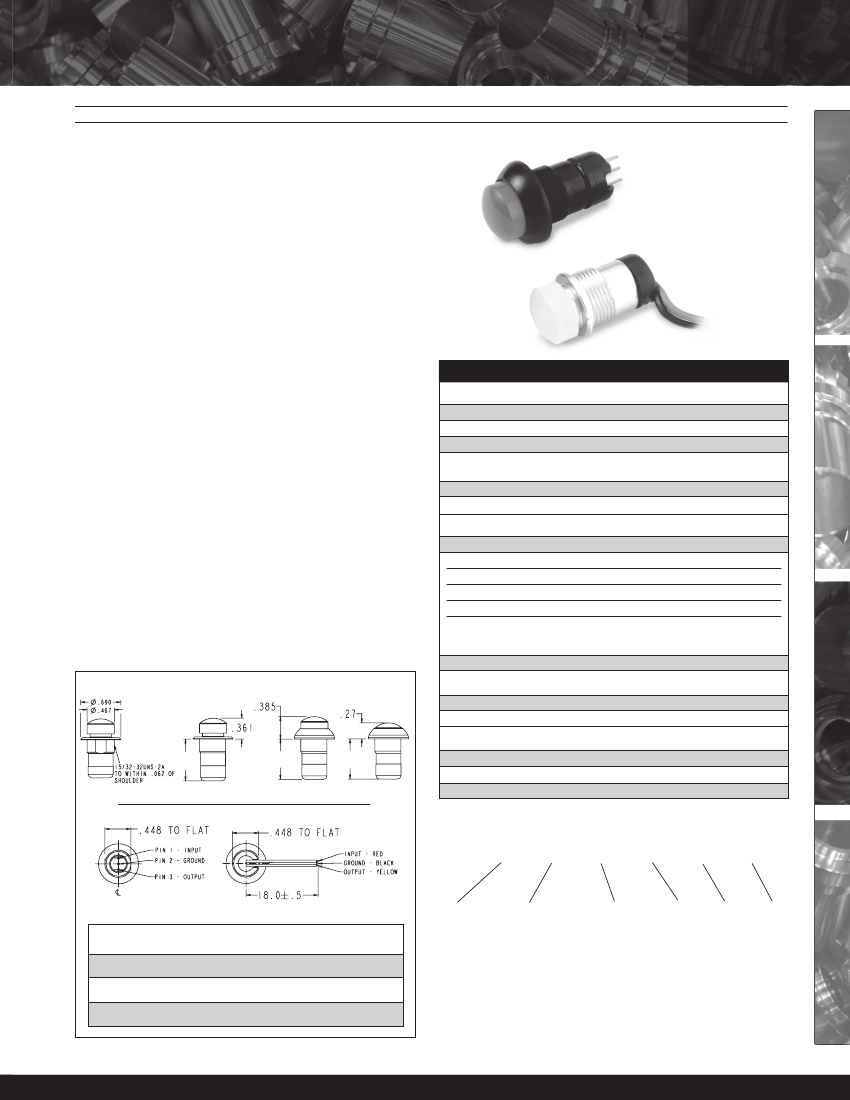

HALL EFFECT PUSHBUTTON SWITCHES
10 MILLION CYCLES, CONTACTLESS HALL EFFECT TECHNOLOGY
HALL EFFECT
PUSHBUTTONS
HP7
Designated the HP7 series, these momentary pushbutton
switches utilize Hall effect sensor technology for long life
contactless switching, with 10 million cycles. Available in dusttight
and moistureproof sealed configurations, these switches can
also be watertight sealed to IP68S. The stylish dome-shaped
pushbuttons are available in nine colors.
Case and bezel are precision-machined aluminum alloy, available
with either a black or clear coat anodized finish. Three case and
button styles are offered in raised dome, flush dome and exposed
dome styles. PC pins or wire leads are standard, with value-added
connectors available to specification.
This rugged switch is designed to withstand harsh environments
while being subjected to high rates of actuation. Applications
that require repeated “jogging” and other continuous operations
are prime applications for the HP7 Hall Effect Switch. Examples
of such can be found in material handling equipment such as
loaders, lift trucks, bucket and shovel, and other applications
where positioning of the load is critical.
Raised Dome
with 3 PIN Header
Exposed Dome
with Wire Leads
Standard Characteristics/Ratings:
MECHANICAL:
Mechanical Life:
Button Travel:
Overtravel:
Operating Force:
Operating Point:
Electrical Life:
10,000,000 cycles without detent
0.080 inches max
0.010 inches min
Without detent: 16 oz +/- 8 oz
With detent: 28 oz +/- 8 oz
0.040 inches +/- 0.010
10,000,000 cycles
Features:
•
•
•
•
•
•
•
•
10 million cycles
Hall effect technology for long life
Electronics sealed to IP64 or watertight to IP68S
Stylish dome-shaped buttons in 9 colors
Momentary action
Choice of termination styles
Mechanical detent available for tactile feedback
RoHS/WEEE/Reach compliant
Exposed
Dome
Raised
Dome
Flush
Dome
ELECTRICAL RATINGS: Rated at Vcc = 5V @ 25°C
Load = 1mA (4.7KΩ)
Electrical
Supply Voltage
Reverse Output Voltage
Supply Current
Continuous Output Current
Reverse Battery Protection
Units
VDC
VDC
mA
mA
VDC
Min
3.0
N/A
N/A
N/A
N/A
Max
24
0.5
9
18
-15
ELECTRONICS:
Seal:
IP64 or IP68S
HALL EFFECT
ENVIRONMENTAL:
Operating Temp Range:
-40°C to +85°C
Storage Temp Range:
-60°C to +105°C
MATERIALS:
A
B
C
Button:
Case:
Mounting Hardware:
Thermoplastic
Aluminum alloy
Hex nut & lockwasher
HP7 –
X
HP7 PART NUMBER CODE
X
X
X
X
X
Dome
Style
PIN HEAD
TERMINATION
WIRE LEAD
TERMINATION
DE.
Exposed Dome
DF.
Flush Dome
DR.
Raised Dome
Action
1.
Normally High
Momentary
2.
Normally High
Momentary
with Detent
3.
Normally Low
Momentary
4.
Normally Low
Momentary
with Detent
Terminal
Style
3.
3 Pin Header
5.
18” Potted
26 AWG
Wire Leads
Seal Level
2.
Dusttight &
Moistureproof
3.
Watertight
Case
Color
1.
Clear
2.
Black
Button
Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Purple
8.
Gray
9.
White
A - Exposed Dome
B - Raised Dome
C - Flush Dome
.736
.713
.713
.652
.628
.628
Specifications Subject To Change Without Notice
www.ottoexcellence.com
43
