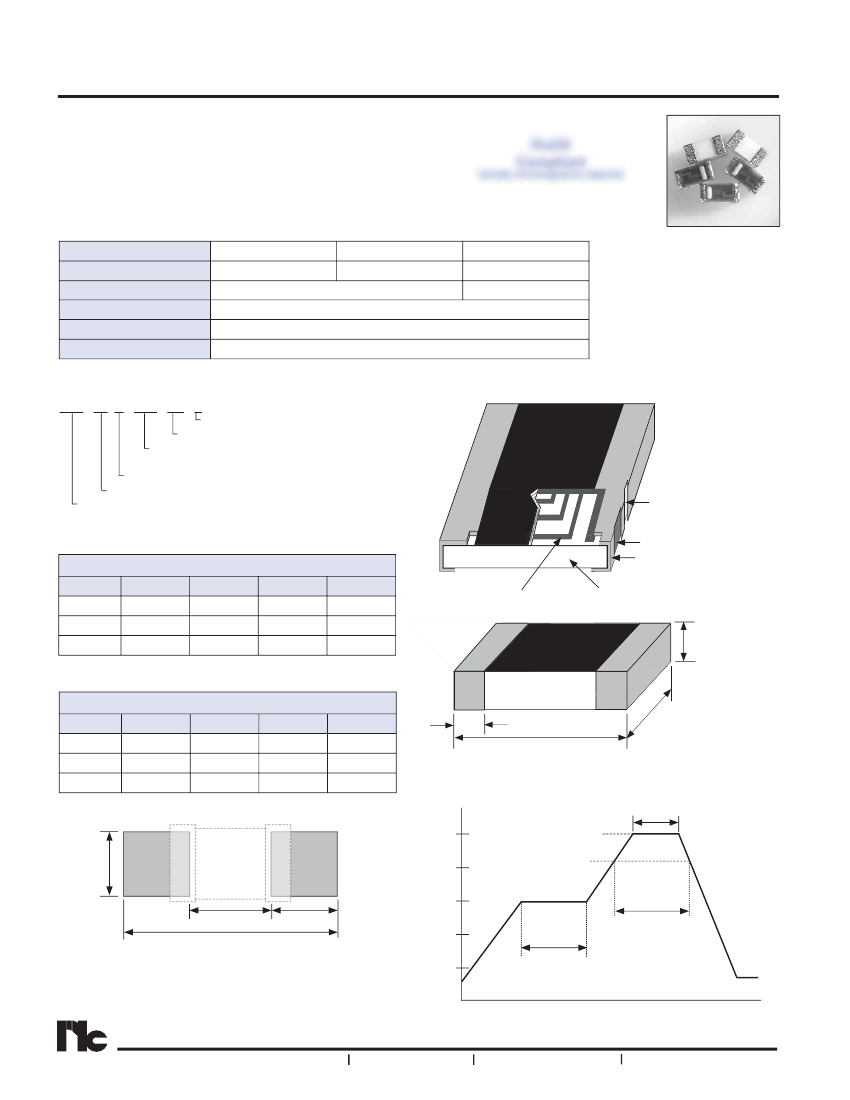

Thin Film Chip Inductors
FEATURES
• ULTRA-SMALL LOW PROFILE 0201, 0402 & 0603SIZES
• HIGH Q (15 ~ 40) @ 300MHz ~ 1.5GHz
• S-PARAMETER CHARACTERISTICS AVAILABLE
• HIGH CURRENT & HIGH SRF
• COMPATIBLE WITH Pb-FREE SOLDERING
• RoHS COMPLIANT
CHARACTERISTICS
Case Size
Inductance Range
Available Tolerance
Temperature Range
Resistance to Solder Heat
Temperature Cycling
0201
1.0nH ~ 5.6nH
0402
1.0nH ~ 15nH
0603*
1.0nH ~ 100nH
±0.2nH (C) & 2% (G)
NTL Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
±0.1nH (B), ±0.2nH (C) & 2% (G)
-40°C ~ +125°C
270°C ±5°C for 10 seconds
ΔL±10%
after 10 cycles -40°C/+20°C/+85°C/+20°C
*Not recommended for new designs (see NTI06 series)
PART NUMBER SYSTEM
NTL 02 C 33N TR F
RoHS compliant
Tape & Reel Packaging
Inductance Value in nano-henries,
"N" indicates decimal point
Inductance Tolerance (see values tables)
Case Code
Series
CONSTRUCTION
Copper (Cu)
Termination Base
2µm Nickel (Ni) Barrier
3µm Tin (Sn) Outerplating
CASE DIMENSIONS (mm)
Case Sixe
0201
0402
0603
L
0.61 ± 0.05
1.0 ± 0.10
1.6 ± 0.10
W
0.31 ± 0.05
0.5 ± 0.10
0.8 ± 0.10
T
0.28 ± 0.05
0.40 ± 0.10
0.45 ± 0.10
P
0.12 ± 0.05
0.25 ± 0.10
0.30 ± 0.10
Etched Copper Coil
Alumina Substrate
T
LAND PATTERN DIMENSIONS (mm)
Case Sixe
0201
0402
0603
A
0.2 ~ 0.3
0.5 ~ 0.6
0.6 ~ 1.0
B
0.8 ~ 0.9
1.5 ~ 1.8
2.4 ~ 2.8
C
0.2 ~ 0.3
0.5 ~ 0.6
0.7 ~ 0.9
D
0.3 ~ 0.4
0.5 ~ 0.6
0.9 ~ 1.1
P
L
W
REFLOW SOLDERING PROFILE
10 sec. max.
250°C
250°C max.
220°C
130°C ~ 180°C
Time above 220°C -
30 ~ 90 sec. max.
A
Temperature °C
200°C
150°C
100°C
50°C
C
B
D
60 ~ 90 sec.
®
Time (seconds)
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
15
Thin Film Chip Inductors
Available Values - 0201 Case Size
Inductance
Value (nH)
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
Part
Available Tolerances
Q Factor Min.
Typical Q
Number
& Tolerance Codes & Test Frequency @ 300MHz
NTL02_1N0TRF
12
NTL02_1N1TRF
11
NTL02_1N2TRF
11
NTL02_1N3TRF
11
NTL02_1N5TRF
11
NTL02_1N6TRF
11
NTL02_1N8TRF
11
NTL02_2N2TRF
11
NTL02_2N4TRF
11
±0.1nH (B)
±0.2nH (C)
NTL02_2N7TRF
11
NTL02_3N0TRF
11
NTL02_3N3TRF
11
10 min. @
500MHz
NTL02_3N6TRF
11
NTL02_3N9TRF
11
NTL02_4N3TRF
11
NTL02_4N7TRF
11
NTL02_5N1TRF
11
NTL02_5N6TRF
11
NTL02C6N2TRF
10
NTL02C6N8TRF
10
NTL02C7N5TRF
10
±0.2nH (C)
NTL02C8N2TRF
10
NTL02C9N1TRF
10
NTL02C10NTRF
10
Typical Q
@ 1.5 GHz
27
27
26
26
26
26
25
25
25
24
24
22
22
21
21
21
21
20
20
20
20
19
19
19
DC Resistance
Max. (Ω)
0.24
0.30
0.30
0.26
0.26
0.36
0.36
0.50
0.54
0.54
0.66
0.66
0.80
0.80
1.00
1.00
1.60
1.00
1.00
1.00
1.80
1.80
2.20
2.20
NTL Series
DC Current
SRF
Max. (mA) Min. (GHz)
510
10
460
10
460
10
490
10
490
10
420
10
420
10
350
10
340
7.0
340
7.0
310
7.0
310
7.0
280
7.0
280
7.0
250
7.0
250
7.0
200
6.0
200
6.0
220
6.0
220
6.0
170
5.0
170
5.0
150
4.5
150
4.5

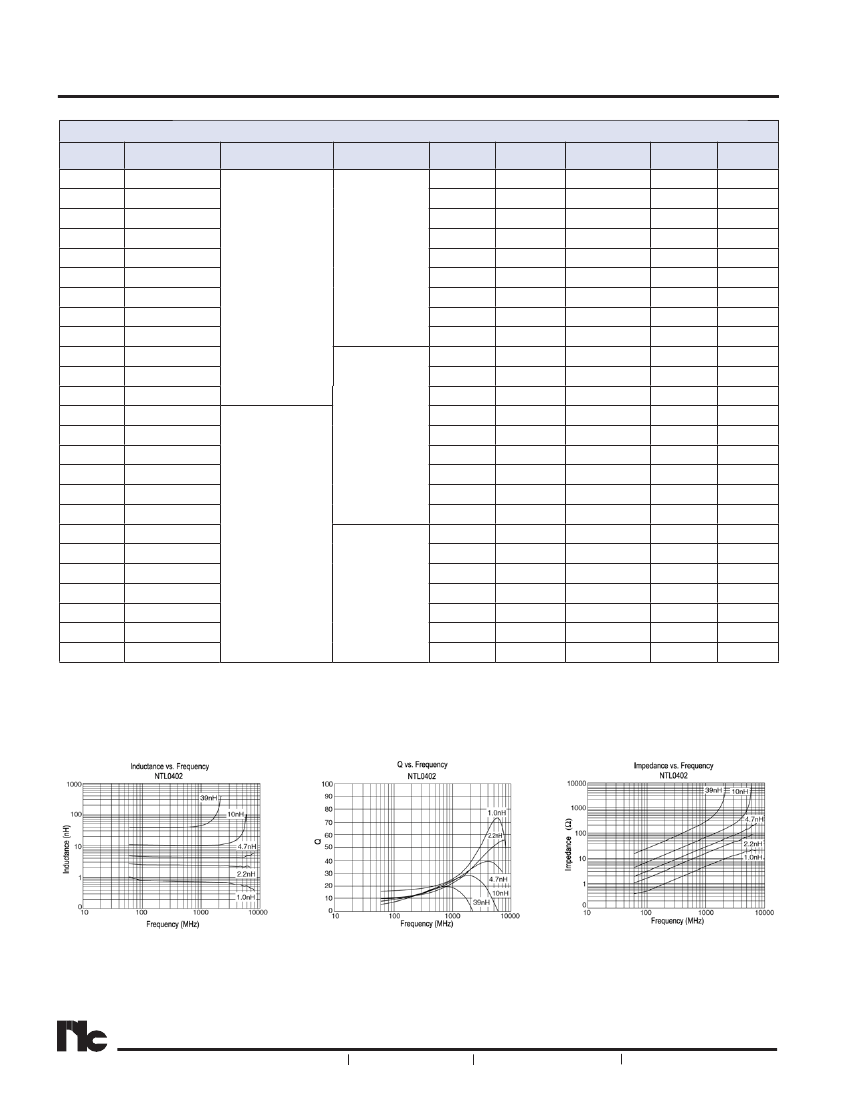

Available Values - 0402 Case Size
Inductance
Value (nH)
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
®
Part
Available Tolerances
Q Factor Min.
Typical Q
Number
& Tolerance Codes & Test Frequency @ 300MHz
NTL04_1N0TRF
22
NTL04_1N1TRF
20
NTL04_1N2TRF
20
NTL04_1N3TRF
20
NTL04_1N5TRF
20
NTL04_1N6TRF
20
NTL04_1N8TRF
20
NTL04_2N0TRF
20
13 min. @
NTL04_2N2TRF
17
300MHz
NTL04_2N4TRF
17
NTL04_2N7TRF
17
NTL04_3N0TRF
16
±0.1nH (B)
±0.2nH (C)
NTL04_3N3TRF
16
NTL04_3N6TRF
16
NTL04_3N9TRF
16
NTL04_4N3TRF
16
NTL04_4N7TRF
16
NTL04_5N1TRF
16
NTL04_5N6TRF
16
NTL04_6N2TRF
15
NTL04_6N8TRF
15
NTL04_7N5TRF
15
NTL04_8N2TRF
15
10 min. @
300MHz
NTL04_9N1TRF
15
NTL04G10NTRF
15
NTL04G11NTRF
15
NTL04G12NTRF
±2% (G)
15
NTL04G13NTRF
14
NTL04G15NTRF
14
Typical Q
@ 1.5 GHz
52
45
44
44
44
44
44
44
39
39
39
36
36
36
36
36
36
34
34
32
32
32
32
32
29
28
28
25
25
DC Resistance
Max. (Ω)
0.03
0.05
0.08
0.10
0.10
0.12
0.14
0.14
0.15
0.22
0.23
0.24
0.25
0.30
0.30
0.46
0.50
0.68
0.70
0.80
0.80
0.93
1.10
1.30
1.40
1.60
1.65
2.20
2.25
DC Current
SRF
Max. (mA) Min. (GHz)
1,800
7.0
1,500
7.0
1,400
7.0
1,250
7.0
1,200
7.0
1,070
7.0
1,000
7.0
980
7.0
900
7.0
810
7.0
750
7.0
710
7.0
700
7.0
650
7.0
620
7.0
550
6.0
500
6.0
460
5.5
450
5.5
440
4.5
430
4.5
380
4.0
340
4.0
310
3.5
300
3.5
280
3.5
270
3.5
260
3.5
240
3.5
16
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Thin Film Chip Inductors
Available Values - 0603 Case Size
Inductance
Value (nH)
1
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Part
Number
NTL06C1N0TRF
NTL06C1N2TRF
NTL06C1N5TRF
NTL06C1N8TRF
NTL06C2N2TRF
NTL06C2N7TRF
NTL06C3N3TRF
NTL06C3N9TRF
NTL06C4N7TRF
NTL06C5N6TRF
NTL06C6N8TRF
NTL06C8N2TRF
NTL06G10NTRF
NTL06G12NTRF
NTL06G15NTRF
NTL06G18NTRF
NTL06G22NTRF
NTL06G27NTRF
NTL06G33NTRF
NTL06G39NTRF
NTL06G47NTRF
NTL06G56NTRF
NTL06G68NTRF
NTL06G82NTRF
NTL06GR10TRF
20 min. @
300MHz
Available Tolerances
Q Factor Min.
Typical Q
& Tolerance Codes & Test Frequency @ 800MHz
34
34
34
34
30
30
30
30
30
Typical Q
@ 1.5 GHz
38
38
38
38
38
35
35
35
35
NTL Series
DC Resistance DC Current
SRF
Max. (Ω)
Max. (mA) Min. (GHz)
0.10
0.10
1000
1000
1000
800
800
800
700
700
600
400
400
400
300
300
300
250
250
200
200
180
180
150
140
120
100
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
5.0
5.0
5.0
4.0
4.0
3.0
3.0
2.0
2.0
2.0
1.5
1.5
1.5
1.0
1.0
1.0
1.0
co
m
(s me
ee n
N ded
TI
06 for
se ne
rie w
s) de
si
gn
30
35
30
30
30
30
30
25
25
25
25
25
25
15 min. @
200MHz
25
25
15
15
35
35
35
35
35
30
30
30
/
/
/
/
/
/
/
15 min. @
300MHz
±0.2nH (C)
±2% (G)
re
ot
N

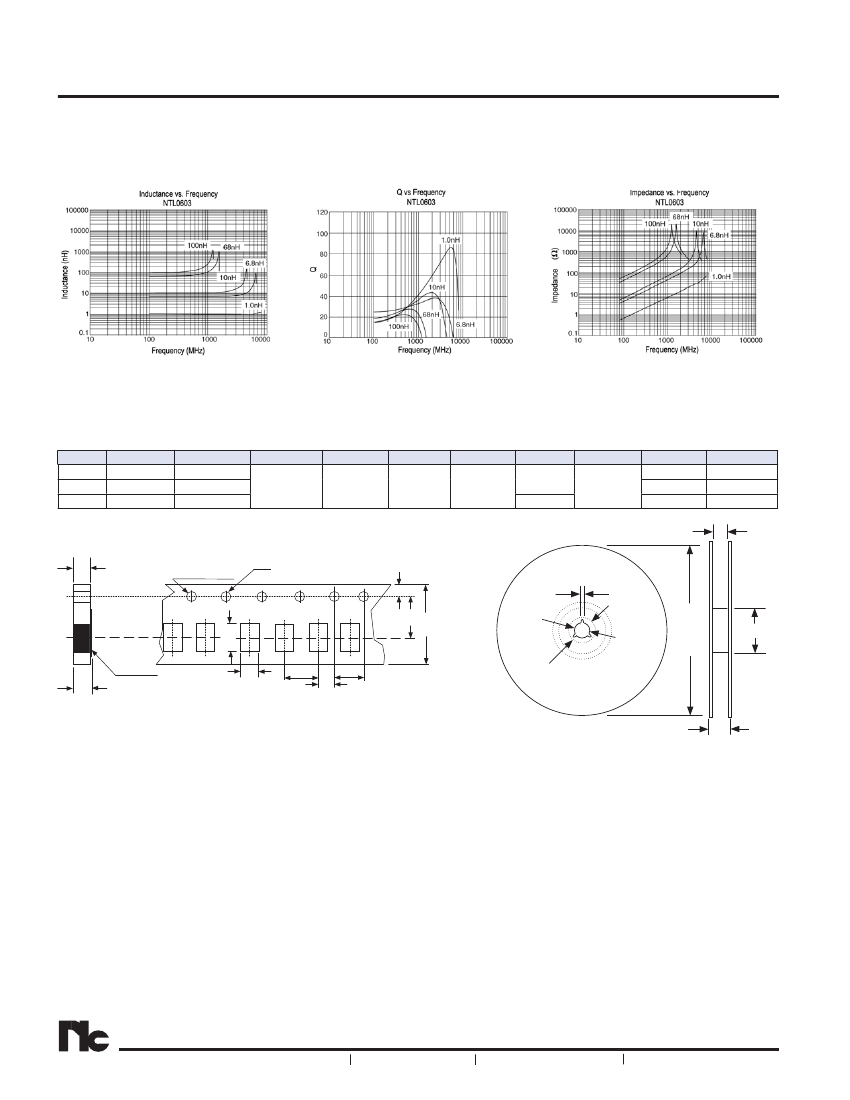

FREQUENCY CHARACTERISTICS - NTL0402
®
Cover Tape
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
s
0.10
0.15
0.15
0.15
0.20
0.20
0.25
0.5
0.5
0.5
1.0
1.0
1.0
1.5
1.5
2.0
2.0
3.0
3.0
4.0
4.5
6.0
8.5
www.SMTmagnetics.com
