UL15L4S4V30QJ1: DescriptionRocker Switch, SPDT, On-(on), Momentary, 7 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size254KB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

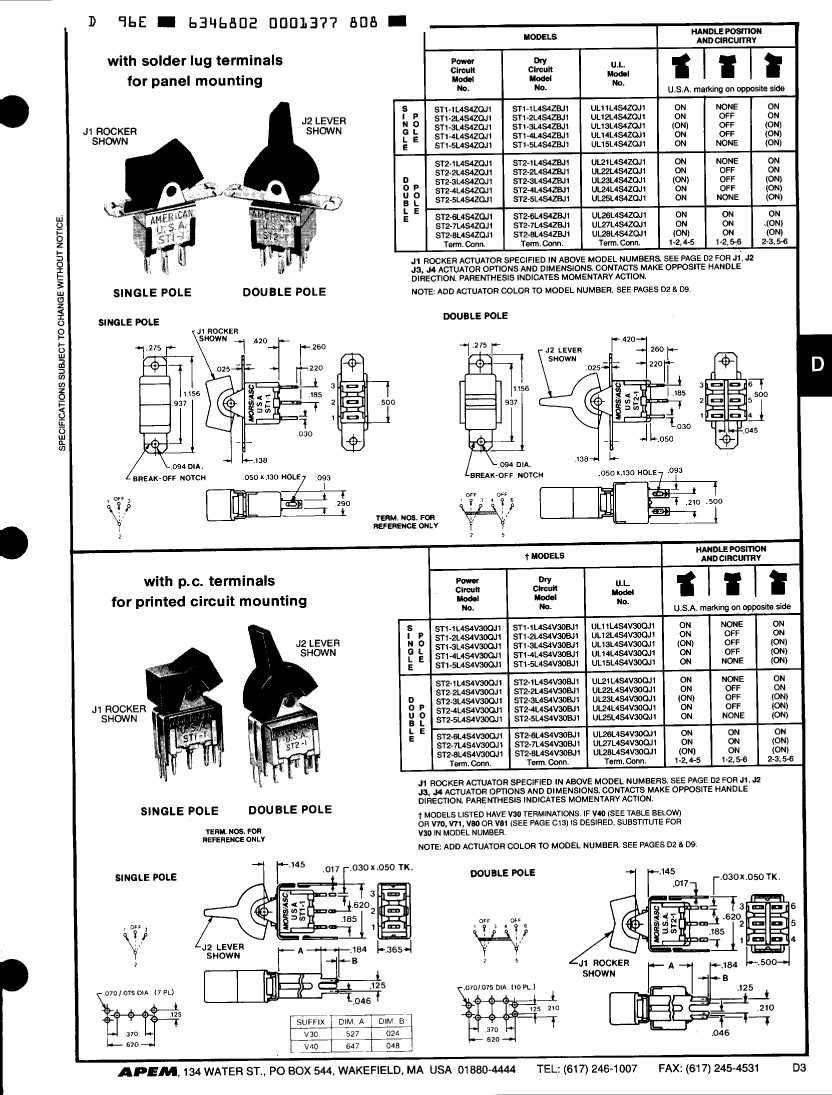

UL15L4S4V30QJ1 Overview

Rocker Switch, SPDT, On-(on), Momentary, 7 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight

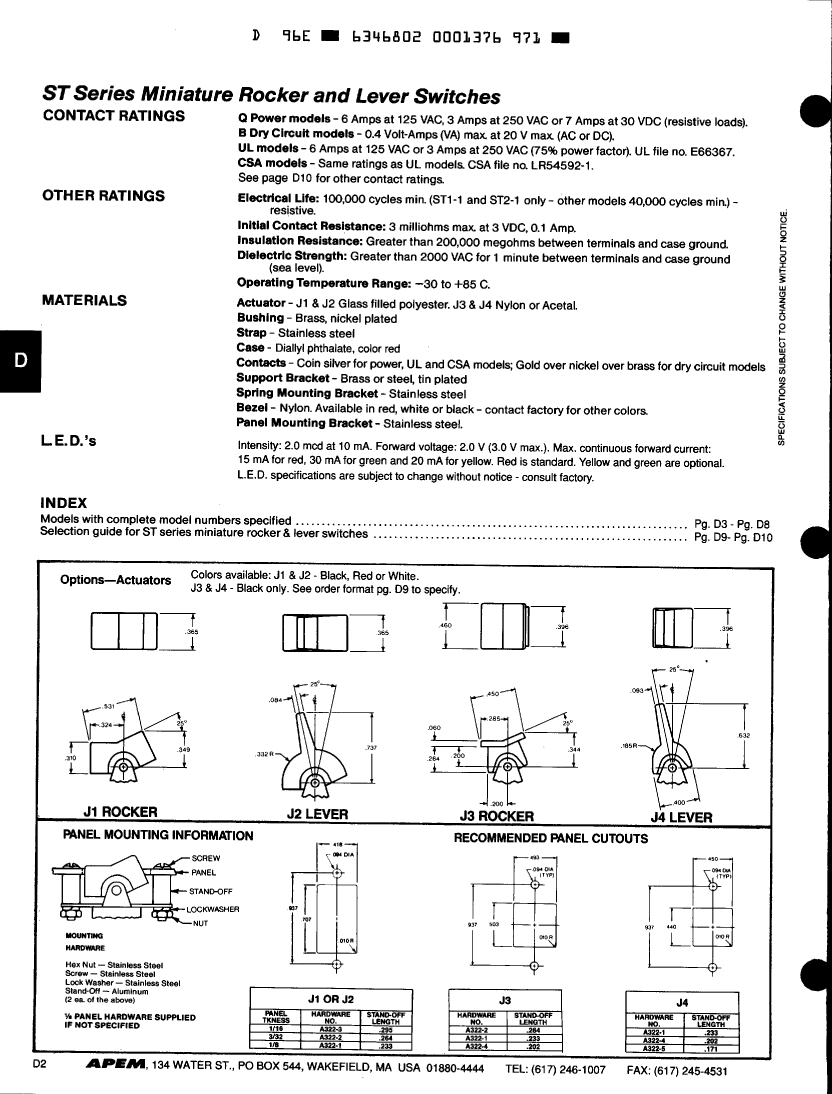

Parameter Name	Attribute value
Objectid	302805355
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Actuator length	0.349 inch
Actuator material	GLASS FILLED POLYESTER
Actuator type	ROCKER
body width	9.271 mm
Body color	RED
body height	30.607 mm
Body length or diameter	15.748 mm
center contact material	SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Contact function	ON-(ON)
Contact resistance	0.003 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	2000VAC V
Electrical life	100000 Cycle(s)
End contact material	SILVER
Insulation resistance	200000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	UL
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	7
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length	0.16 inch
Termination type	SOLDER
