The RFC092 is specifically designed for up to 1GHz in frequency as amplifiers in BTS.
This hybrid dynamic range amplifier module operates with a single voltage supply of 24V(DC).
Electrical Specifications
@ V
DD
= 24V, T
A
= 25°C
PARAMETER
Operating Frequency
Gain
Gain Flatness
Input / Output VSWR
Power Output 1dB Comp
IMD3
Δ
750KHz
Δ
1.98MHz
UNIT
MHz
dB
dB
dB
dBm
dBm
MIN
800
-
-
-
29
56
29
dBm
44
dB
mA
-
-
-
4
400
-
7
430
TYP
-
23
-
1.5 : 1
30
60
-
MAX
1000
-
±0.5
2.0 : 1
-
-
-
CONDITION
-
-
-
-
-
Total Pout = 23dBm.
Tone spacing 1MHz -
Po = 22dBm Avg.
PAR 10.7dB.
-
-
CDMA
1FA
Noise Figure
Supply Current
Absolute Maximum Ratings
PARAMETER
V
DD
/ V
RFOUT
RF
IN
Storage Temperature
Operating Temperature
UNIT
VDC
dBm
°C
°C
MIN
0
-
-40
-20
TYP
-
-
-
-
MAX
28
22
100
100
CONDITION
-
Single Tone
-
-
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
1
/
6
All specifications may change without notice
Version 6.0
Celluler Mini Amplifier
S-Parameters
RFC092

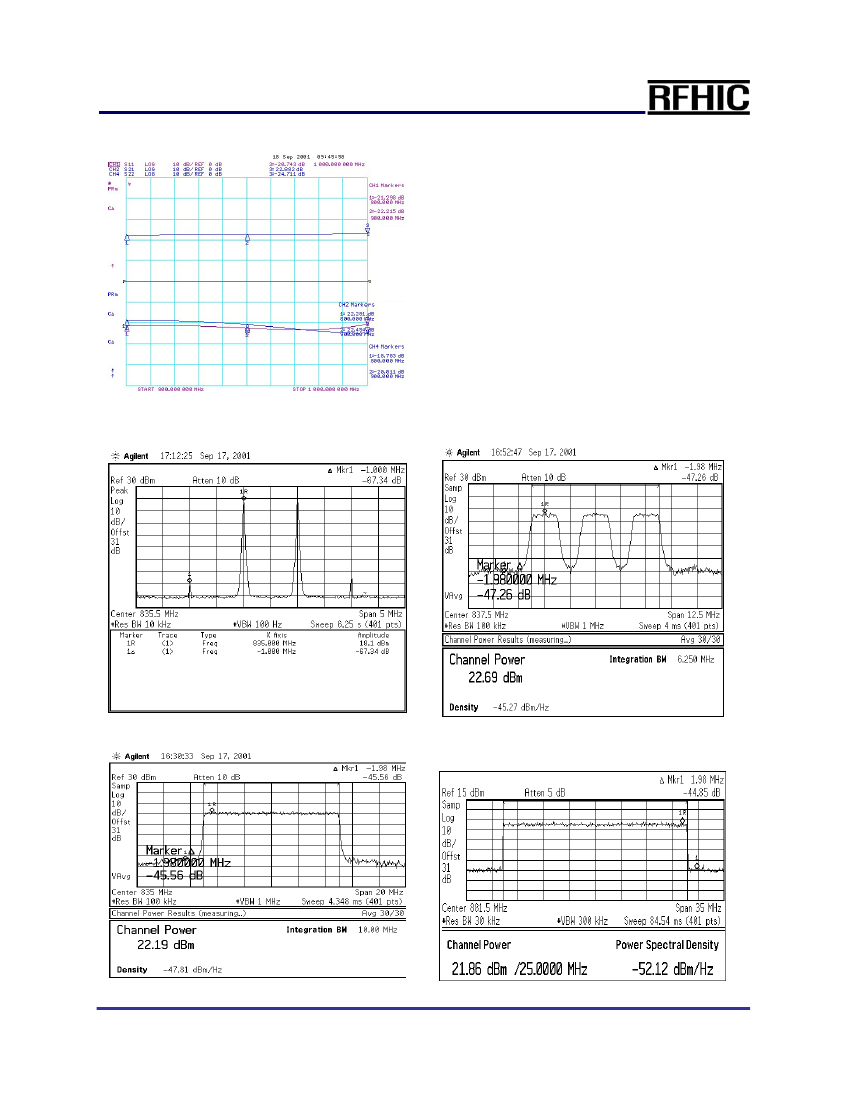

IMD3
CDMA 3FA Test
CDMA 8FA Test
CDMA 20FA Test
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
2
/
6
All specifications may change without notice
Version 6.0
Celluler Mini Amplifier
RFC092

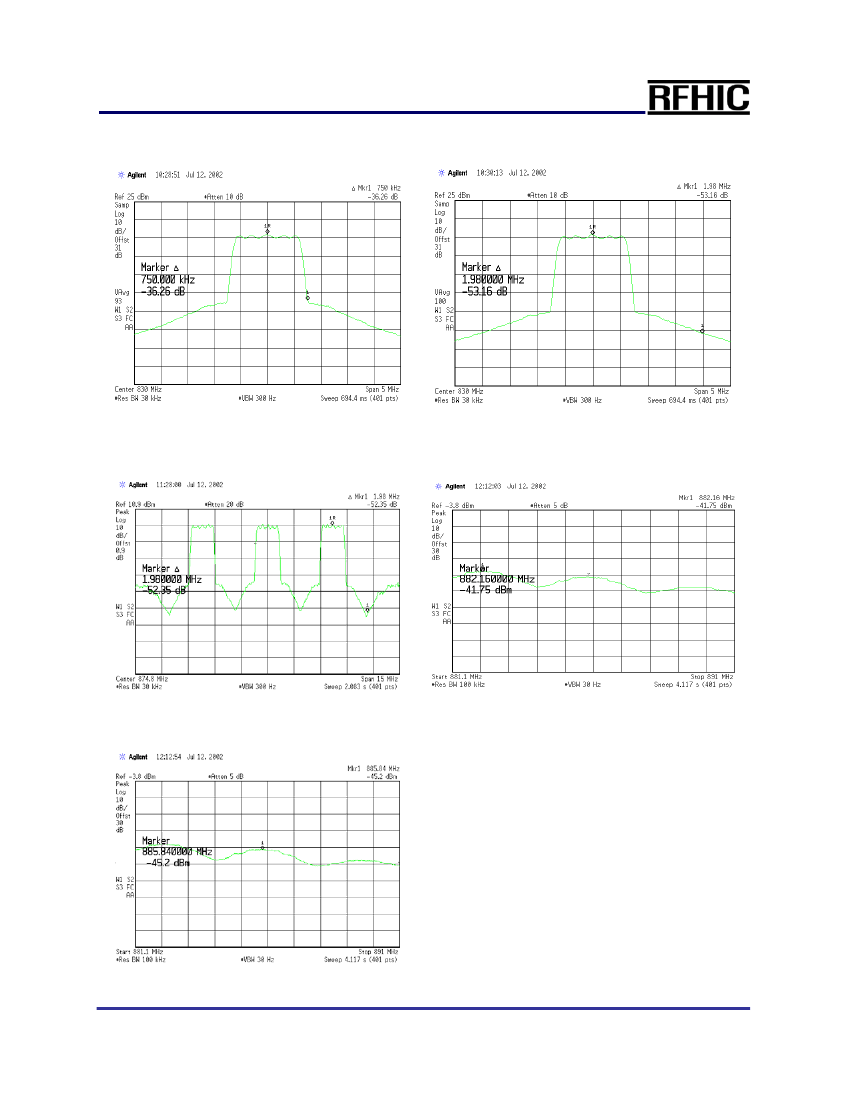

1FA Data : At Output Power 22.5dBm
3FA Data : At Output Power 21.5dBm
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
3
/
6
All specifications may change without notice
Version 6.0
Celluler Mini Amplifier
Note for Correct Use
RFC092
1. On the power input port (Pin#5), 47uF/35V capacitor GND is
recommended.
2. The heat sink of CATV Hybrids is to be mounted in direct contact with the
metal case of the equipment. Heat conducting grease should be applied to
the module/equipment interface and the unit tightly secured.
3. Put the power off before adjusting in/output matching of the system.
4. The unit must have a common ground with the equipment and the analyzer.
5. Pay close attention to the input voltage not to over power the hybrid.
6. The space between bottom of socket and the tip of the lead is recommended
to have space of 2mm+ to protect the pin.
7. Do not open the plastic cover to change the matching inside the hybrid.
Once opened, RFHIC will not be responsible for the hybrid.
ESD Protection
Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper
ESD control techniques should be used when handling these devices. Some of the precautions recommended are;
- Person at a workbench should be earthed via a wrist strap and a resistor.
- All mains-powered equipment should be connected to the mains via an earth-leakage switch.
- Equipment cases should be grounded.
- Relative humidity should be maintained between 40% and 50%.
- An ionizer is recommended.
Keep static materials, such as plastic envelopes and plastic trays etc. away from the workbench.
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
4
/
6
All specifications may change without notice
Version 6.0
Celluler Mini Amplifier

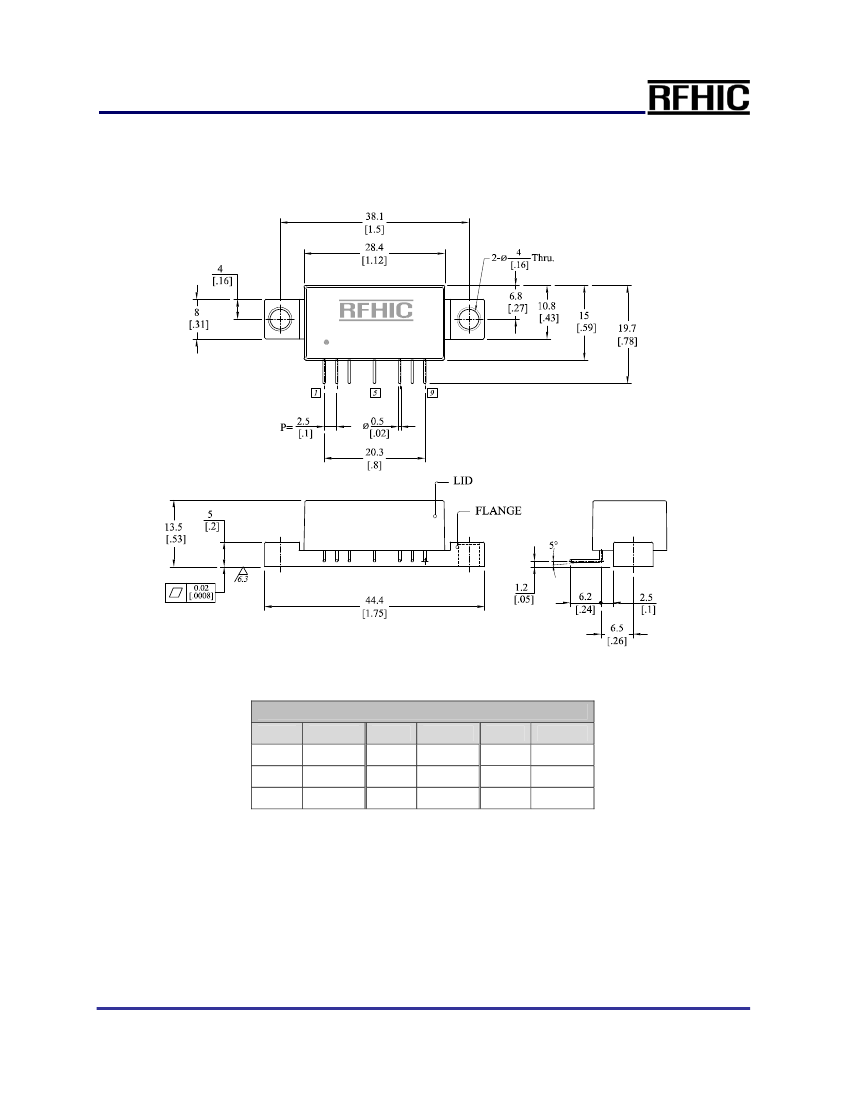

Package Dimensions
(Type: DP-27)
RFC092
* Unit: mm[inch] | Tolerance:
±0.2[.008]
▲
Top View
▲
Front View
▲
Side View
Pin Description
Pin No Function Pin No Function Pin No Function
1
2
3
RF Input
GND
GND
4
5
6
-
Vcc
-
7
8
9
GND
GND
RF Output
* Mounting Configuration Notes
1. Ground / thermal via holes are critical for the proper performance of this device.
2. Add as much copper as possible to inner and outer layers near the part to ensure optimal thermal performance.
3. Mounting screws can be added near the part to fasten the board to a heatsink. Ensure that the ground / thermal via hole region contacts the heatsink.
4. Do not put solder mask on the backside of the PCB in the region where the board contacts the heatsink.
5. RF trace width depends upon the PCB material and construction.
6. Use 1 oz. Copper minimum.
