154567: Description48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

154567 Overview

48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

154567 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Board mount options	PEG
body width	0.606 inch
subject depth	0.53 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	48
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

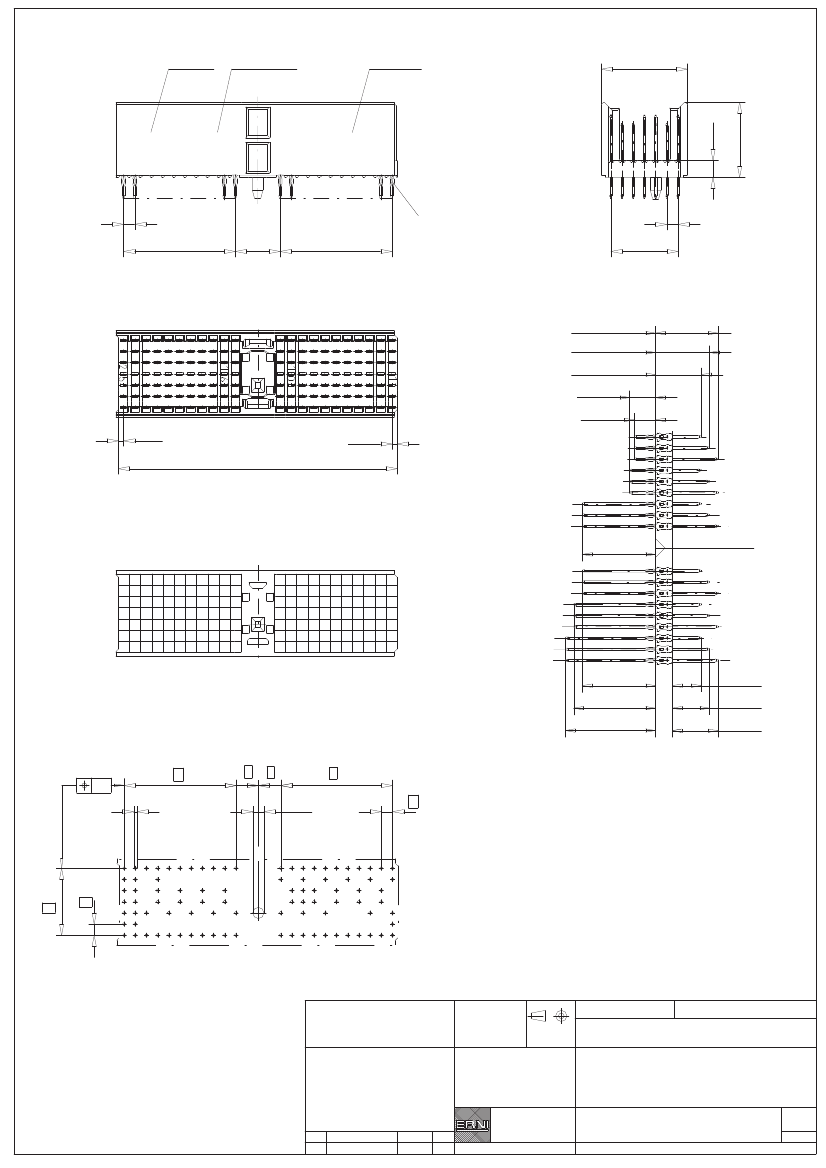

Ident-Nr.

Firmensignet

Date Code

15,4

2

10 x 2 = 20

8

10 x 2 = 20

EE-Zone für durchkontaktierte

Löcher ø0.6±0.05

compliant zone for thru hole

ø0.6±0.05

2

6x2=

12

25

15

11

1

z

a

b

c

d

e

f

Ebene -

Level 3

Level 2

11.2

9.7

8.2

+0.2

Ebene - Level 1

+0.2

4.5

±0.3

3.7

±0.3

A

1 max

50 max

1 max

P2

P1

U

1

B

C

D

E

F

G

H

J

Bestückungsplan -

contact layout

11 10 9

8

7

6

5

4

3

2

1

13

±0.3

Bezugsebene Tiefe

Datum plane depth

K

25 24 23 22 21 20 19 18 17 16 15

C

B

C

C C C C C C C C C C

B

C

B

B C

C

B

C C C C C C C C C C

C C C C C C C C C C C

z

B

a

b

B B B

B

c

B B B

B

C

A

C

B

d

B

e

C C C C C C C C C C C

f

R3

R2

R1

13

±0.2

14.5

±0.2

16

±0.2

L

M

N

P

Q

R

S

T

5.3

±0.1

6.8

8.3

±0.1

Lochbild für Leiterplatte

(Bestückungsseite)

Board hole pattern

(Component mounting side)

0.1

alle Löcher

all holes

10 x 2 = ( 20 )

1)

4

2

10 x 2 = ( 20 )

+0,05

nicht

2

1)

ø 0,6

±0,05

Durchmesser des metallisierten Loches

ø 0,6

ø 0,7

±0,05

±0,02

durchkontaktiert

not plated thru

25

15

13

11

1

z

Diameter of finished plated-through hole

Bohrungsdurchmesser des Loches

Diameter of drilled hole

ø 0,7

a

b

c

d

e

f

6 x 2 = ( 12 )

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Maße und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

2

Information: P2 Level 1, 2, 3

siehe Bestückungsplan/

see contact layout

Anforderungsstufe 2 /

class 2

Consider protection memo from DIN 34

Tolerances

All Dimensions

in mm

Scale

2:1

Angaben zu entsprechender Ident-Nr. siehe Fertigungsunterlagen

For further information about I.D.number see manufacturing document

Designation

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

ERmet Messerleiste A

ERmet Male Wide Type A

Elektroapparate GmbH

D-73099 ADELBERG

154567

ERMA

13,45

-0,1

3

-0,1

Index

XXXXXXX

Date

V:00026939.SZN

ERNI

154567

I
