BSW-120-24-H-D-S

Description
Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size134KB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

BSW-120-24-H-D-S Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

BSW-120-24-H-D-S Parametric

Parameter NameAttribute value
Objectid2094104891
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.4 inch
subject depth0.35 inch
body length2.03 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1400VAC V
maximum insertion force2.224 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
Manufacturer's serial numberBSW-1
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.17 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts40
Evacuation force-minimum value2.224 N
REVISION AL
DO NOT
SCALE FROM
THIS PRINT
BSW-1XX-X4-X-X-X
No OF POSITIONS
-02 THRU -36 (PER ROW)
LEAD STYLE
-04: C-8-5-X
(STANDARD I/W FORCES)
-24: C-17-5-X
(LOW I/W FORCES)
C
OPTION
-S: STANDOFFS
(USE BSW-36-X-S,
SEE TABLE 1)
ROW SPECIFICATION
SEE TABLE 1
((No OF POS x .10[2.5])
+.02[.5])
2 MAX SWAY
(EITHER DIRECTION)
.060 1.52
(SEE NOTE 4)
PLATING SPECIFICATION
-G: 20µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL (STYLE -04 ONLY)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL
(STYLE -04 ONLY)
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL
"D"±.010
.350 8.89 REF
-D/-S/-M
BSW-36-X-X
C C
L L
C C
L L
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54
REF
C
L
C
L
.100 2.54 REF
.170 4.32
REF
CC
L L
.005 A
.100 2.54 REF
.100 2.54 REF
R.023 0.58
A
"B"
(SEE TABLE 1)
C
C-08-5-X or
C-17-5-X
.30 7.6
.200 5.08
REF
-S
-M
.250 6.35
REF
-D
.400 10.16
REF
CONTACT
SCALE 1.5:1
CRITICAL 1 DIMMENSION MUST BE VERIFIED AT
BEGINNING, MIDDLE, AND END OF EACH LOT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 3lbs.
3. MAXIMUM ALLOWABLE BOW: T/B .003[.08] INCH/INCH,
S/S .008[0.20] INCH/INCH AFTER ASSEMBLY.
4. "END WALLS" AFTER CUTTING SHOULD BE .023[.58]
5. MAXIMUM CUT FLASH: .010[.25].
6. THE IDENTIFICATION SIDE IS TO BE DOWN OR AGAINST
THE FORM TOOLING.
FINAL ASSEMBLY
POSITION NUMBER LAYOUT
72
02
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
01
-S/-S-S
50
01
-M
50
71
-D/-D-S
01
MATERIAL:
INSULATOR: PET, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 2:1

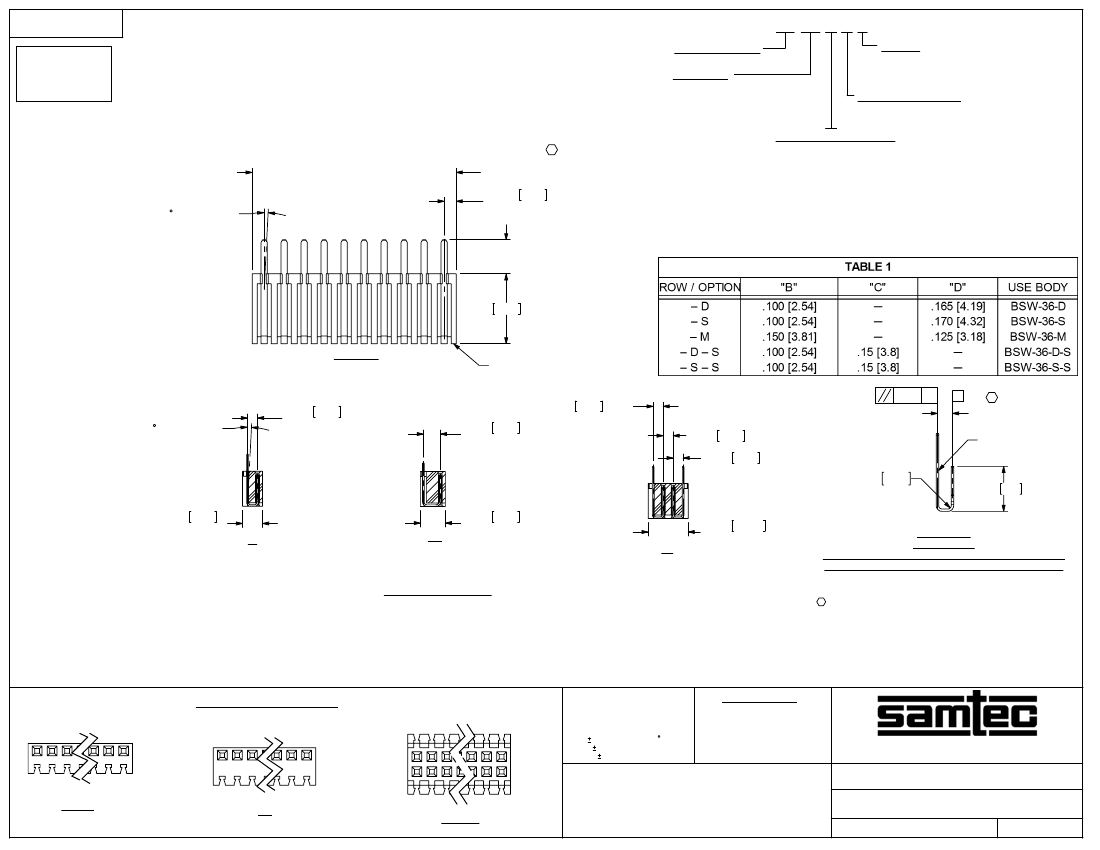

.100 BOTTOM MOUNT SOCKET ASSEMBLY
BSW-1XX-X4-X-X-X
03/31/1998
SHEET
1
OF
2
F:\DWG\MISC\MKTG\BSW-1XX-X4-X-X-X-MKT.SLDDRW
BY:
PURVIS
