LCW-110-08-S-M-300 datasheet, PDF

Datasheet> All Categories > The connector> The connector> LCW-110-08-S-M-300

LCW-110-08-S-M-300: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

LCW-110-08-S-M-300 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

LCW-110-08-S-M-300 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1155535008
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	LOCKING CLIP REMOVED
body width	0.2 inch
subject depth	0.31 inch
body length	1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
Manufacturer's serial number	LCW
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

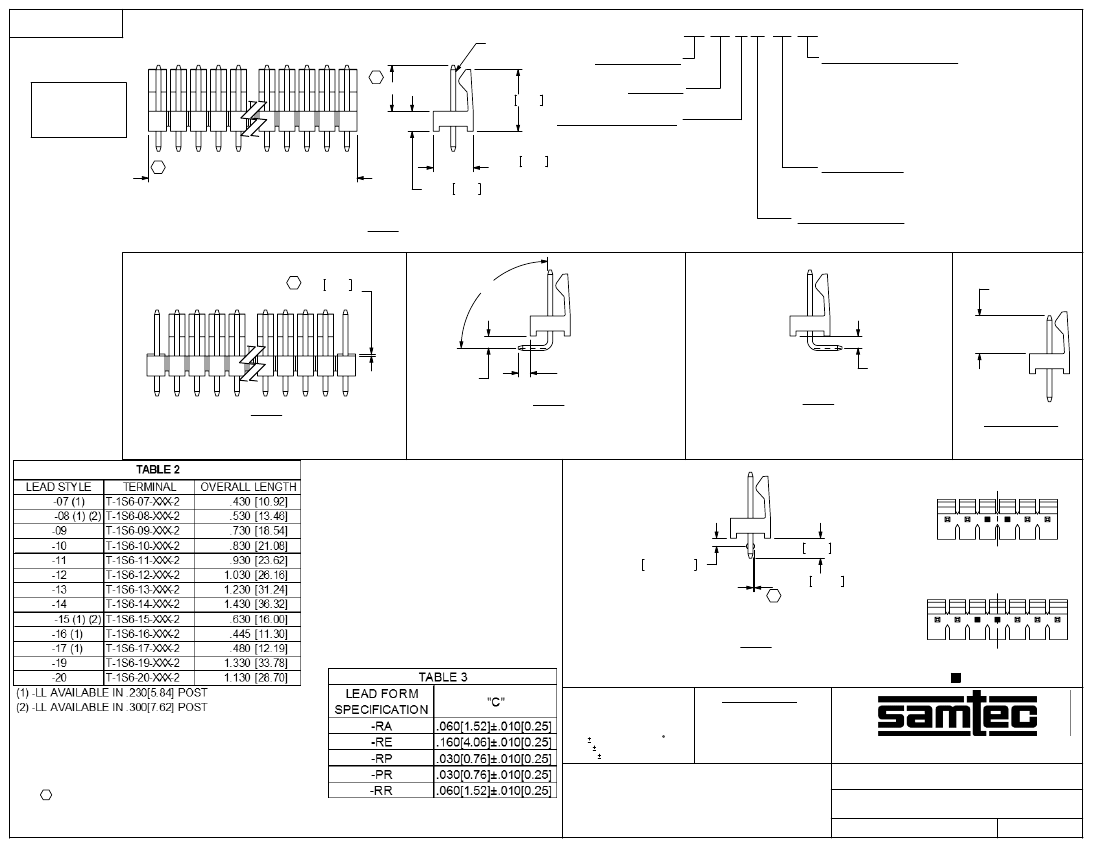

REVISION AA

DO NOT

SCALE FROM

THIS PRINT

"B"

CONTACT AREA

LCW-1XX-XX-X-X-XXX-XX

No OF POSITIONS

-01 THRU -36

LEAD STYLE

(SEE TABLE 2)

LEAD FORM SPECIFICATION

BLANK: SEE FIG 1

RA: SEE FIG 3

RE: SEE FIG 3

RP: SEE FIG 3 & IN-PROCESS

PR: SEE FIG 4 & IN-PROCESS

RR: SEE FIG 4

LL: SEE FIG 5 (N/A ON 1 & 2 POSITIONS OR ANY

RX OR XR LEAD STYLES)

XX: INDICATES POSITION TO BE OMITTED.

POST LENGTH "B"

-230: .230[5.84]

-300: .300[7.62]

(-300 NOT AVAILABLE IN -7, -16, OR -17 LEAD STYLES

BODY SPECIFICATION

-S: SINGLE (USE LCW-36-S)

-M: SINGLE MODIFIED, SEE FIG 2 (USE LCW-36-S)

.310 7.87

PLATING SPECIFICATION

-G: 10µ" SELECTIVE GOLD IN CONTACT

AREA, 3µ" SELECTIVE GOLD ON TAIL.

-T: MATTE TIN ON CONTACT AND TAIL.

.200 5.08 -S: 30µ" SELECTIVE GOLD IN CONTACT

REF

AREA, MATTE TIN ON TAIL.

(NO OF POS x .100[2.54])±.010[0.25]

-L: 10µ" SELECTIVE GOLD IN CONTACT

.100 2.54 REF

AREA, MATTE TIN ON TAIL.

-H: 30µ" SELECTIVE GOLD IN CONTACT

AREA, 3µ" SELECTIVE GOLD ON TAIL.

FIG 1

-F: 3µ" SELECTIVE GOLD IN CONTACT

LCW-1XX-X-XX-S-230 SHOWN

AREA, MATTE TIN ON TAIL.

C .010 0.25

MAX

90°

"B" - .040[1.02]

"C"

"D" REF

"C"

-M: SINGLE MODIFIED

LCW-1XX-X-XX-M-XXX SHOWN

(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)

FIG 2

-PR AND -RR OPTION

-RA, -RE, AND -RP OPTION

LCW-1XX-X-XX-S-XXX-RR SHOWN

LCW-1XX-X-XX-S-XXX-RA SHOWN

(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1) (DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 3)

(SEE TABLE 3)

FIG 3

FIG 4

FOR RP &PR ONLY

IN-PROCESS

.300 7.62 MAX

.040±.010 1.02±0.25

.0080 0.203

(TYP)

EVEN POSITIONS

-LL: LOCKING LEAD

LCW-1XX-X-XX-S-XXX-LL SHOWN

(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

FIG 5

ODD POSITIONS

= CRIMP LOCATION

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

"D" = OVERALL LENGTH - "B" -"C" -.180

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE: 3 LBS.

3. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS: .010[0.25]

.XX: .01 [0.3]

.XXX: .005 [0.13]

.XXXX: .0020 [0.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: PBT, UL 94 VO, COLOR: BLACK

TERMINAL: PHOS BRONZE

LOCK CLIP WIREWRAP ASSEMBLY

C:\EnterpriseVault\DWG\MISC\MKTG\LCW-1XX-XX-X-X-XXX-XX-MKT.SLDDRW

BY:

L WILLIAMS 01/11/1985

LCW-1XX-XX-X-X-XXX-XX

SHEET
