114153 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 114153

114153: Description169 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

114153 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	114153	-	-	View	Buy Now

114153 Overview

169 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

114153 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
Samacsys Descripti	Hard Metric Connectors 125P 2MM SHLD VERT MALE TYPE AB BCKPLN
Other features	44 GROUND SHIELD CONTACTS ALSO AVAILABLE IN 2 ROWS
body width	0.606 inch
subject depth	0.53 inch
body length	1.969 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	169
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

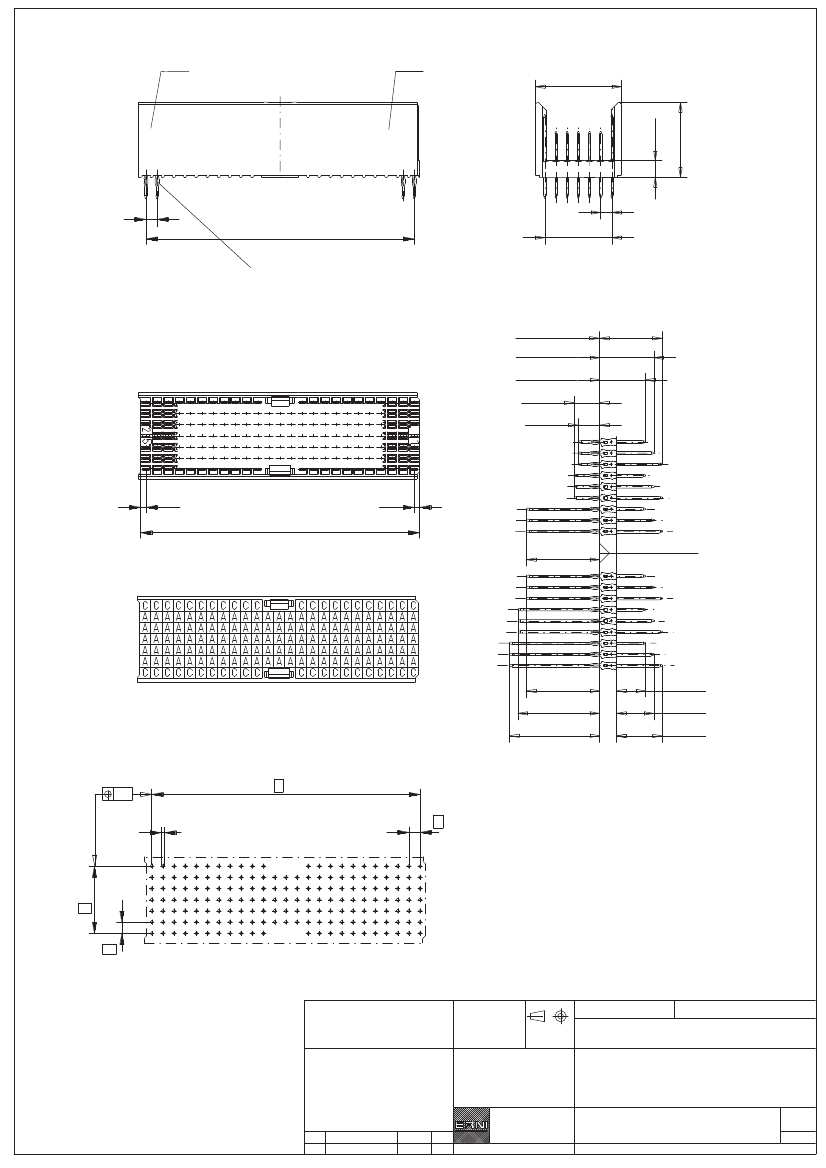

Id.-Nr.

Date Code

15.4

24 x 2 =

6x2=

EE Zone fuer durchkontaktierte

Loecher ø0.6

±0.05

compliant zone for thru hole

ø 0.6±0.05

Ebene -

Level 3

Level 2

11.2

9.7

8.2

+0.2

Ebene - Level 1

+0.2

4.5

±0.3

3.7

±0.3

1max

50 max

1max

Bezugsebene Tiefe

Datum plane depth

Bestueckungsplan -

contact layout

25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

±0.2

14.5

±0.2

5.3

±0.1

6.8

8.3

±0.1

Lochbild fuer Leiterplatte

(Bestueckungsseite)

Board hole pattern

(Component mounting side )

±0.2

0.1

alle Löcher

all holes

24 x 2 =

(48 )

1) ø 0,6

ø 0,6

ø 0,7

±0,05

±0,02

Durchmesser des metallisierten Loches

Diameter of finished plated-through hole

Bohrungsdurchmesser des Loches

Diameter of drilled hole

(12)

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Masse und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

6x2=

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Consider protection memo from DIN 34

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

ERmet Messerleiste AB

ERmet Male Wide Type AB

Elektroapparate GmbH

D-73099 ADELBERG

M:00020064.SZN

Index

16.05.2001

Date

114153

13.45

-0.1

XXXXXXX

ERNI

114153
