TSC25C25AEPE datasheet, PDF - EEWORLD Datasheet

TSC25C25AEPE: DescriptionSwitching Regulator/Controller, Voltage-mode, 0.1A, 700kHz Switching Freq-Max, BICMOS, PDIP16,; CategoryPower/power management The power supply circuit; File Size474KB，7 Pages; ManufacturerTelCom Semiconductor, Inc. (Microchip Technology); Websitehttp://www.telcom-semi.com/

Download Datasheet Parametric Compare View All

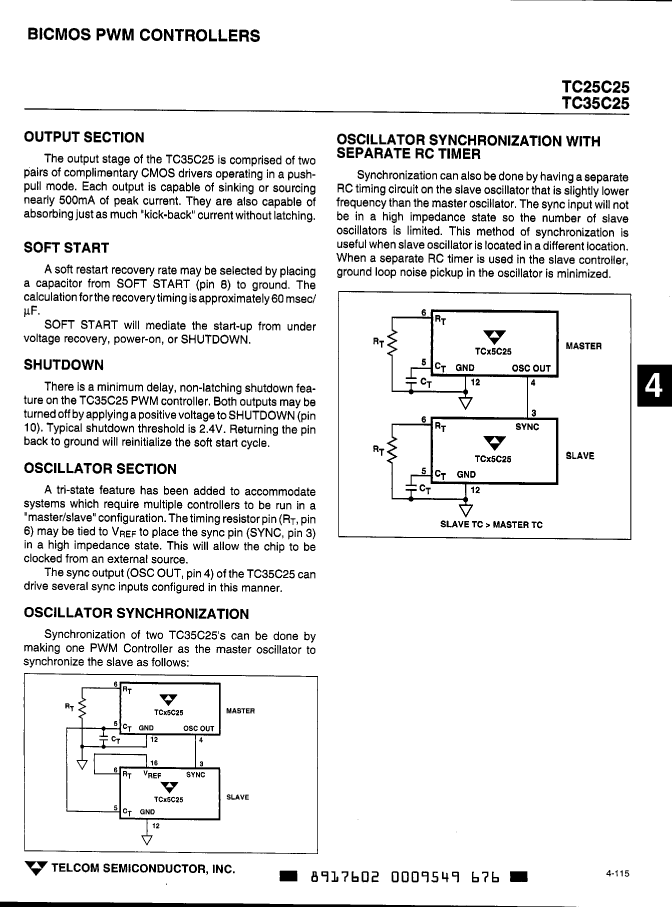

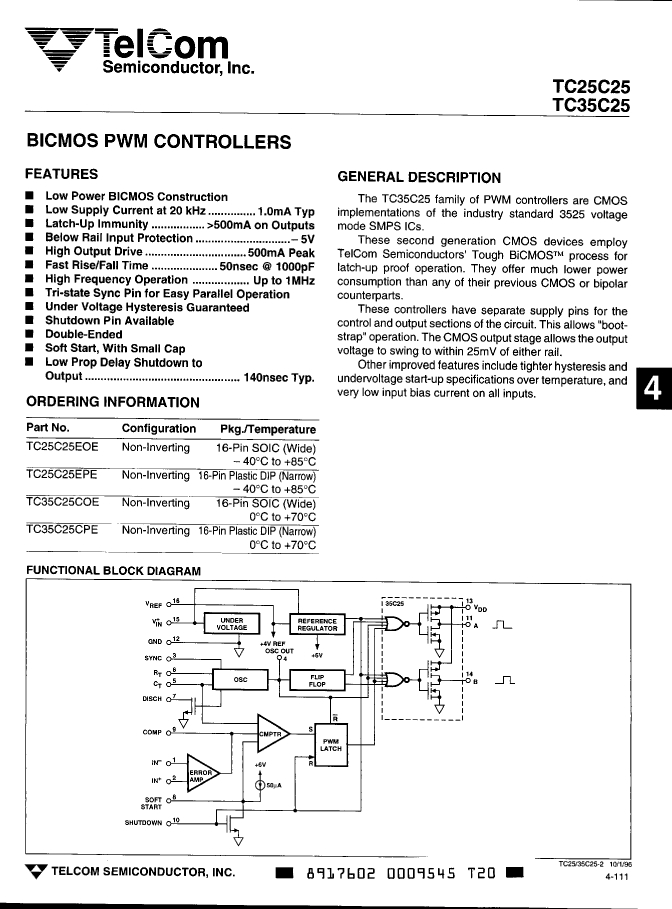

TSC25C25AEPE Overview

Switching Regulator/Controller, Voltage-mode, 0.1A, 700kHz Switching Freq-Max, BICMOS, PDIP16,

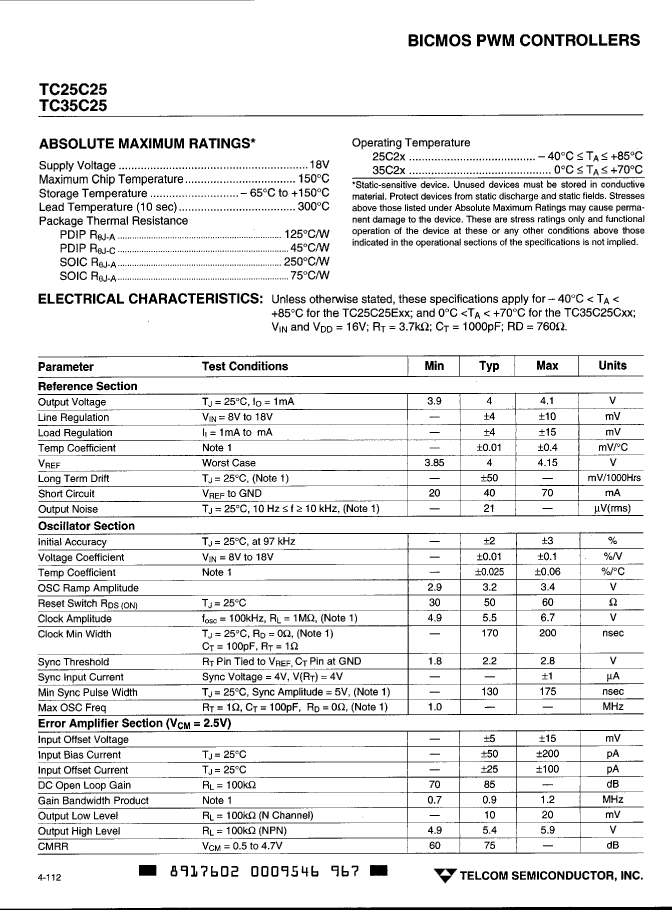

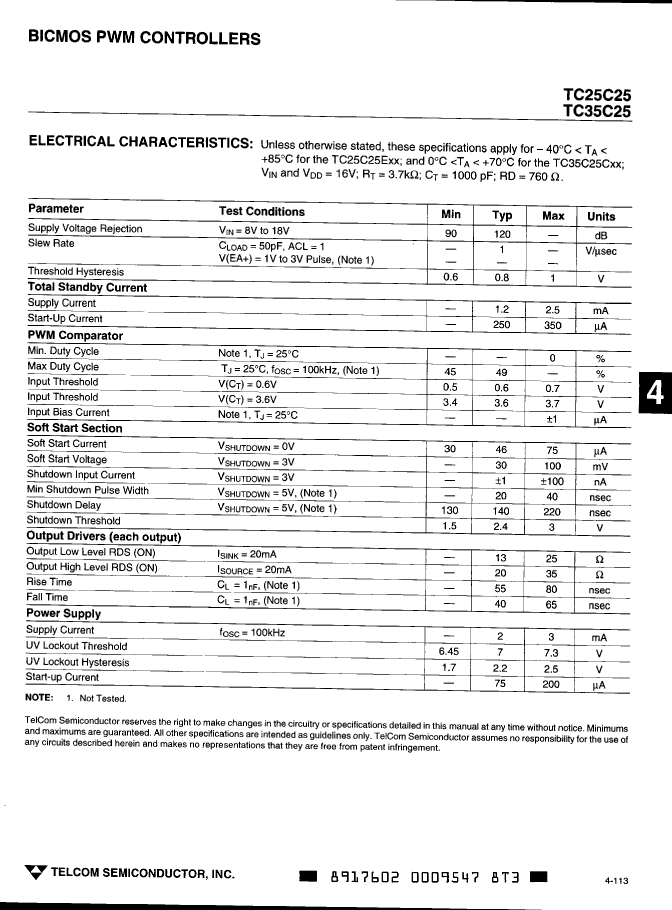

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100051741

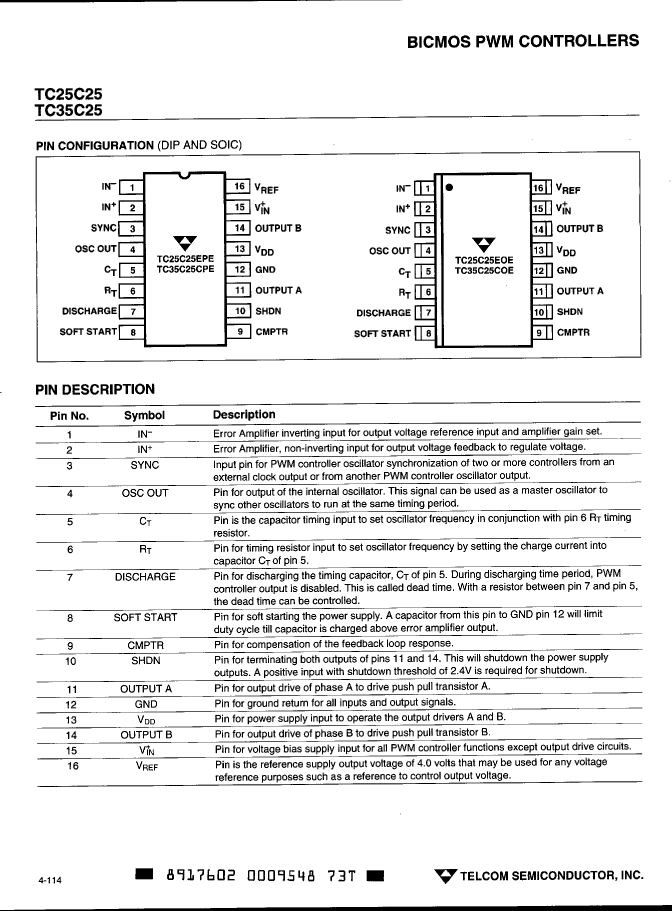

package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
control mode	VOLTAGE-MODE
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Maximum switching frequency	700 kHz
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	TSC25C25AEPE	TSC25C25AEJE
Description	Switching Regulator/Controller, Voltage-mode, 0.1A, 700kHz Switching Freq-Max, BICMOS, PDIP16,	Switching Regulator/Controller, Voltage-mode, 0.1A, 700kHz Switching Freq-Max, BICMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible
Objectid	100051741	100051733
package instruction	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
control mode	VOLTAGE-MODE	VOLTAGE-MODE
JESD-30 code	R-PDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	0.1 A	0.1 A
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Maximum switching frequency	700 kHz	700 kHz
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
