KME
Series
Miniature
General Purpose
Solvent Proof
105 C
Maximum
Temperature
MINIATURE -105 C
KME
Actual Size

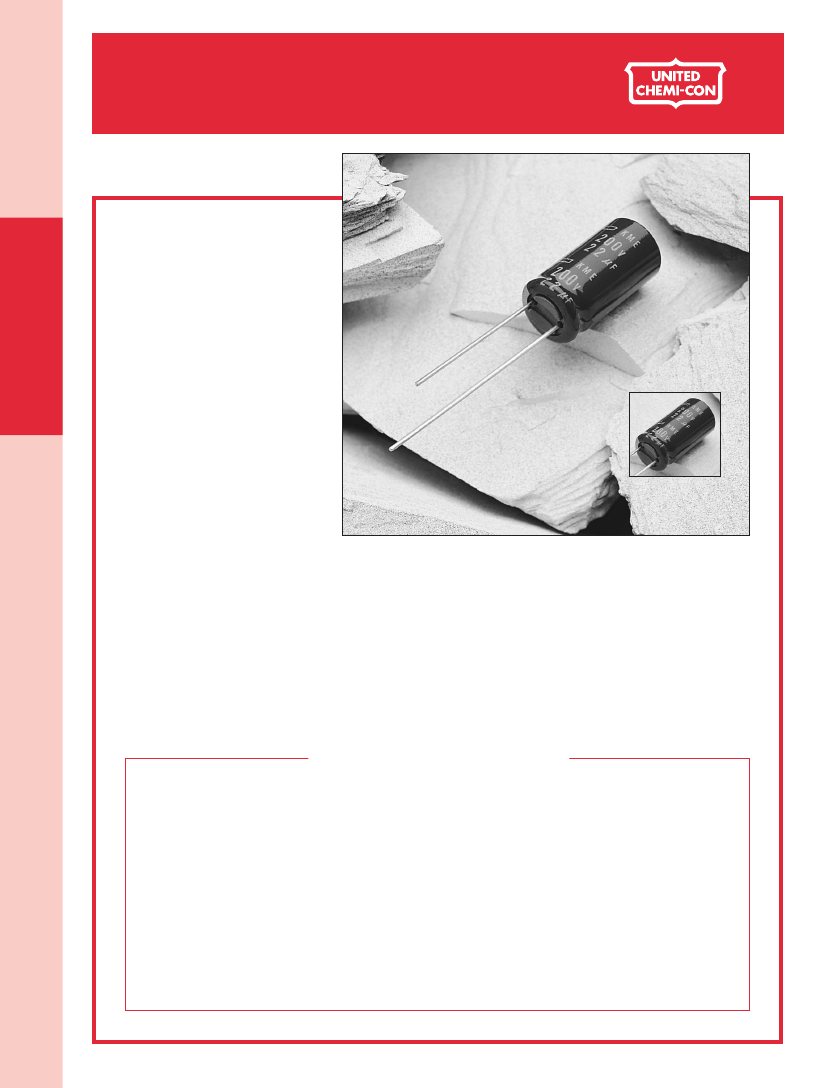

The KME series capacitors are our standard general purpose capacitors. These radial lead capacitors
are available in a wide range of voltage and capacitance ratings and have a rated lifetime of 1,000
hours with the rated ripple current applied. The KME series capacitors with working voltage of 100 or
under also have a very low DC leakage current, .002CV or 2 A, whichever is greater after 2 minutes
at 20 C.
The KME series capacitors,
except for those rated at 350-400 volts,
were developed to withstand
HCFC cleaning agents for five minutes by ultrasonic, vapor or immersion. This solvent proof design
allows all circuit board components to be cleaned together, at the same time, without resorting
to more expensive epoxy end-sealed capacitors. Refer to the Mini-Glossary for recommended
cleaning conditions.
Summary of Specifications
Radial lead terminals.
Capacitance range: 0.1 to 15,000µF.
Voltage range: 6.3 to 400VDC.
Operating temperature range: 55 C to 105 C for 6.3 to 100V; 40 C to 105 C
for 160 to 400V.
Leakage current: See specifications table for leakage current values at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 5 11mm to 18 40mm.
Rated lifetime: 1,000 hours at 105 C with the rated ripple current applied.
150
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KME Series
KME Specifications
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
At
55 to 105 C for 6.3 to 100VDC;
6.3 to 400VDC
0.1 to 15,000 F
20% ( M ) at
20 C
DC Rated Voltage
6.3 -100V
160 - 400V
Test Time
After 2 minutes
After 1 minute
After 5 minutes
I
CV
≤
1,000: I
CV
≤
1,000: I
Leakage Current ( A )
0.002CV or 2 A, whichever is greater.
0.1CV 40
0.03CV 15
CV >1,000: I
CV >1,000: I
0.04CV 100
0.02CV 25
Characteristics
40 to 105 C for 160 to 400VDC
20 C, 120Hz
MINIATURE -105 C
Where I = Leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
KME
Dissipation Factor ( Tan )
At
20 C, 120Hz
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
100
0.08
160 - 250
0.20
350 - 400
0.24
Rated Voltage ( V )
Tan
( DF )
When nominal capacitance exceeds 1,000 F, add 0.02 to the values above for each 1,000 F increase.
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
Z ( 40 C ) / Z ( 20 C )
6.3
4
8
10
3
6
16
2
4
25 C or
25
2
3
35
2
3
40 C value and
50
2
3
63 -100
2
3
20 C value shall not
160 - 250 350 - 400
3
4
6
6
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature ( C )
85 C
1.75
105 C
1.00
Frequency (Hz )
Capacitance ( F )
≤
3.3 F
4.7- 33 F
47-1000 F
≥
2200 F
50Hz
0.65
0.75
0.80
0.85
120Hz
1.00
1.00
1.00
1.00
300Hz
1.35
1.25
1.15
1.03
1kHz
1.75
1.50
1.30
1.05
10kHz
2.30
1.75
1.40
1.08
100kHz
2.50
1.80
1.50
1.08
Load Life
The following specifications shall be satisfied when the capacitors are restored to 20 C
after subjecting them to the DC rated voltage for 1,000 hours at 105 C with the rated ripple
current applied. The sum of DC voltage and peak AC voltage must not exceed the full rated
voltage of the capacitors.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value for 6.3 -100V
:
≤
500% of initial specified value for 160 - 400V
Others
Satisfies characteristic W of JIS C5141
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
151
KME Series
Diagram of Dimensions
VB/Radial Lead
Unit: mm
PVC Sleeve
d
D
'
D
F
F
F
F
L
Vent
(Except 5)
L
'
15
MIN.
4
MIN.
5~ 8
10
12.5 ~ 18
MINIATURE -105 C
KME
Gas escape end seal for all case diameters.
For optional lead configurations and tape and ammo
packaging, refer to the beginning of the Miniature section.
Ø
D
5
6.3
8
10, 12.5
16, 18
Ø
D
'
max.
Ø
D
Ø
D
Ø
D
Ø
D
Ø
D
0.5
0.5
0.5
0.5
0.5
L
'
max.
L 1.5
L 1.5
L 1.5
L 1.5
L 1.5
Ø
d
0.5
0.5
0.6
0.6
0.8
F 0.5
2.0
2.5
3.5
5.0
7.5
Part Numbering System for KME Series
KME
200
VB
22R
M
10X20
When ordering, always specify complete catalog number for KME Series.
LL
Lead Length: LL is Standard.
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R22 = .22 F; 2R2 = 2.2 F;
22R = 22 F; 221 = 220 F; 222 = 2,200 F; 223 = 22,000 F ).
Lead Configuration: VB = Radial Lead.
DC Rated Voltage: Expressed in Volts (e.g. 200 = 200WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
( mA rms) at
105 C, 120Hz
54
65
95
160
195
270
460
810
960
1,330
1,500
1,765
2,075
6.3 Volts
8 Volts Surge
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
10,000
15,000
KME6.3VB33RM5X11LL
KME6.3VB47RM5X11LL
KME6.3VB101M5X11LL
KME6.3VB221M6X11LL
KME6.3VB331M6X11LL
KME6.3VB471M8X11LL
KME6.3VB102M10X12LL
KME6.3VB222M12X20LL
KME6.3VB332M12X20LL
KME6.3VB472M16X25LL
KME6.3VB682M16X25LL
KME6.3VB103M16X31LL
KME6.3VB153M18X35LL
5
5
5
6.3
6.3
8
10
12.5
12.5
16
16
16
18
11
11
11
11
11
11.5
12.5
20
20
25
25
31.5
35.5
11.05
7.759
3.647
1.658
1.105
0.776
0.365
0.181
0.131
0.099
0.078
0.066
0.055
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
152
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KME Series
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
( mA rms) at
105 C, 120Hz
49
60
70
105
175
245
290
550
860
1,100
1,400
1,690
1,950
35
54
64
77
125
215
260
370
640
1,000
1,300
1,600
1,900
2,060
26
38
57
69
82
135
230
335
440
770
1,170
1,460
1,780
1,950
28
41
61
75
100
170
300
400
520
920
1,340
1,650
1,900
10 Volts
13 Volts Surge
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
10,000
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
10,000
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
6,800
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
KME10VB22RM5X11LL
KME10VB33RM5X11LL
KME10VB47RM5X11LL
KME10VB101M5X11LL
KME10VB221M6X11LL
KME10VB331M8X11LL
KME10VB471M8X11LL
KME10VB102M10X16LL
KME10VB222M12X20LL
KME10VB332M12X25LL
KME10VB472M16X25LL
KME10VB682M16X31LL
KME10VB103M18X35LL
KME16VB10RM5X11LL
KME16VB22RM5X11LL
KME16VB33RM5X11LL
KME16VB47RM5X11LL
KME16VB101M6X11LL
KME16VB221M8X11LL
KME16VB331M8X11LL
KME16VB471M10X12LL
KME16VB102M10X20LL
KME16VB222M12X25LL
KME16VB332M16X25LL
KME16VB472M16X31LL
KME16VB682M18X35LL
KME16VB103M18X40LL
KME25VB4R7M5X11LL
KME25VB10RM5X11LL
KME25VB22RM5X11LL
KME25VB33RM5X11LL
KME25VB47RM5X11LL
KME25VB101M6X11LL
KME25VB221M8X11LL
KME25VB331M10X12LL
KME25VB471M10X16LL
KME25VB102M12X20LL
KME25VB222M16X25LL
KME25VB332M16X31LL
KME25VB472M18X35LL
KME25VB682M18X40LL
KME35VB4R7M5X11LL
KME35VB10RM5X11LL
KME35VB22RM5X11LL
KME35VB33RM5X11LL
KME35VB47RM6X11LL
KME35VB101M8X11LL
KME35VB221M10X12LL
KME35VB331M10X16LL
KME35VB471M10X20LL
KME35VB102M12X25LL
KME35VB222M16X31LL
KME35VB332M18X35LL
KME35VB472M18X40LL
5
5
5
5
6.3
8
8
10
12.5
12.5
16
16
18
5
5
5
5
6.3
8
8
10
10
12.5
16
16
18
18
5
5
5
5
5
6.3
8
10
10
12.5
16
16
18
18
5
5
5
5
6.3
8
10
10
10
12.5
16
18
18
11
11
11
11
11
11.5
11.5
16
20
25
25
31.5
35.5
11
11
11
11
11
11.5
11.5
12.5
20
25
25
31.5
35.5
40
11
11
11
11
11
11
11.5
12.5
16
20
25
31.5
35.5
40
11
11
11
11
11
11.5
12.5
16
20
25
31.5
35.5
40
14.315
9.543
6.701
3.149
1.431
0.954
0.67
0.315
0.158
0.116
0.088
0.071
0.061
26.52
12.055
8.036
5.643
2.652
1.205
0.804
0.564
0.265
0.136
0.1
0.078
0.063
0.061
49.372
23.205
10.548
7.032
4.937
2.321
1.055
0.703
0.494
0.232
0.121
0.09
0.071
0.059
42.319
19.89
9.041
6.027
4.232
1.989
0.904
0.603
0.423
0.199
0.105
0.08
0.063
MINIATURE -105 C
KME
16 Volts
20 Volts Surge
25 Volts
32 Volts Surge
35 Volts
44 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
153
KME Series
Standard Voltage Ratings - VB/Radial Lead
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
( mA rms) at
105 C, 120Hz
1.3
2.9
4.4
7.0
13
20
25
30
46
68
90
110
180
345
460
610
1,080
1,530
32
50
82
100
135
225
400
540
700
1,210
2.6
5.8
7.8
10
15
23
29
34
56
96
140
180
320
570
700
880
9.0
12
19
26
31
59
95
125
165
270
450
50 Volts
63 Volts Surge
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1,000
2,200
4.7
10
22
33
47
100
220
330
470
1,000
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
KME50VBR10M5X11LL
KME50VBR22M5X11LL
KME50VBR33M5X11LL
KME50VBR47M5X11LL
KME50VB1R0M5X11LL
KME50VB2R2M5X11LL
KME50VB3R3M5X11LL
KME50VB4R7M5X11LL
KME50VB10RM5X11LL
KME50VB22RM5X11LL
KME50VB33RM6X11LL
KME50VB47RM6X11LL
KME50VB101M8X11LL
KME50VB221M10X16LL
KME50VB331M10X20LL
KME50VB471M12X20LL
KME50VB102M16X25LL
KME50VB222M18X35LL
KME63VB4R7M5X11LL
KME63VB10RM5X11LL
KME63VB22RM6X11LL
KME63VB33RM6X11LL
KME63VB47RM8X11LL
KME63VB101M10X12LL
KME63VB221M10X20LL
KME63VB331M12X20LL
KME63VB471M12X25LL
KME63VB102M16X31LL
KME100VBR10M5X11LL
KME100VBR22M5X11LL
KME100VBR33M5X11LL
KME100VBR47M5X11LL
KME100VB1R0M5X11LL
KME100VB2R2M5X11LL
KME100VB3R3M5X11LL
KME100VB4R7M5X11LL
KME100VB10RM6X11LL
KME100VB22RM8X11LL
KME100VB33RM10X12LL
KME100VB47RM10X16LL
KME100VB101M12X20LL
KME100VB221M16X25LL
KME100VB331M16X25LL
KME100VB471M16X31LL
KME160VBR47M6X11LL
KME160VB1R0M6X11LL
KME160VB2R2M6X11LL
KME160VB3R3M8X11LL
KME160VB4R7M8X11LL
KME160VB10RM10X16LL
KME160VB22RM10X20LL
KME160VB33RM12X20LL
KME160VB47RM12X25LL
KME160VB101M16X25LL
KME160VB221M18X35LL
5
5
5
5
5
5
5
5
5
5
6.3
6.3
8
10
10
12.5
16
18
5
5
6.3
6.3
8
10
10
12.5
12.5
16
5
5
5
5
5
5
5
5
6.3
8
10
10
12.5
16
16
16
6.3
6.3
6.3
8
8
10
10
12.5
12.5
16
18
11
11
11
11
11
11
11
11
11
11
11
11
11.5
16
20
20
25
35.5
11
11
11
11
11.5
12.5
20
20
25
31.5
11
11
11
11
11
11
11
11
11
11.5
12.5
16
20
25
25
31.5
11
11
11
11.5
11.5
16
20
20
25
25
35.5
1,657.5
753.409
502.273
352.66
165.75
75.341
50.227
35.266
16.575
7.534
5.023
3.527
1.658
0.753
0.502
0.353
0.166
0.09
31.739
14.918
6.781
4.52
3.174
1.492
0.678
0.452
0.317
0.149
1,326.0
602.727
401.818
282.128
132.6
60.273
40.182
28.213
13.26
6.027
4.018
2.821
1.326
0.603
0.402
0.282
705.319
331.5
150.682
100.455
70.532
33.15
15.068
10.045
7.053
3.315
1.507
MINIATURE -105 C
KME
63 Volts
79 Volts Surge
100 Volts
125 Volts Surge
160 Volts
200 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagram for case sizes with sleeve.
154
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
京公网安备 11010802033920号
EEWORLD
