NMC-M0201NPO1R3-25TRPF datasheet, PDF

Datasheet> All Categories > Passive components> NMC-M0201NPO1R3-25TRPF

NMC-M0201NPO1R3-25TRPF: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.000012 uF, SURFACE MOUNT, 0402; CategoryPassive components; File Size87KB，6 Pages; ManufacturerNIC; Websitehttps://www.niccomp.com

Download Datasheet Parametric View All

NMC-M0201NPO1R3-25TRPF Overview

CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.000012 uF, SURFACE MOUNT, 0402

NMC-M0201NPO1R3-25TRPF Parametric

Parameter Name	Attribute value
negative deviation	5 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
positive deviation	5 %
Rated DC voltage urdc	50 V
Processing package description	CHIP, ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	CERAMIC CAPACITOR
capacitance	1.20E-5 µF
dielectric materials	CERAMIC
jesd_609_code	e3
Manufacturer Series	NMC-M
Installation features	SURFACE MOUNT
multi-layer	Yes
packaging shape	RECTANGULAR PACKAGE
Package Size	SMT
cking_method	TR, PUNCHED
series	NMC-M
size code	0402
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel
terminal coating	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
heigh	0.6000 mm
length	1 mm
width	0.5000 mm

Preview

Download Datasheet

View All

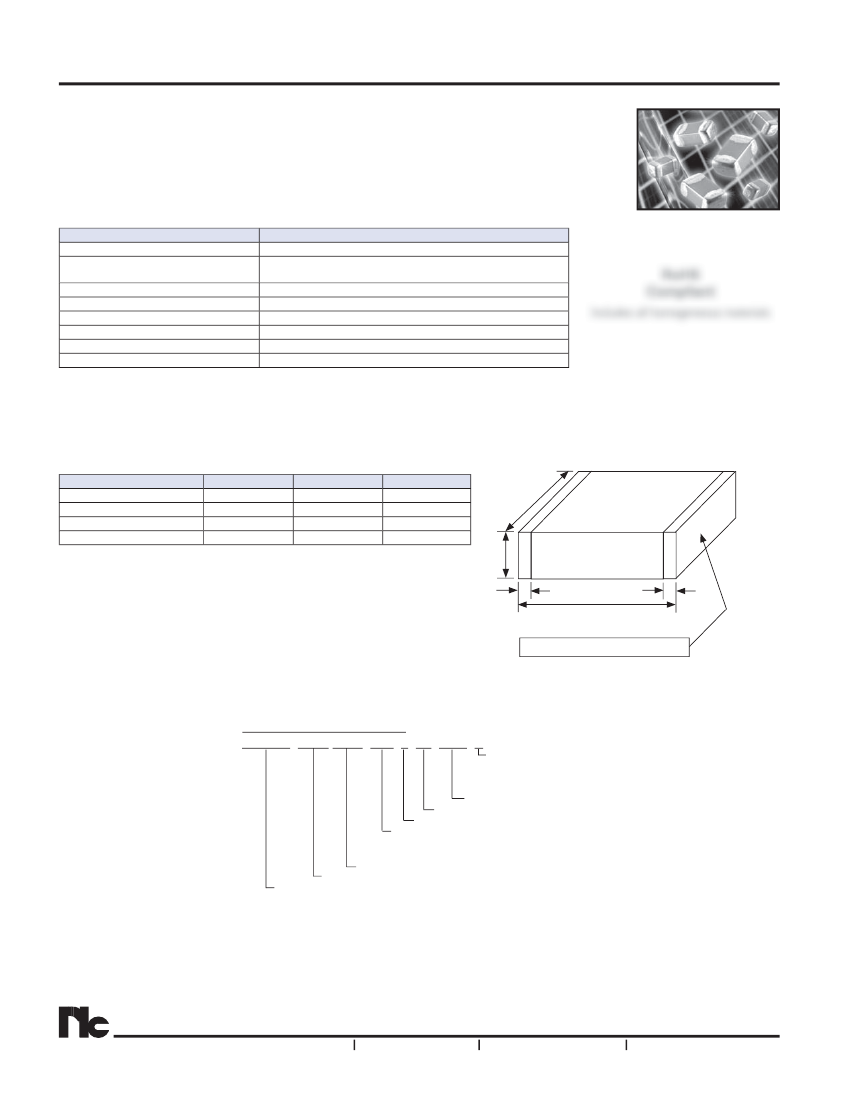

Multilayer Ceramic Chip Capacitors

FEATURES

• LOWER ESR - HIGH Q at HIGH FREQUENCY

• STABLE NPO CHARACTERISTICS OVER TEMPERATURE AND VOLTAGE

• EIA 0201, 0402 AND 0603 CASE SIZES

• IDEAL FOR WIRELESS DATA AND VOICE COMMUNICATIONS APPLICATIONS

WLANs, HIPERLAN, 802.11A, 802.11B, Wi-Fi, BLUETOOTH,TELEMATICS, PCS,

LMDS AND CELLULAR

SPECIFICATIONS

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltage

Dissipation Factor

insulation Resistance

Dielectric Withstanding Voltage

NPO

0.1pF ~ 22pF

±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

±1%(F), ±2%(G), ±5% (J)

-55°C ~ +125°C

0 ± 30PPM/°C

25Vdc, 50Vdc

0.001 max. (1MHz, +25°C)

10,000 Megohms min. @ +25°C

125Vdc for 5 ± 1 seconds

NMC-M Series

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

S P tN b S t

f D t il

DIMENISONS (mm)

EIA Case Size

Length (L)

Width (W)

Thickness (T)

Termination Width (P)

0201

0.6 ± 0.03

0.3 ± 0.03

0.33 max.

0.10 ~ 0.20

0402

1.0 ±0.05

0.5 ± 0.05

0.6 max.

0.10 ~ 0.30

0603

1.6 ±0.15

0.8 ± 0.15

1.0 max.

0.25 ~ 0.60

100% Sn over Ni barrier

PART NUMBER SYSTEM

NMC-M 0603 NPO 100 J 50 TRP F

RoHS Compliant

Series

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF,

ﬁ

rst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
