595D106X9025B4W

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 25 V, 10 uF, SURFACE MOUNT, 1611, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size446KB,24 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

595D106X9025B4W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 25 V, 10 uF, SURFACE MOUNT, 1611, CHIP, ROHS COMPLIANT

595D106X9025B4W Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1993435893
package instruction, 1611
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance10 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR1500 mΩ
high1.9 mm
JESD-609 codee4
leakage current0.0025 mA
length4 mm
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, Embossed Plastic, 13 Inch
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)25 V
ripple current240 mA
size code1611
surface mountYES
Delta tangent0.06
Terminal surfaceGold (Au)
Terminal shapeWRAPAROUND
width2.8 mm

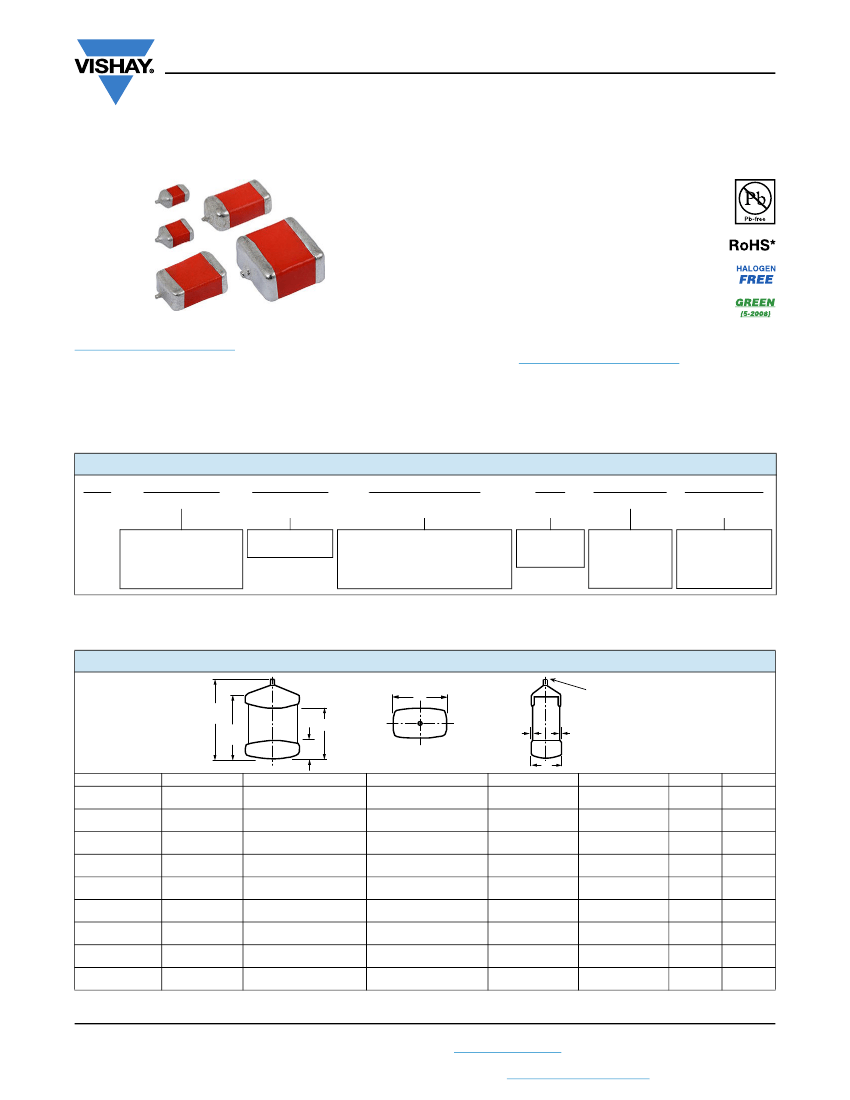

595D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT
™,
Conformal Coated, Maximum CV
FEATURES
• Large capacitance rating range
• Terminations: 100 % tin (2) standard,
tin / lead available
Available
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40194
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.1 μF to 1500 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 50 V
DC
Moisture Sensitivity Level 2a
• 8 mm, 12 mm tape and reel packaging available
Available
per EIA 481 and reeling per IEC 60286-3.
7" [178 mm] standard. 13" [330 mm] available
Available
• Case code compatibility with EIA 535BAAC
and CECC 30801
Available
• All cases except R case are halogen-free
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
ORDERING INFORMATION
595D
TYPE
106
CAPACITANCE
This is expressed in pF.
The first two digits are
the significant figures.
The third is the number
of zeros to follow.
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
010
DC VOLTAGE RATING
AT +85 °C
This is expressed in V.
To complete the three-digit block,
zeros precede the voltage rating.
A decimal point is indicated by an
“R” (6R3 = 6.3 V).
A
CASE
CODE
See Ratings
and Case
Codes table
2
TERMINATION
2 = 100 % tin
4 = gold plated
8 = solder
plated (60/40)
Special order
T
REEL SIZE AND
PACKAGING
Tape and reel
T = 7"
[178 mm] reel
W = 13"
[330 mm] reel
Note
• Preferred tolerances and reel sizes are in bold.
We reserve the right to substitute form-fit-function replacement products with higher voltage rating, tighter capacitance tolerance, lower
ESR (e.g., 594D series), or increased reliability screening (T95 series)
DIMENSIONS
in inches [millimeters]
W
L
MAX.
D
REF.
A
B
J
MAX.
H
Tantalum wire
nib identifies
anode (+)
terminal
J
MAX.
CASE CODE
T
S
A
M
B
C
G
D
R
L MAX.
0.087
[2.2]
0.126 ± 0.012
[3.2 ± 0.3]
0.146
[3.7]
0.142
[3.6]
0.158
[4.0]
0.281
[7.1]
0.221
[5.6]
0.293
[7.4]
0.283
[7.2]
W
H
0.045 ± 0.012
0.045 ± 0.012
[1.1 ± 0.3]
[1.1 ± 0.3]
0.063 ± 0.012
0.052 ± 0.012
[1.6 ± 0.3]
[1.3 ± 0.3]
0.072 ± 0.012
0.056 ± 0.012
[1.8 ± 0.3]
[1.4 ± 0.3]
0.106 ± 0.012
0.067 ± 0.012
[2.7 ± 0.3]
[1.7 ± 0.3]
0.110 + 0.012 / - 0.016 0.075 + 0.012 / - 0.024
[2.8 + 0.3 / - 0.4]
[1.9 + 0.3 / - 0.6]
0.126 ± 0.012
0.098 ± 0.012
[3.2 ± 0.3]
[2.5 ± 0.3]
0.144 ± 0.016
0.087 max.
[3.66 ± 0.4]
[2.2 max.]
0.170 + 0.012 / - 0.024
0.110 ± 0.012
[4.3 + 0.3 / - 0.6]
[2.8 ± 0.3]
0.235 + 0.012 / - 0.024 0.136 + 0.012 / - 0.016
[6.0 + 0.3 / - 0.6]
[3.5 + 0.3 / - 0.4]
A
0.016 ± 0.008
[0.4 ± 0.2]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
B
0.042 ± 0.010
[1.07 ± 0.25]
0.078 ± 0.012
[2.0 ± 0.3]
0.085 ± 0.016
[2.2 ± 0.4]
0.080 ± 0.012
[2.0 ± 0.3]
0.097 ± 0.016
[2.5 ± 0.4]
0.180 ± 0.024
[4.6 ± 0.6]
0.133 ± 0.016
[3.4 ± 0.4]
0.180 ± 0.024
[4.6 ± 0.6]
0.180 ± 0.024
[4.6 ± 0.6]
D REF.
0.063
[1.6]
0.086
[2.2]
0.115
[2.9]
0.107
[2.7]
0.138
[3.5]
0.236
[6.0]
0.173
[4.4]
0.253
[6.4]
0.243
[6.2]
J MAX.
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note
• The anode termination (D less B) will be a minimum of 0.010" [0.25 mm]. T case = 0.005" [0.13 mm] minimum
Revision: 16-Jul-2019
Document Number: 40007
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
