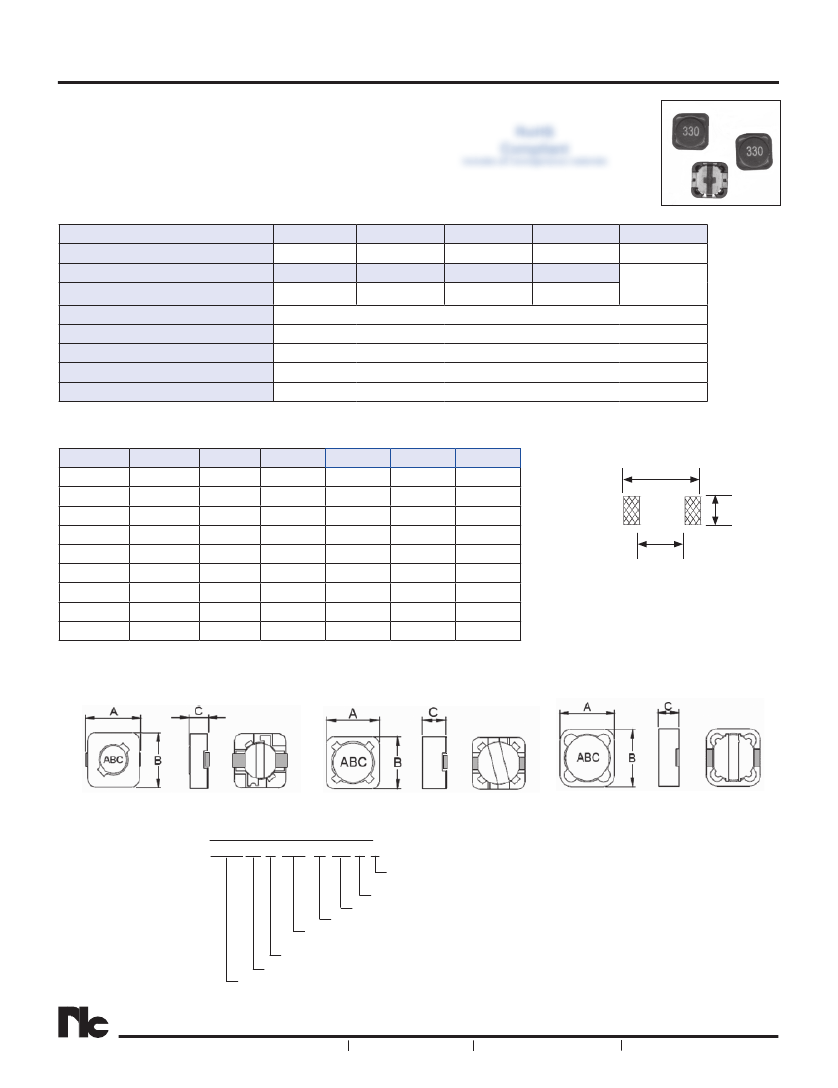

NPIS Shielded Power Inductors

FEATURES

• SHIELDED POWER INDUCTOR

• HIGH CURRENT (UP TO 19.9 AMPS)

• SURFACE MOUNTABLE CONSTRUCTION

• HIGH INDUCTANCE (UP TO 3,300µH)

• TAPED AND REELED FOR AUTOMATIC INSERTION

• FOR USE IN DC/DC CONVERTERS

CHARACTERISTICS

Case Size

Inductance Range

Case Size

Inductance Range

Ambient Operating Temperature Range

Temperatrue Rise at Irms

Inductance Change at Isat

Inductance Tolerance

Resistance to Solder Heat

NPIS62H

3.3 ~ 330µH

NPIS24H

1.0 ~ 330µH

NPIS64H

10 ~ 1,000µH

NPIS25H

1.0 ~ 1,000µH

NPIS73H

10 ~ 1,000µH

NPIS27H

1.0 ~ 1,000µH

+40°C max.

-25% typical

10% (K), 15% (L), 20% (M), 30% (Y)

260°C for 10 seconds

NPIS74H

10 ~ 1,000µH

NPIS29H

1.0 ~ 3,300µH

NPIS__H Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

NPIS14H

4.7 ~ 470µH

-40°C ~ +125C (including temperature rise)

DIMENSIONS (mm)

Series

NPIS62H

NPIS64H

NPIS73H

NPIS74H

NPIS14H

NPIS24H

NPIS25H

NPIS27H

NPIS29H

6.8

7.8

10.5

12.5

12.0 ± 0.5

7.0

7.8

10.5

12.5

12.0 ± 0.5

3.0

5.0

4.0

5.0

6.0

8.0

10.0

4.6

4.8

6.8

7.0

1.9

2.2

4.4

5.4

7.4

8.0

10.8

12.8

LAND PATTERN (All Sizes)

NPIS62H, NPIS64H

NPIS73H, NPIS74H

NPIS14H, NPIS24H, NPIS25H

NPIS27H, NPIS29H

PART NUMBER SYSTEM

NPIS 24 H

560

M TR N F

Termination Finish:

F = Pb-free/RoHS Compliant (100%Sn)

Optional 90° Taping Orientation (Standard for NPIS29H)

Packaging: TR = Tape & Reel

Inductance Tolerance Code: K=±10%, L=±15%, M=±20%, Y=±30%

Inductance Code (µH): 1st two digits are significant,

3rd digit is multiplier for values from 10µH

and up.

Construction Code (see drawing for details)

Size Code (see table for details)

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Specifications are subject to change
