NPIS32LS4R7MTRF

Description
1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components
File Size1MB，17 Pages
ManufacturerNIC
Websitehttps://www.niccomp.com
Download Datasheet View All

NPIS32LS4R7MTRF Overview

1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD

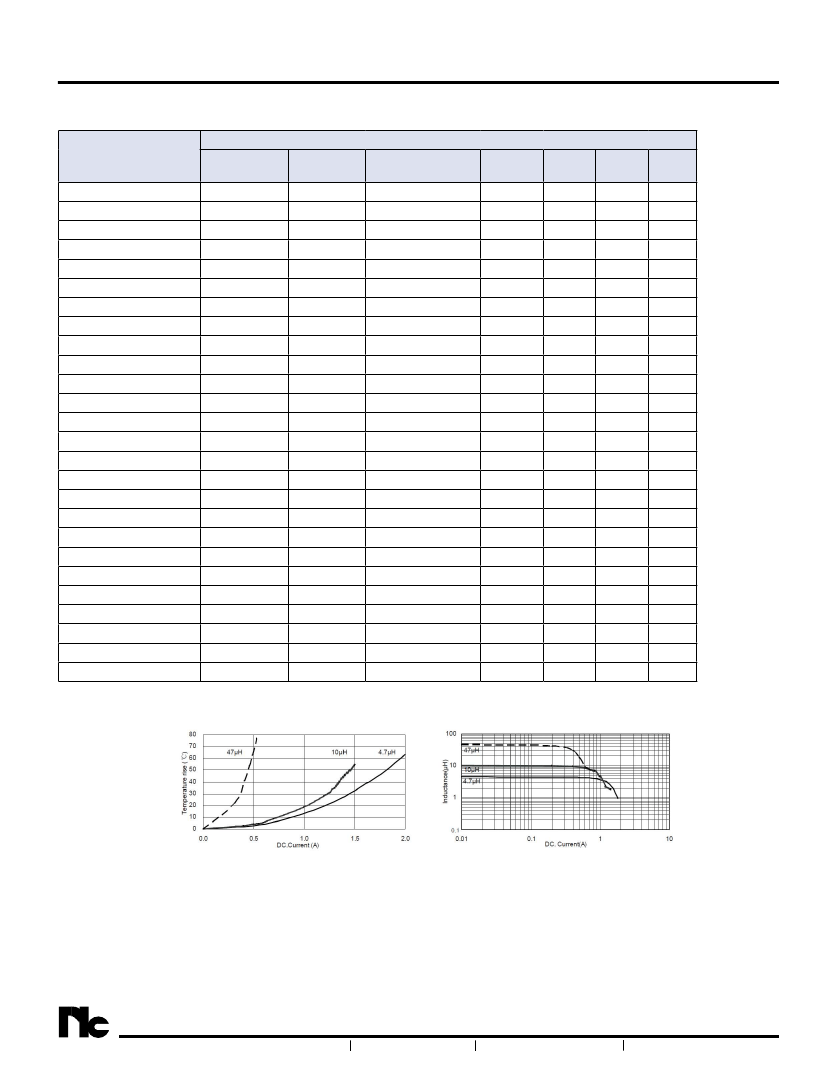

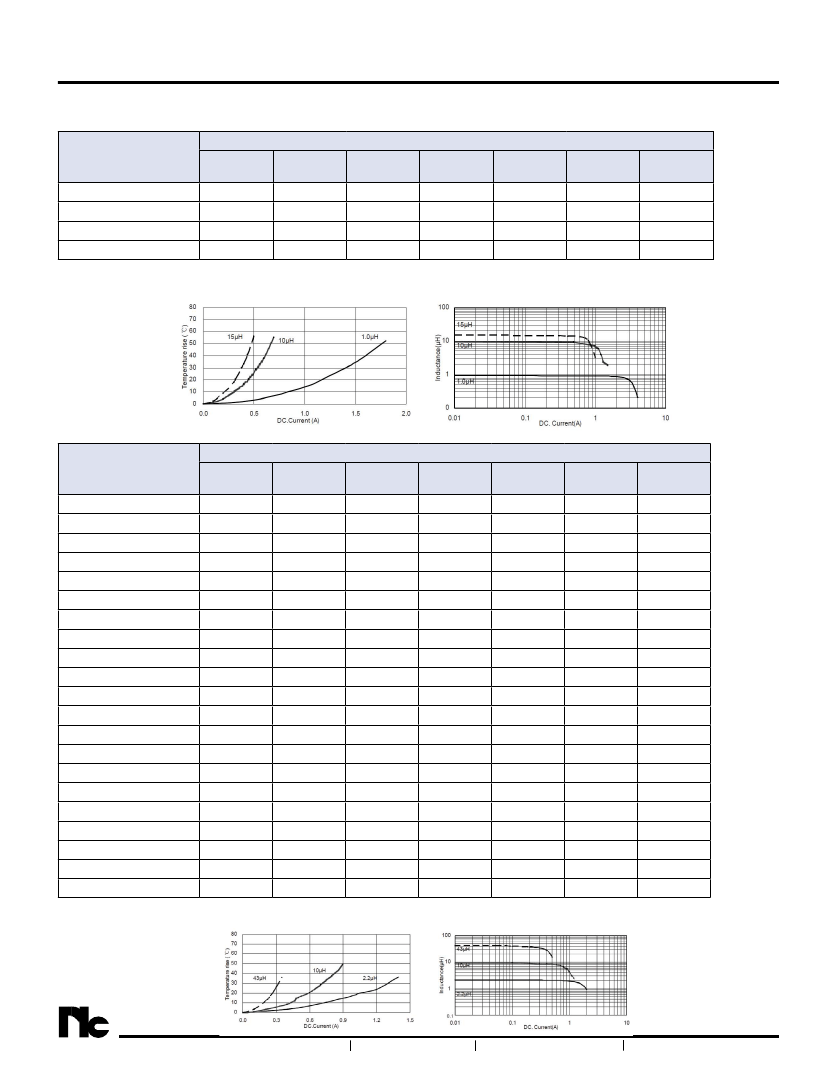

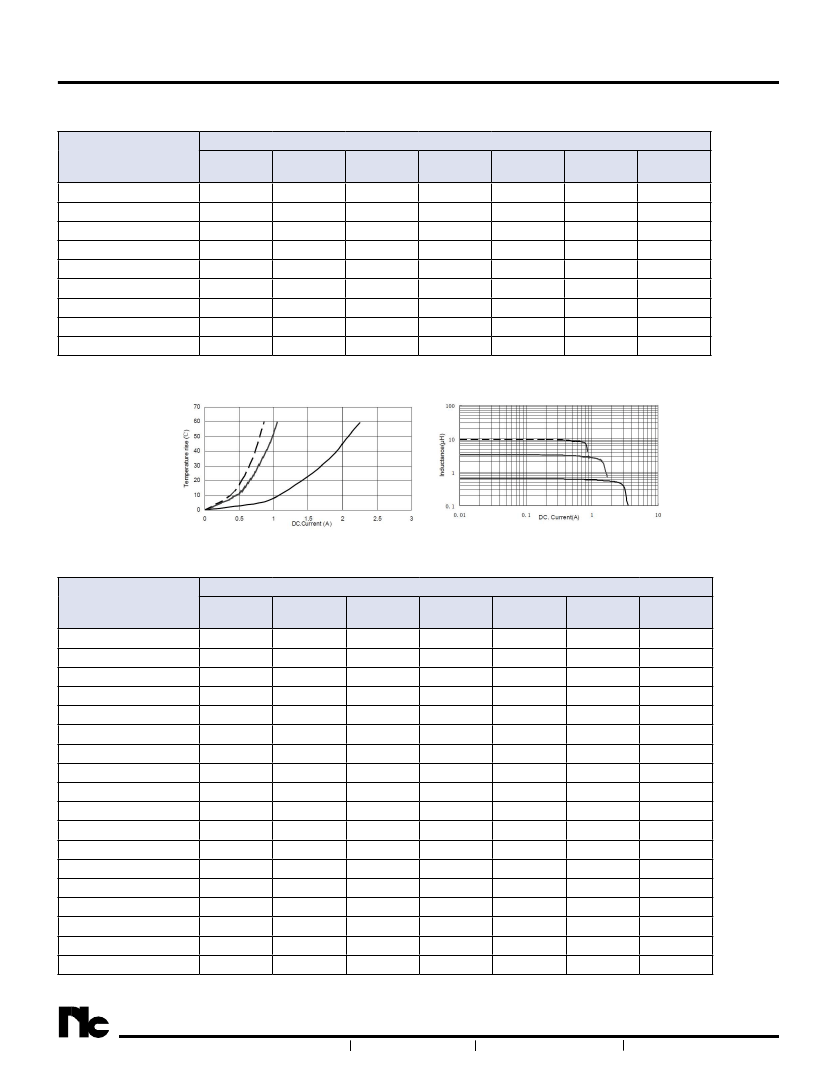

Preview

Download Datasheet

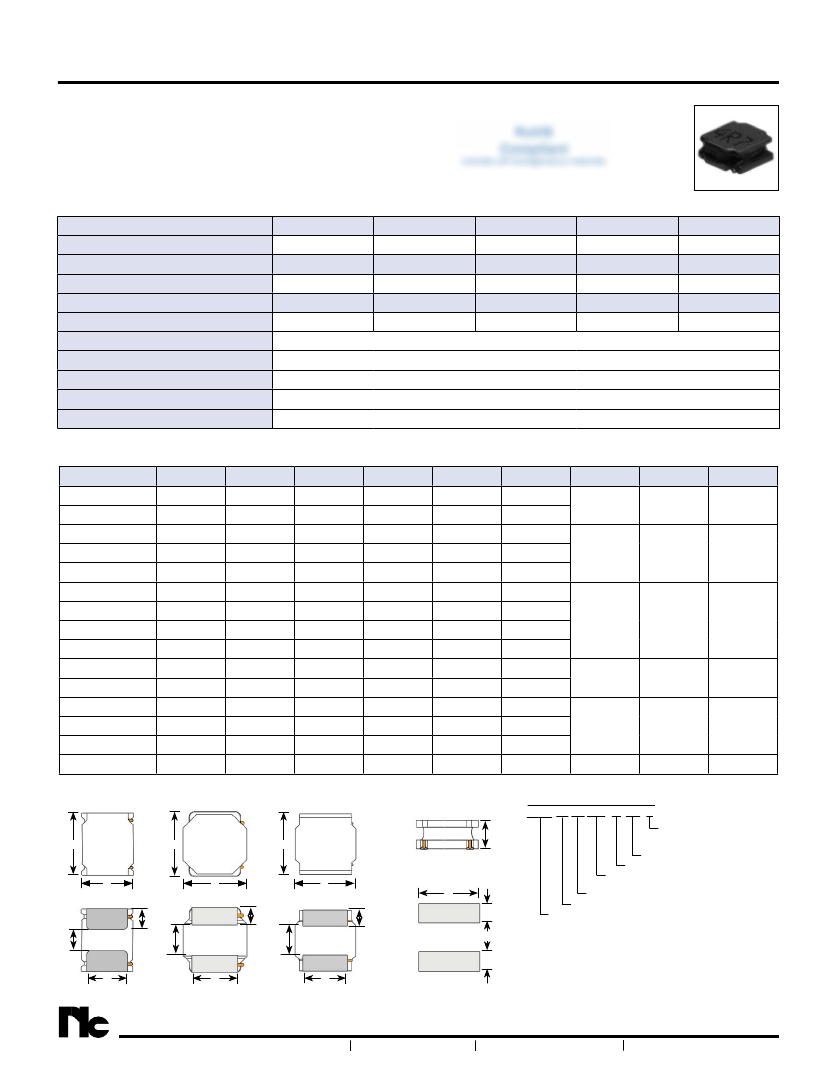

NPIS Shielded Power Inductors
FEATURES
• SHIELDED POWER INDUCTOR
• HIGH CURRENT (UP TO 13.8 AMPS)
• SURFACE MOUNTABLE CONSTRUCTION
• HIGH INDUCTANCE (UP TO 330µH)
• TAPED AND REELED FOR AUTOMATIC INSERTION
CHARACTERISTICS
Case Size
Inductance Range
Case Size
Inductance Range
Case Size
Inductance Range
Ambient Operating Temperature Range
Temperatrue Rise at Irms
Inductance Change at Isat
Inductance Tolerance
Resistance to Solder Heat
NPIS20LS
0.47 ~ 10μH
NPIS41LS
0.82 ~ 100μH
NPIS54LS
1.0 ~ 100μH
NPIS21LS
0.47 ~ 22μH
NPIS48LS
1.0 ~ 220μH
NPIS62LS
0.5 ~ 22μH
NPIS31LS
1.0 ~ 62μH
NPIS42LS
1.0 ~ 100μH
NPIS63LS
1.5 ~ 100μH
NPIS__LS Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NPIS32LS
0.82 ~ 100μH
NPIS43LS
0.91 ~ 120μH
NPIS65LS
0.82 ~ 330μH
NPIS35LS
1.0 ~ 68μH
NPIS52LS
0.47 ~ 100μH
NPIS84LS
0.82 ~ 330μH
-40°C ~ +125°C (including self-heating)*
Maximum +40°C Temperature Rise
Maximum -30% Inductance Drop From Initial Measured Value
±20% (M), ±30% (Y)
+260°C for 10 seconds
DIMENSIONS (mm)
Series
NPIS20LS
NPIS21LS
NPIS31LS
NPIS32LS
NPIS35LS
NPIS41LS
NPIS48LS
NPIS42LS
NPIS43LS
NPIS52LS
NPIS54LS
NPIS62LS
NPIS63LS
NPIS65LS
NPIS84LS
NPIS2*LS
A
2.5 ± 0.1
2.5 ± 0.1
3.0 ± 0.2
3.0 ± 0.2
3.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
5.0 ± 0.2
5.0 ± 0.2
6.0 ± 0.3
6.0 ± 0.3
6.0 ± 0.3
8.0 ± 0.3
NPIS5*LS
B
2.0 ± 0.1
2.0 ± 0.1
3.0 ± 0.2
3.0 ± 0.2
3.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
5.0 ± 0.2
5.0 ± 0.2
6.0 ± 0.3
6.0 ± 0.3
6.0 ± 0.3
8.0 ± 0.3
C
1.0 Max.
1.2 Max.
1.0 Max.
1.2 Max.
1.5 Max.
1.2 Max.
1.8 Max.
2.0 Max.
3.0 Max.
2.0 Max.
4.0 Max.
2.0 Max.
2.8 Max.
4.5 Max.
4.2 Max.
d
1.5 ± 0.2
1.5 ± 0.2
2.5 ± 0.2
2.5 ± 0.2
2.5 ± 0.2
3.3 ± 0.2
3.3 ± 0.2
3.3 ± 0.2
3.3 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.9 ± 0.3
4.9 ± 0.3
4.9 ± 0.3
6.3 ± 0.3
e
0.80 ± 0.2
0.80 ± 0.2
0.75 ± 0.2
0.75 ± 0.2
0.75 ± 0.2
0.95 ± 0.2
0.95 ± 0.2
0.95 ± 0.2
0.95 ± 0.2
1.25 ± 0.2
1.25 ± 0.2
1.55 ± 0.3
1.55 ± 0.3
1.55 ± 0.3
2.00 ± 0.3
All Sizes
f
0.80 ± 0.2
0.80 ± 0.2
1.5 ± 0.2
1.5 ± 0.2
1.5 ± 0.2
2.1 ± 0.2
2.1 ± 0.2
2.1 ± 0.2
2.1 ± 0.2
2.5 ± 0.2
2.5 ± 0.2
2.9 ± 0.3
2.9 ± 0.3
2.9 ± 0.3
4.0 ± 0.3
3.8
2.2
7.5
2.8
1.7
5.7
2.3
1.4
4.2
1.9
1.1
3.4
1.5
0.8
2.7
G
0.8
I
0.85
H
2
NPIS3*LS, NPIS4*LS
NPIS6*LS, NPIS8*LS
PART NUMBER SYSTEM
NPIS
31
LS
470
M TR F
A
B
e
f
d
®
A
B
e
f
d
A
B
e
f
d
C
RoHS Compliant
Packaging: TR = Tape & Reel
Inductance Tolerance Code: M=±20%
Inductance Code (µH): 1st two digits are
significant, 3rd digit is multiplier.
Construction Code (see drawing for details)
Size Code (see table for details)
H
I
G
I
REFLOW SOLDERING
LAND PATTERN (ALL SIZES)
Series
*Specifications reflect recent product changes. For more information refer to PCN announcement [Link]
1
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
