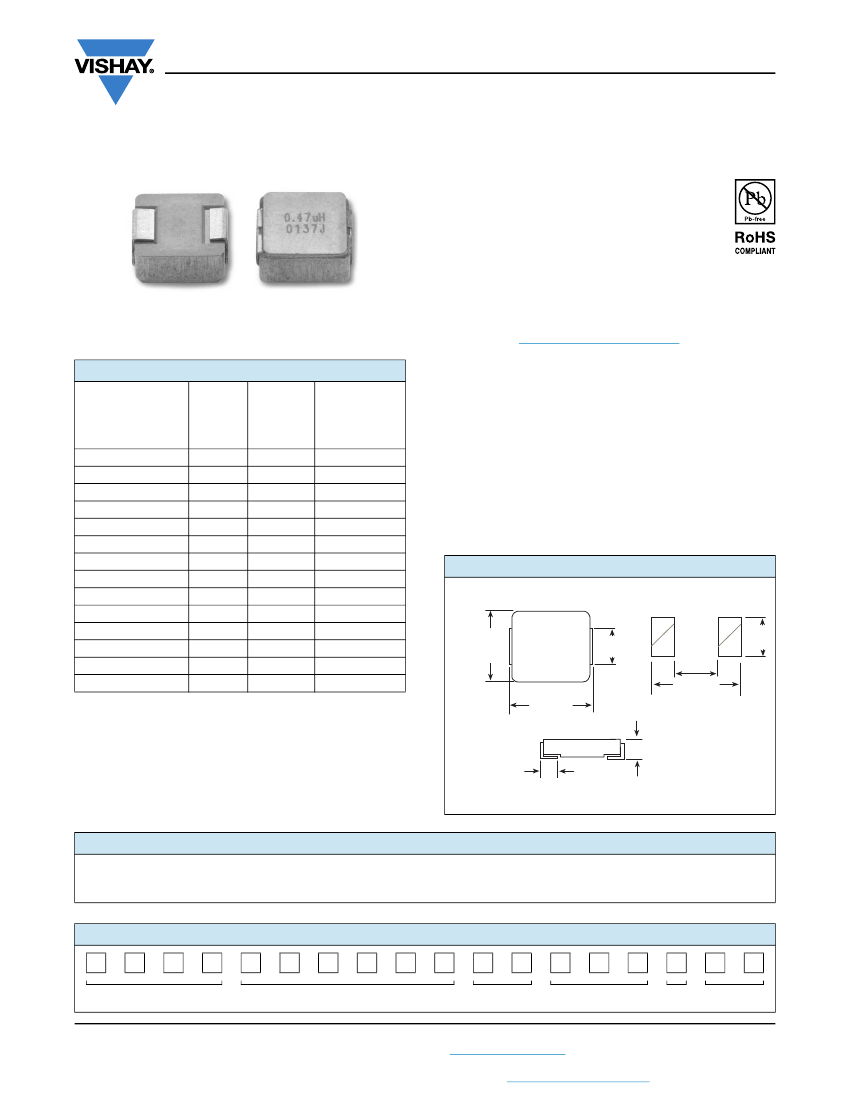

IHLP-2525CZ-07
www.vishay.com
Vishay Dale
Low Profile, IHLP
®
Power Inductors -
DC Resistance Tolerance 5 %
FEATURES
• Lowest height (3.0 mm) in this package footprint
• Shielded construction
• Frequency range up to 5.0 MHz
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without saturation
Manufactured under one or more of the following:
US Patents; 6,198,375/6,204,744/6,449,829/6,460,244.
Several foreign patents, and other patents pending.
• Ultra low buzz noise, due to composite construction
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 % AT 100 kHz,
0.25 V, 0 A
(μH)
0.10
0.15
0.20
0.33
0.47
0.68
0.82
1.0
1.5
2.2
3.3
4.7
8.2
10
DCR
±5%
AT 25 °C
(m)
1.30
1.85
2.34
3.20
3.86
5.20
7.41
8.44
14.50
17.73
28.21
37.11
61.47
97.71
HEAT
RATING
CURRENT
DC TYP.
(A)
(3)
32.5
26
24
20
17.5
15.5
13
11
9
8
6
5.5
4
3
SATURATION
CURRENT
DC TYP.
(A)
(4)
60
52
41
30
26
25
24
22
18
14
13.5
10
7.5
7.0
APPLICATIONS
• Tolerance DCR for current sense applications
• Improved current balance in phased power supplies
• Improved thermal management
• PDA/notebook/desktop/server
devices
and
battery
powered
• High current, low profile POL converters
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array
(FPGA)
DIMENSIONS
in inches [millimeters]
Typical Pad Layout (Min.)
0.255 ± 0.010
[6.47 ± 0.254]
0.125 ± 0.01
[3.18 ± 0.3]
0.135
[3.43]
0.146
[3.71]
0.290
[7.37]
Notes
(1)
All test data is referenced to 25 °C ambient
(2)
Operating temperature range -55 °C to +125 °C
(3)
DC current (A) that will cause an approximate
T
of 40 °C
(4)
DC current (A) that will cause L to drop approximately 20 %
0
(5)
The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
0.270 ± 0.015
[6.86 ± 0.381]
0.118 [3.0] Max.
0.050 ± 0.012
[1.27 ± 0.30]
DESCRIPTION
IHLP-2525CZ-07
MODEL
1.0 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
2
5
2
SIZE
5
C
Z
E
R
1
R
INDUCTANCE
VALUE
0
M
TOL.
0
7
PRODUCT FAMILY
Revision: 20-Sep-13
PACKAGE
CODE
SERIES
Document Number: 34168
1
