ZS1-44N-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ZS1-44N-G

ZS1-44N-G: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

ZS1-44N-G Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug

ZS1-44N-G Parametric

Parameter Name	Attribute value
Objectid	303145659
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.165 inch
subject depth	0.213 inch
body length	1.933 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VDC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	ZS1
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	44

Preview

Download Datasheet

View All

ZS1 Series

Specifications

Contact Resistance:

Insulation Resistance:

Current Rating:

Operating Temperature Range:

Withstanding Voltage:

I.D.C. Socket

Part Number

(Details)

35mW max.

1,000MW min at 500 V DC

1.0A

–55°C to +105°C

250 V for 1 minute

ZS1

Series No.

- ** N - *

No. of Contact Pins

N = No Strain Relief

Selective Plating:

S = Mating Area - Gold

IDC Area - Tin

G = Gold Flash

Materials and Finish

Housing: UL 94V-0 listed

Terminals: Phosphor Bronze

Plating:

Tin and Gold

Features

Pin count from 20 to 68

Applicable Dimensions

(Reference Only)

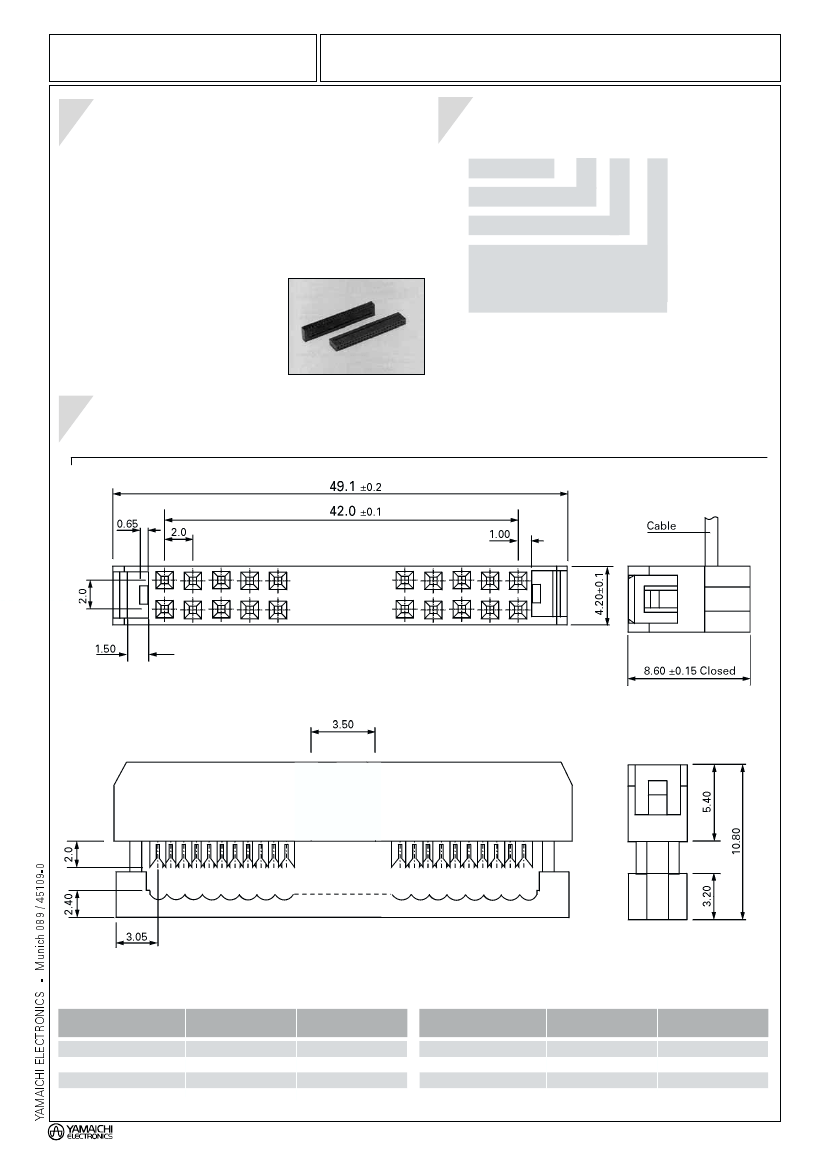

Outline Connector Dimensions

Dimensional Information

Part Number

ZS1-20N-*

ZS1-26N-*

ZS1-34N-*

ZS1-40N-*

Dim. A

25.1

31.0

39.1

45.1

Dim. B

18.0

24.0

32.0

38.0

Part Number

ZS1-44N-*

ZS1-50N-*

ZS1-68N-*

Dim. A

49.1

55.1

73.1

Dim. B

42.0

48.0

66.0

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

Trading Division

ZS1-44N-G Related Products

	ZS1-44N-G	ZS1-68N-G	ZS1-20N-G	ZS1-40N-G
Description	Board Connector, 44 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug	Board Connector, 68 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug	Board Connector, 40 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	NONE	NONE	NONE	NONE
body width	0.165 inch	0.165 inch	0.165 inch	0.165 inch
subject depth	0.213 inch	0.213 inch	0.213 inch	0.213 inch
body length	1.933 inch	2.878 inch	0.988 inch	1.776 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VDC V	250VDC V	250VDC V	250VDC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	ZS1	ZS1	ZS1	ZS1
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	44	68	20	40
