POLYSNAP
®
POWER INLET MODULES

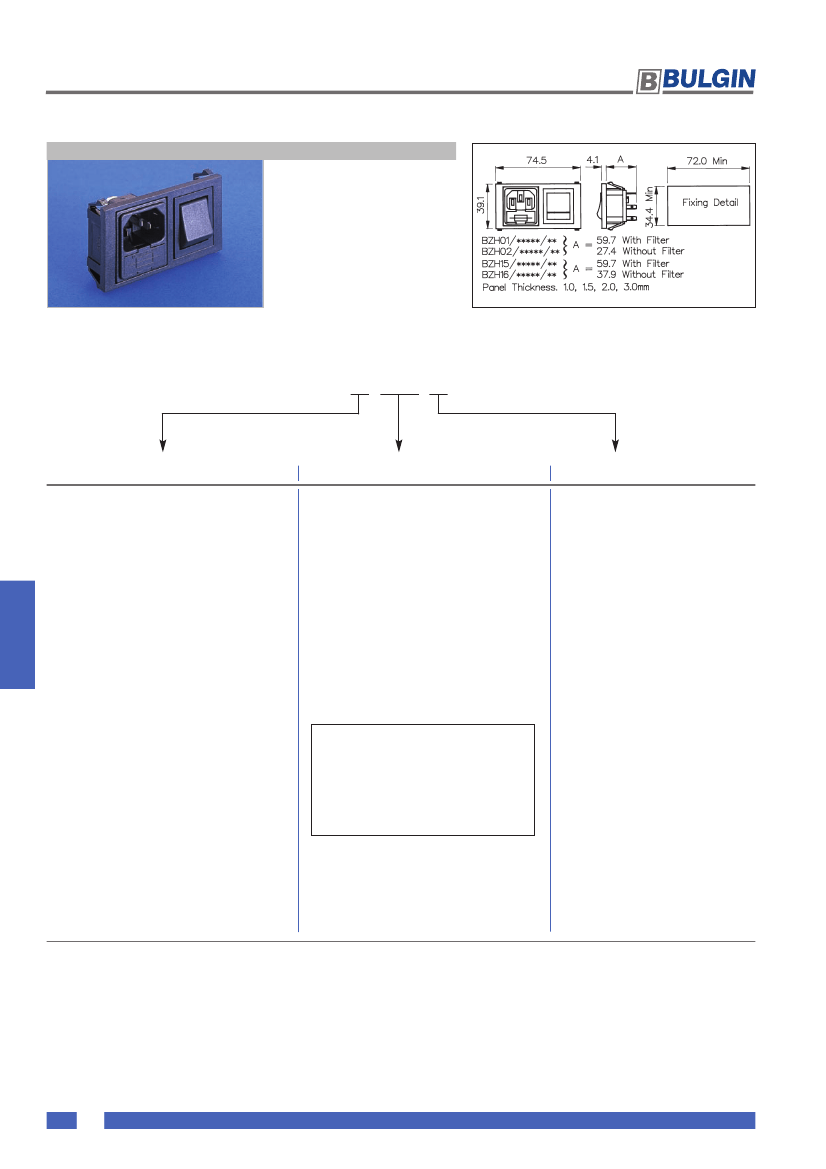

C14 IEC Fused Inlet - Horizontal
HORIZONTAL MODULE ARRANGEMENT
Fused Inlet with 2.8mm or
6.3mm tags
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZH01/Z0000/10
How to Order
BZH xx / xxxxx / xx
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition),
2.8 or 6.3mm tabs:
01
= PF0011/63
02
= PF0011/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Combination of Other Components
Neon Indicator:
03
= Red Neon Indicator
Double Pole Switch:
10
= D.P Switch
.
Double Pole Neon Switch:
11
= D.P Red Neon Switch
.
12
= D.P Green Neon Switch
.
Double Pole High Inrush Switch:
13
= D.P High Inrush Switch
.
Double Pole Switch marked I/O:
70
= D.P Switch (I/O)
.
Double Pole Neon Switch Marked (I/O):
76
= D.P Red Neon Switch (I/O)
.
77
= D.P Green Neon Switch (I/O)
.
Double Pole High Inrush Switch Marked
(I/O):
78
= D.P High Inrush Switch (I/O)
.
B1
= D.P High Inrush Green Neon Switch
.
(I/O)
IEC CONNECTORS
Twin Fused C14 Power Inlet (cold condition),
2.8 or 6.3mm tabs:
15
= PF0033/63
16
= PF0033/28
For Filtered inlet use 6th to 9th characters from
filter ordering code see pages 127-129.
E.g. BZH01/A0620/10
Note: For technical details of individual components please see page 106
