RMCF1/41051%R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMCF1/41051%R

RMCF1/41051%R: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.33W, 105ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size134KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RMCF1/41051%R Overview

Fixed Resistor, Metal Glaze/thick Film, 0.33W, 105ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP, ROHS COMPLIANT

RMCF1/41051%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2003651806
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	RMC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-65 °C
Package height	0.55 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.5 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.33 W
Rated temperature	70 °C
resistance	105 Ω
Resistor type	FIXED RESISTOR
series	RMC1/4(1%)
size code	1210
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

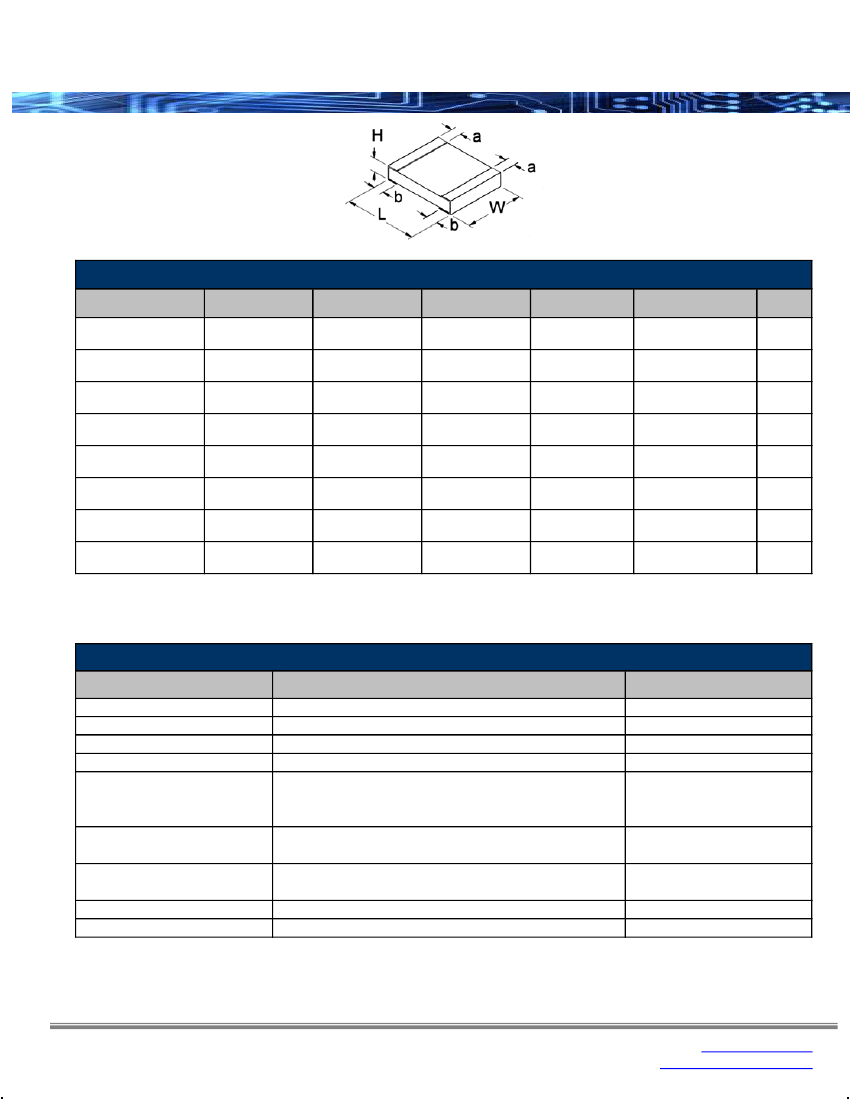

RMC Series

General Purpose Thick Film Chip Resistors

Features:

•

Nickel Barrier terminations standard

Power derating from 100% at 70ºC to zero at +155ºC

Zero ohm available (max resistance 0.05Ω)

RoHS compliant / lead-free available (RMCF)

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Type / Code

RMC 1/20

RMC 1/16S

Package

Type

0201

0402

Power Rating

(Watts) @ 70ºC

0.050W

0.063W

Maximum

Working

Voltage

25V

50V

Maximum

Overload

Voltage

50V

100V

Maximum

Current

1 Amp

Resistance

Temperature

Coefficient

± 600 ppm/ºC

± 300 ppm/ºC

± 500 ppm/ºC

± 200 ppm/ºC

± 600 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 500 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 500 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 400 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 500 ppm/ºC

± 400 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 500 ppm/ºC

± 400 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

Ohmic Range and Tolerance2

1Ω - 24.9Ω

25Ω - 10MΩ

1Ω - 9.76Ω

10Ω - 1MΩ

0.1Ω - 0.499Ω

0.5Ω - 32.4Ω

33.2Ω - 1MΩ

1.1MΩ - 10MΩ

0.1Ω - 0.976Ω

1Ω - 32.4Ω

33.2Ω - 1MΩ

1.1MΩ - 10MΩ

0.1Ω - 0.976Ω

1Ω - 32.4Ω

33.2Ω - 1MΩ

1.1MΩ - 10MΩ

0.1Ω - 9.76Ω

10Ω - 32.4Ω

33.2Ω - 1MΩ

1.1MΩ - 10MΩ

0.1Ω - 0.499Ω

0.5Ω - 9.76Ω

10Ω - 10MΩ

0.1Ω - 0.499Ω

0.5Ω - 9.76Ω

10Ω - 10MΩ

1Ω - 24.9Ω

25Ω - 10MΩ

1Ω - 9.1Ω

10Ω - 20MΩ

0.1Ω - 0.499Ω

0.5Ω - 20MΩ

0.1Ω - 0.910Ω

1Ω - 20MΩ

0.1Ω - 0.910Ω

1Ω - 20MΩ

0.1Ω - 9.1Ω

10Ω - 20MΩ

0.1Ω - 0.499Ω

0.5Ω - 9.1Ω

10Ω - 10MΩ

0.1Ω - 0.499Ω

0.5Ω - 9.1Ω

10Ω - 10MΩ

RMC 1/16

0603

0.100W

50V

100V

1 Amp

RMC 1/10

0805

0.125W

150V

300V

2 Amp

RMC 1/8

1206

0.250W

200V

400V

2 Amp

RMC 1/4

1210

0.330W3

200V

400V

3 Amp

RMC 1/2

2010

0.750W3

200V

400V

3 Amp

RMC 1

2512

1.000W

200V

400V

3 Amp

Lesser of

√PR

or maximum working voltage.

Contact factory for extended ohmic values.

Power rating is 0.500W for ohmic values below 1Ω

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

RMC

Type

RMC

RMCF

Description

Standard

RoHS

Code

1/20

1/16S

1/16

1/10

1/8

1/4

1/2

1/16

Wattage

0.050W

0.063W

0.100W

0.125W

0.250W

0.330W

0.750W

1.000W

Size

0201

0402

0603

0805

1206

1210

2010

2512

4.7K

Tolerance Values

E96,E24

E24

SEI Types

1/20

1/16S

Pkg Qty Description Code

15,000 7" reel - Paper

10,000

or Embossed

10" reel - Paper

10,000

or Embossed

1/16, 1/10, 1/8

7" reel - Paper

5,000

or Embossed

1,000

Bulk

1/4, 1/2, 1

4,000

7" - Embossed

Rev Date: 02/03/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com

marketing@seielect.com
