B061-1011-259-Z

Description
Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size236KB,1 Pages
ManufacturerSMP Technology Inc.
Download Datasheet Parametric View All

B061-1011-259-Z Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

B061-1011-259-Z Parametric

Parameter NameAttribute value
Objectid304393044
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.094 inch
subject depth0.335 inch
body length1.024 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial numberB061
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts10
HOW TO ORDER:
B
0
6
1
-
X
X
1
1
-
2
5
X
-
Z
RoHS
COMPLIANT
ELECTRICAL:
CURRENT: 3A
CONTACT RESISTANCE: 20mΩ Max.
INSULATOR RESISTANCE: 5000MΩ Min.
DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.
OPERATING TEMPERATURE: -40° C TO +105° C
NUMBER OF CONTACTS:
?? thru ??
DEFINITION:
1 - STRAIGHT
NUMBER OF ROWS:
1 - ONE
Drawn Checked
S.M.
A.M.
B.S.
S.M.
HOUSING DIMESIONS:
Height - 8.50mm
Width - 2.40mm
Contact Tail - 3.20mm
CONTACT STYLE:
2 - TUNING FORK
PLATING OVERALL:
0 - FULL TIN
1 - FULL Au
3 - 10u" Au
4 - 15u" Au
5 - 30u" Au
MATERIAL:
INSULATOR: GLASS FILLED POLYESTER (UL94V-0)
CONTACT: COPPER ALLOY
Rev
0
Issued
Revised for RoHS Compliance
A
SCALE:n/a
TOL. DEC.
.X +/- 0.35
.XX +/- 0.25
.XXX +/- 0.15
SELECTIVE PLATING:
6 - Au CONTACT AREA/TIN TAIL
7 - 10u" Au CONTACT AREA/TIN TAIL
8 - 15u" Au CONTACT AREA/TIN TAIL
9 - 30u" Au CONTACT AREA/TIN TAIL
Date
Appproved
S.M.
09/02/03
12/15/06
S.M.
SMP TECHNOLOGY, INC.

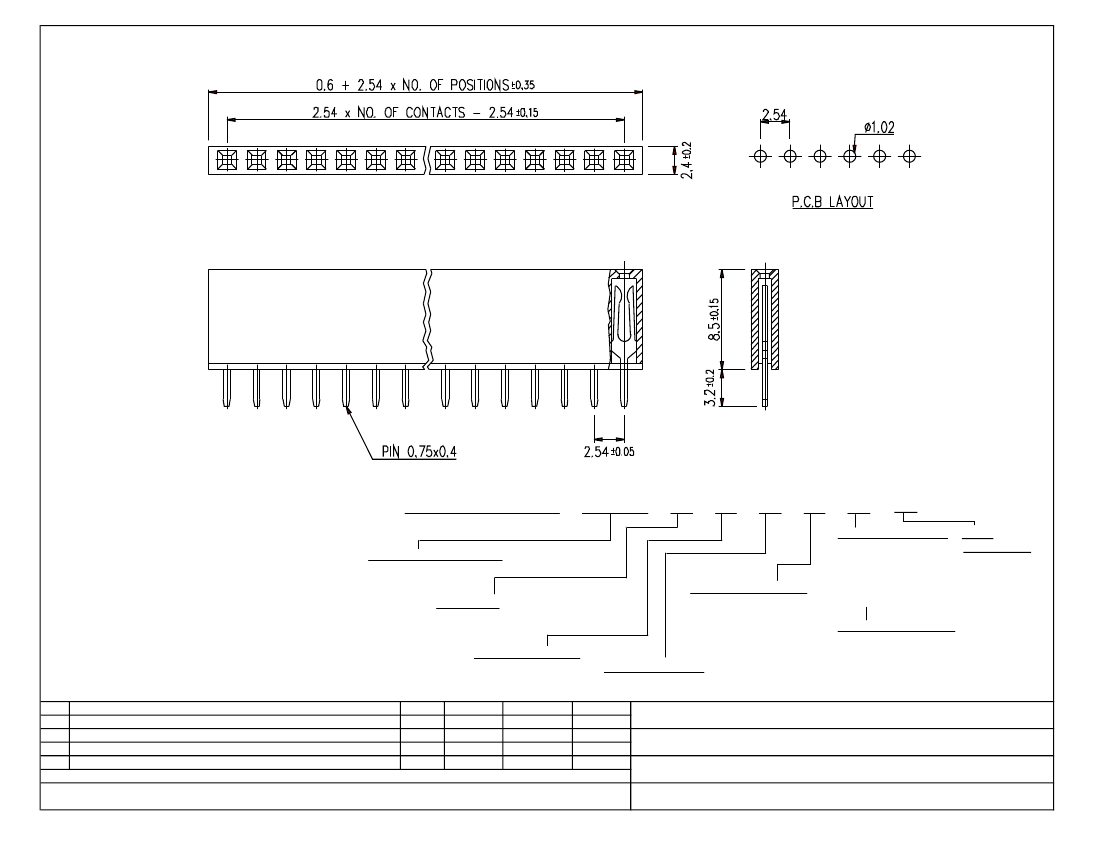

Receptacle Assembly, 2.54mm Pitch, Top Entry, Single Row, Vertical
Tuning Fork Contact, Thru Hole
ANGLE +/- 5°
UNIT: mm
SERIES: B061
Pg: 1
