B111-2021-115-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B111-2021-115-Z

B111-2021-115-Z: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size530KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B111-2021-115-Z Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

B111-2021-115-Z Parametric

Parameter Name	Attribute value
Objectid	304390470
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	HOLE .086-.098
body width	0.323 inch
body length	1.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	B111
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All





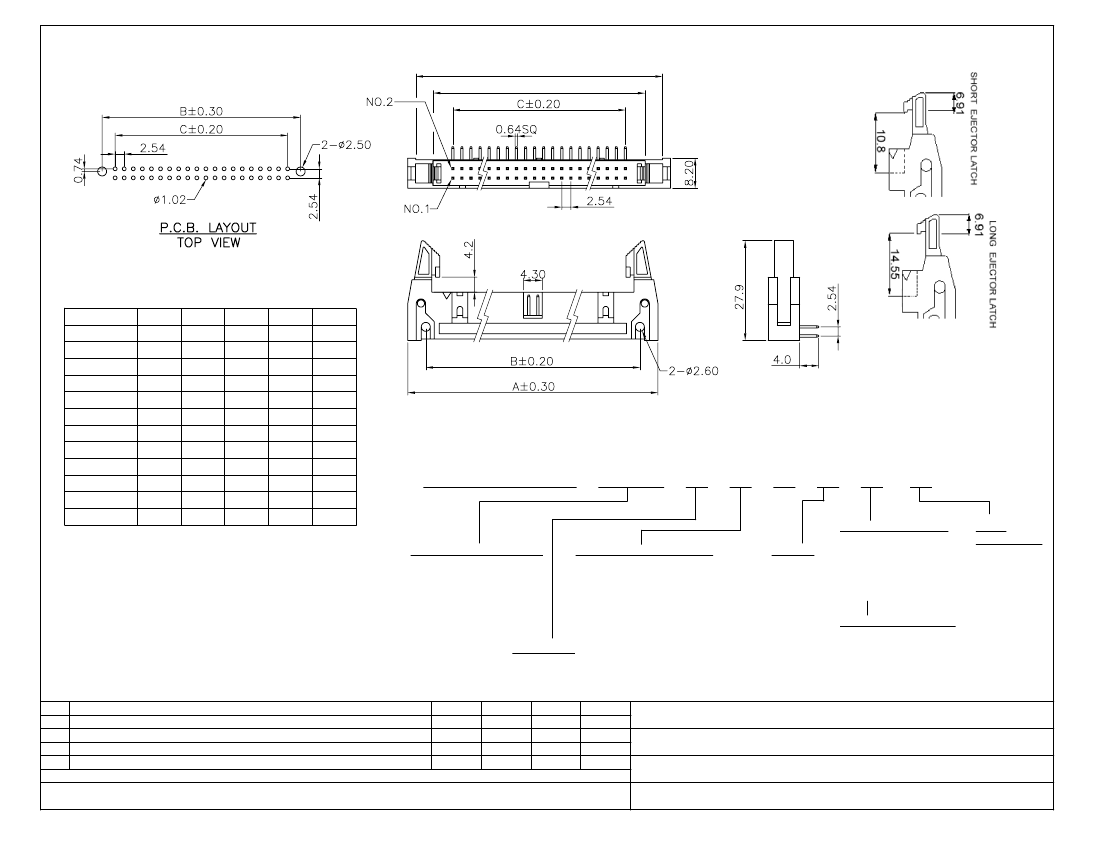

DIMENSION(mm)

CONTACTS

32.00

37.08

39.62

44.70

49.80

52.30

57.40

62.50

70.10

82.80

95.50

100.60

21.84

26.92

29.46

34.54

39.62

42.16

47.24

52.32

59.94

72.64

85.34

90.42

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

17.90

22.98

25.52

30.60

35.68

38.22

43.30

48.38

56.00

68.70

81.40

86.48

27.94

33.02

35.56

40.64

45.72

48.26

53.34

58.42

66.04

78.74

91.44

96.52

HOW TO ORDER:

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: < 20m

Ω

max.

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

NUMBER OF CONTACTS:

10 thru 64

EJECTOR LATCH HEIGHT:

0 - LONG EJECTOR LATCH

FOR IDC W/ STRAIN RELIEF

1 - SHORT EJECTOR LATCH

FOR IDC W/OUT STRAIN RELIEF

2 - NO EJECTOR LATCH

COLOR:

1 - BLACK

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

MATERIAL:

INSULATOR: THERMOPLASTIC, UL94V-0

CONTACT: COPPER ALLOY

CONTACT FINISH: GOLD OVER NICKEL

Rev

0 Issued

A Revised for RoHS Compliance

SCALE: N/A

TOL. DEC.

.X +/- 0.30

.XX +/- 0.20

.XXX +/- 0.10

DEFINITION:

2 - RIGHT ANGLE

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved Date

S.M.

S.E.

2/1/96

WHS

S.M.

S.M. 10/16/06

SMP TECHNOLOGY, INC.

BOX HEADER w/ EJECTOR, 2.54mm PITCH, RIGHT ANGLE

ANGLE +/- 1°

UNIT: mm

SERIES: B 1 1 1 - X X 2 X - 1 1 X - Z

Pg: 1
