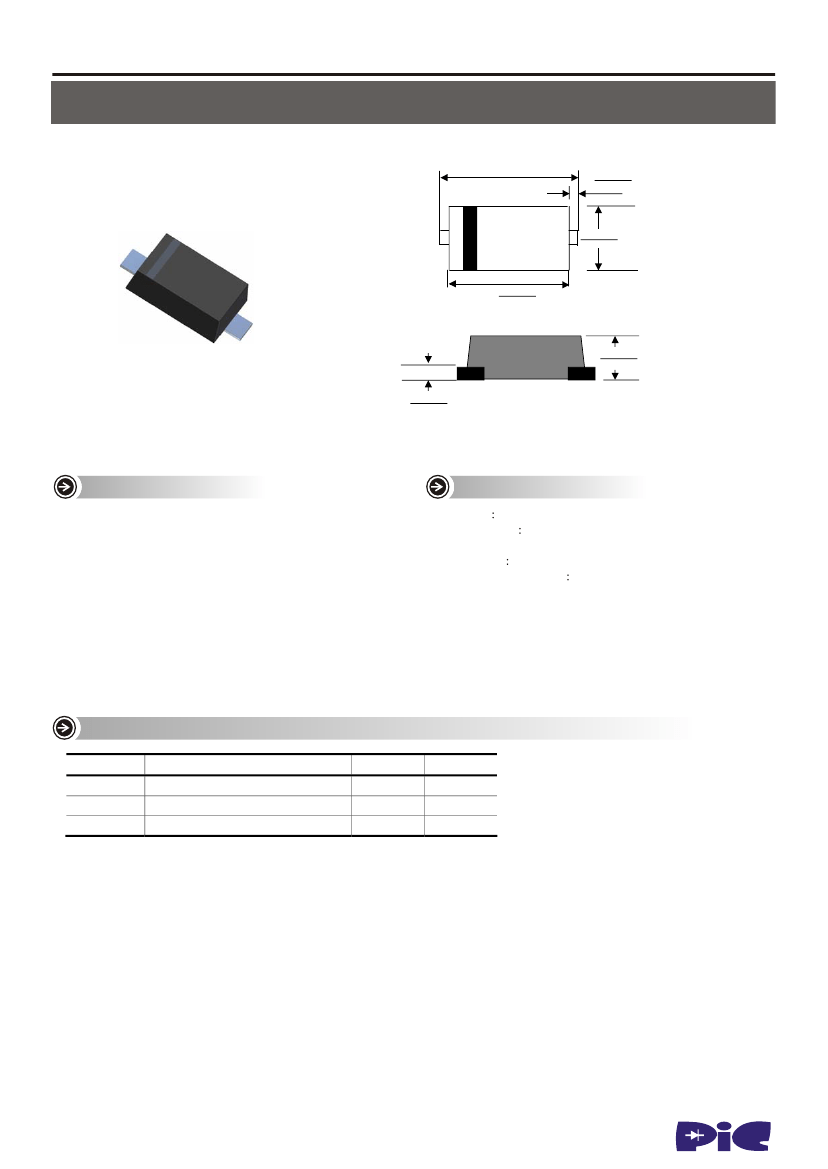

MMSZ2V4 thru MMSZ75V
SURFACE MOUNT ZENER TYPE
SOD-123
0.146(3.70)
0.130(3.30)
0.0028(0.70)
0.020(0.50)
0.067(1.7)
0.059(1.5)
0.0106(2.70)
0.098(2.50)
0.039(1.00)
0.031(0.80)
0.008(0.20)
0.002(0.05)
Dimensions in inches and (millimeters)
FEATURES
Wide Zener Voltage Range Selection, 2.4V to 75V
VZ Tolerance Selection of ±5% (C Series)
Flat Lead SOD-123 Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
Clip Bonding Construction, Good Thermal Capability
Pb Free Version and RoHS Compliant
Matte Tin(Sn) Lead Finish with Nickel(Ni) Underplate
Band Indicates Cathode
MECHANICAL DATA
Case Molded plastic, JEDEC SOD-123
Terminals Solder Plated, solderable per
MIL-STD-750, Method 2026
Polarity Indicated by cathode band
Mounting Position Any
MAXIMUM RATINGS
(at T
A
=25 C unless otherwise noted)
o
Symbol
P
D
T
STG
T
OPR
Parameter
Power Dissipation
Storage Temperature Range
Operating Temperature Range
Value
500
-65 to +150
-65 to +150
Units
mW
°C
°C
These ratings are limiting values above which the serviceability of the diode may be impaired.
www.paceleader.tw
1
4
MMSZ2V4 thru MMSZ75V
SURFACE MOUNT ZENER TYPE
ELECTRICAL CHARACTERISTICS
(at T
A
=25 C unless otherwise noted)
o
Device
Type
MMSZ2V4
MMSZ2V7
MMSZ3V0
MMSZ3V3
MMSZ3V6
MMSZ3V9
MMSZ4V3
MMSZ4V7
MMSZ5V1
MMSZ5V6
MMSZ6V2
MMSZ6V8
MMSZ7V5
MMSZ8V2
MMSZ9V1
MMSZ10V
MMSZ11V
MMSZ12V
MMSZ13V
MMSZ15V
MMSZ16V
MMSZ18V
MMSZ20V
Device
Marking
Min
2V4Z
2V7Z
3V0Z
3V3Z
3V6Z
3V9Z
4V3Z
4V7Z
5V1Z
5V6Z
6V2Z
6V8Z
7V5Z
8V2Z
9V1Z
10VZ
11VZ
12VZ
13VZ
15VZ
16VZ
18VZ
20VZ
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.11
7.79
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
V
Z
@ I
ZT
(Volts)
Nom
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
Max
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.86
8.61
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
94
94
89
89
84
84
84
75
56
37
9
14
14
14
14
18
18
23
28
28
37
42
51
65
75
75
75
84
122
141
160
169
188
202
226
240
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
564
564
564
564
564
564
564
470
451
376
141
75
75
75
94
141
141
141
160
188
188
212
212
235
282
282
306
329
329
353
353
376
400
423
447
470
I
R
@ V
R
(µA)
Max
45
18
9
4.5
4.5
2.7
2.7
2.7
1.8
0.9
2.7
1.8
0.9
0.63
0.45
0.18
0.09
0.09
0.09
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
V
R
(Volts)
1
1
1
1
1
1
1
2
2
2
4
4
5
5
6
7
8
8
8
10.5
11.2
12.6
14.0
16.8
18.9
21.0
23.0
25.2
27.3
30.1
33.0
35.7
39.2
43.4
47.6
52.5
MMSZ24V
24VZ
22.80
24
25.20
5
MMSZ27V
27VZ
25.65
27
28.35
5
MMSZ30V
30VZ
28.50
30
31.50
5
MMSZ33V
33VZ
31.35
33
34.65
5
MMSZ36V
36VZ
34.20
36
37.80
5
MMSZ39V
39VZ
37.05
39
40.95
5
MMSZ43V
43VZ
40.85
43
45.15
5
MMSZ47V
47VZ
44.65
47
49.35
5
MMSZ51V
51VZ
48.45
51
53.55
5
MMSZ56V
56VZ
53.20
56
58.80
5
MMSZ62V
62VZ
58.90
62
65.10
5
MMSZ68V
68VZ
64.60
68
71.40
5
MMSZ75V
75VZ
71.25
75
78.75
5
V
F
Forward Voltage = 900mV Maximum @
I
F
= 10 mA for all types
Notes:
1.
2.
3.
4.
The Zener Voltage (V
Z
) is tested under pulse condition of 10mS.
The device numbers listed have a standard tolerance on the nominal zener voltage of ±5%.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest
YEASHIN
representative.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
www.paceleader.tw
2
MMSZ2V4 thru MMSZ75V
SURFACE MOUNT ZENER TYPE

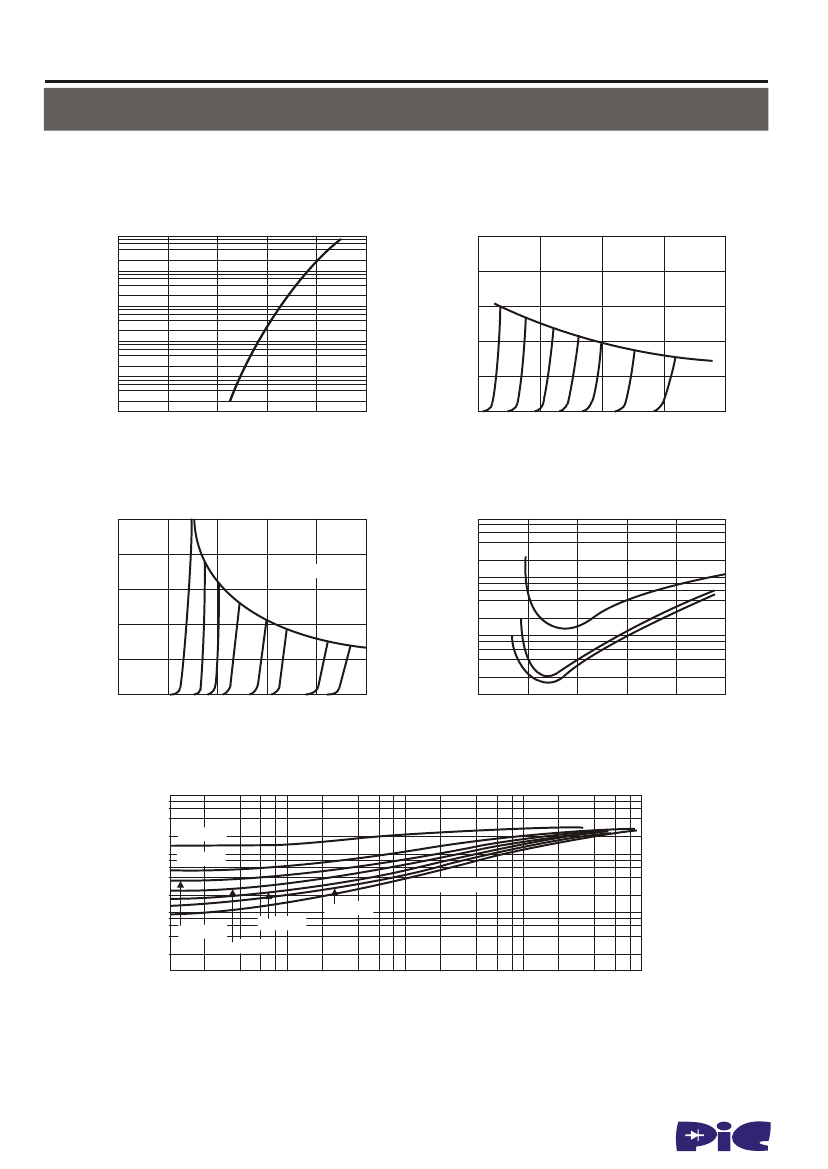

FIG.1-TOTAL POWER DISSIPATION VS.
AMBIENT TEMPERATURE
600
TOTAL POWER DISSIPATION (mW)
FIG. 2-TYPICAL CHANGE OF WORKING VOLTAGE
o
UNDER OPERATING CONDITIONS AT T
A
=25 C
1000
500
VOLTAGE CHANGE (mV)
I
Z
= 5mA
100
400
300
200
10
100
0
0
40
80
120
o
0
160
200
0
5
10
15
20
25
AMIBIENT TEMPERATURE ( C)
ZENER VOLTAGE (V)
FIG. 3-TYPICAL CHANGE OF WORKING VOLTAGE
VS. JUNCTION TEMPERATURE
1.3
TEMPERATURE COEFFICIENT (10 / K)
RELATIVE VOLTAGE CHANGE
-4
FIG. 4-TEMPERATURE COEFFICIENT OF VZ
VS. Z-VOLTAGE
15
1.2
10 x 10 /K
1.1
8 x 10 /K
-4
6 x 10 /K
4 x 10 /K
-4
2 x 10 /K
0
-4
-2 x 10 /K
-4
-4 x 10 /K
-4
-4
-4
10
I
Z
= 5mA
5
1.0
0
0.9
0.8
-60
0
60
120
o
-5
180
240
0
10
20
30
40
50
JUNCTION TEMPERATURE ( C)
ZENER VOLTAGE (V)
FIG. 5-DIODE CAPACITANCE VS. Z-VOLTAGE
200
DIODE CAPACITANCE (pF)
150
100
50
0
0
5
10
15
20
25
ZENER VOLTAGE (V)
www.paceleader.tw
3
MMSZ2V4 thru MMSZ75V
SURFACE MOUNT ZENER TYPE
FIG. 6-FORWARD CURRENT
VS. FORWARD VOLTAGE
100
50
FIG. 7-Z-CURRENT VS. Z-VOLTAGE
FORWARD CURRENT (mA)
ZENER CURRENT (mA)
10
40
P
tot
= 500mW
30
1
0.1
20
0.01
10
0.001
0
0.2
0.4
0.6
0.8
1.0
FORWARD VOLTAGE (V)
0
15
20
25
ZENER VOLTAGE (V)
30
35
FIG. 8-Z-CURRENT VS. Z-VOLTAGE
FIG. 9-DIFFERENTIAL Z-RESISTANCE VS. Z-VOLTAGE
100
DIFFERENTIAL Z-RESISTANCE (ohm)
1000
ZENER CURRENT (mA)
80
P
tot
= 500mW
60
I
Z
= 1mA
100
I
Z
= 5mA
10
40
20
I
Z
= 10mA
1
0
0
4
8
12
16
20
ZENER VOLTAGE (V)
0
5
10
15
20
25
ZENER VOLTAGE (V)
FIG. 10-THERMAL RESPONSE
THERMAL RESISTANCE FOR PULSE Cond. (K/W)
1000
t
p
/ T= 0.5
100
t
p
/ T= 0.2
Single Pulse
10
t
p
/ T= 0.1
t
p
/ T= 0.02
t
p
/ T= 0.05
1
0.1
1
10
PULSE LENGTH (mS)
100
1000
t
p
/ T= 0.01
www.paceleader.tw
4
