SL1-010-G379-99: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SL1-010-G379-99 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

SL1-010-G379-99 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166300316
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.125 inch
body length	1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Insulation resistance	10000000000 Ω
Insulator color	BLACK
JESD-609 code	e3
Manufacturer's serial number	SL
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

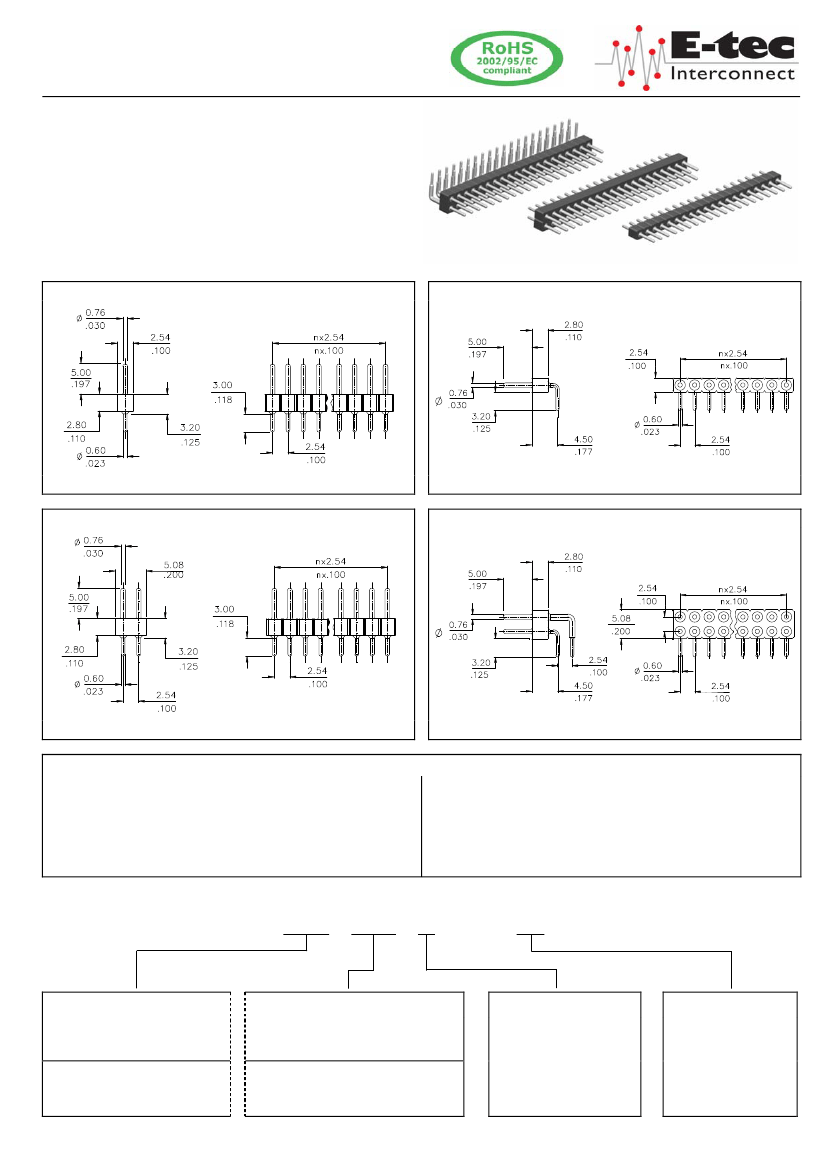

SL - Series „Jumbo“ Male Headers

2,54mm pitch

2,54mm pitch male header with precision turned „Jumbo“

pin,



0,76mm / .030“, for board to board connections.

Mates with the „Jumbo Contact“ female headers shown in

this catalogue.

The pin headers are stackable

and available in single and double row version.

The pins are either completely gold or tin plated.

single row

-straight-

single row

-right angle-

SL1 - xxx - G379 - xx

dual row

-straight-

SL1 - xxx - A379 - xx

dual row

-right angle-

SL2 - xxx - G379 - xx

Specifications

Material

Insulator

(RoHS compliant)

Terminal

(RoHS compliant)

Operating temperature

high temp plastic UL 94 V-O

CuZn

-55° C to +125° C

Electrical data

SL2 - xxx - A379 - xx

Insulation resistance

Breakdown voltage

Rated voltage

Contact resistance

Current rating

10

4

M min.

500 V AC for 1 minute

60 V RMS / 90 V DC

30 m / contact max.

3 A max.

SLx - xxx - X 379 - xx

How to order

Series

SL1

=

single row..…

Nbr of contacts

…………002

….004

to

Terminal style

G

A

=

straight

right angle

-

99

-

55

Plating

=

tin

gold

040

(tin leadfree)

064

on request only

SL2

=

dual row….....

080

072

(straight style)

(right angle style)

13
