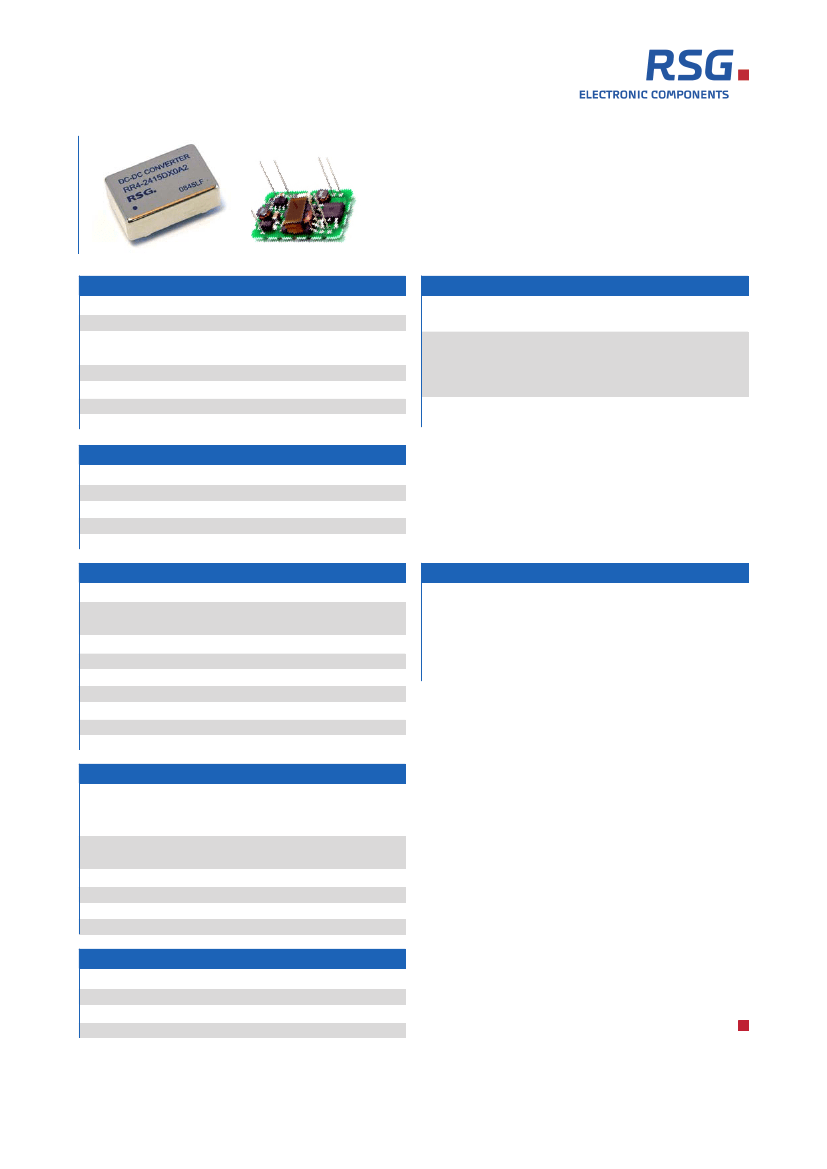

RR4-S06/D06
6 Watt 2:1 regulated
single & dual output
DIP24, wide
2:1 input range
■
Full SMD technology
■
1500 VDC isolation up to 3500 VDC isolation
■
Continuous short circuit protection
■
Efficiency up to 83%
■
-40°C~85°C operation temperature range
■
Optional plastic case
■
OUTPUT SPECIFICATIONS
± 1%
± 0.5%
± 0.5%
(Output 3.3 V Model)
± 1.5%
Ripple & Noise
(20 MHz bandwith) (1)
60 mV pk-pk
Short circuit protection
Indefinite (automatic recovery)
Temperature coefficient
± 0.02%/°C
Capacitor load
(2)
See table
Voltage accuracy
Line regulation
Load regulation
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input voltage (100 mS)
12 modes
-0.7 ~ 24 VDC
24 modes
-0.7 ~ 40 VDC
48 modes
-0.7 ~ 80 VDC
Lead soldering temperature
260°C
(1.5 mm from case 10 sec.)
INPUT SPECIFICATIONS
Voltage range
Max. input current
No-load input current
Input filter
Input reflected ripple current
(3)
See table
See table
See table
PI Type
35 mA pk-pk
All specifications typical at Ta = 25°C, nominal input voltage and full load
unless otherwise specified.
The information and specifications contained in this data sheet are believed
to be correct at time of publication. However, we accept no responsibility
for consequences arising from printing errors or inaccuracies.
Subject to change without notice.
GENERAL SPECIFICATIONS
Efficiency
See table
I/O isolation voltage
(3 sec.)
Input / output
1500 ~ 3500 VDC
Metal case / input & output
1000 VDC
I/O isolation capacitance
470 pF typ.
I/O isolation resistance
1000 M Ohm
Switching frequency
typ. 266 kHz
Humidity
95% rel. H
Reliability calculated MTBF
(MIL-HDBK-217F)
> 1.121 Mhrs.
Safety standard
(designed to meet)
IEC 60950-1:2001
NOTE
1) Typical value at nominal input voltage and full load.
2) Tested by nominal Vin and constant resistive load.
3) Measured input reflected ripple current with a simulated
source inductance of 12uH.
4) Exceeding the absolute ratings of the unit could cause
damage. It is not allowed for continuous operating.
PHYSICAL SPECIFICATIONS
Case material
Nickel-coated copper
Non-conductive black plastic
(UL94V-0 rated)
Non-conductive black plastic
(UL94V-0 rated)
Ø 0.5 mm brass solder-coated
Epoxy (UL94V-0 rated)
Metal 17 g, plastic 13.5 g
1.25“ x 0.8“ x 0.4“
The models listed are just for standard type. If you need a
special specification product, please contact our service.
Phone: +49 69 984047-0, mail to: info@rsg-electronic.de
or use the forms on www.rsg-electronic.de („Kontakt“).
Base material
Pin material
Potting material
Weight
Dimensions
ENVIRONMENT SPECIFICATIONS
Operating temperature
(See derating curve)
-40°C~ 85°C
Maximum case temperature
100°C
Storage temperature
-40°C~125°C
Cooling
Nature convection
Page: 1/3
Last update: 12.02.09
RR4-S06/D06
6 Watt 2:1 regulated
single & dual output

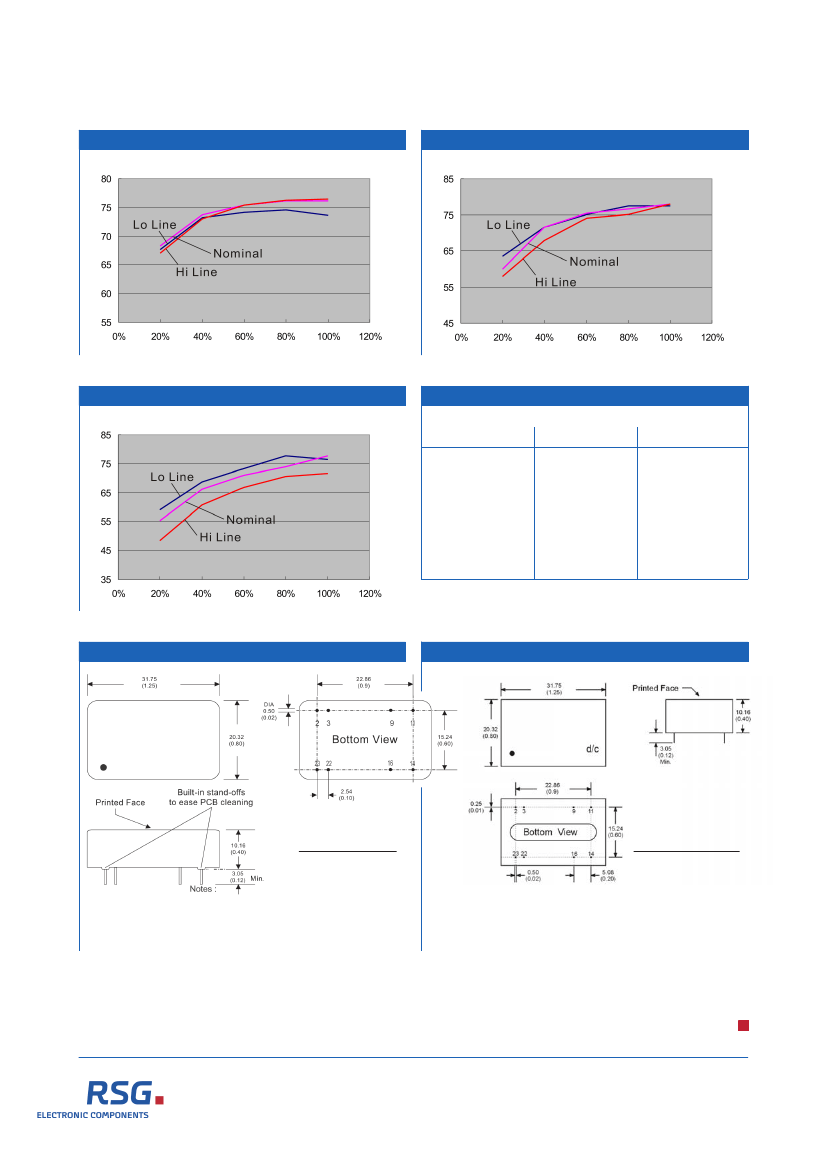

EFFICIENCY VS OUTPUT CURRENT 12
12 MODELS
EFFICIENCY VS OUTPUT CURRENT 24
24 MODELS
Efficiency (%)
Load
Efficiency (%)
Load
EFFICIENCY VS OUTPUT CURRENT 48
48 MODELS
PIN CONNECTIONS
Copper and Plastic models / High isolation same as normal
Pin Number
Single
Dual
2
3
9
11
14
16
22
23
-V Input
-V Input
N.P.
N.C.
+V Output
-V Output
+V Input
+V Input
-V Input
-V Input
Common
-V Output
+V Output
Common
+V Input
+V Input
Efficiency (%)
Load
MECHANICAL SPECIFICATIONS COPPER
MECHANICAL SPECIFICATIONS PLASTIC
RSG
RR4-XXXXX06AX
24 Pin DIL package
Nickel coated copper
24 Pin DIL package
Non-conductive Plastic
All dimensions are typical in millimeters (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
All dimensions are typical in millimeters (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
Page: 3/3
Last update: 16.01.09
RSG Electronic Components GmbH
Sprendlinger Landstr. 115
D-63069 Offenbach
Tel. +49 69 984047-0
Fax +49 69 984047-77
mail: info@rsg-electronic.de
www.rsg-electronic.de
