294256: Description0,8 DRC-Q, F 40 polig; CategoryThe connector The connector; File Size101KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

294256 Overview

0,8 DRC-Q, F 40 polig

294256 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99

Preview

Download Datasheet

View All

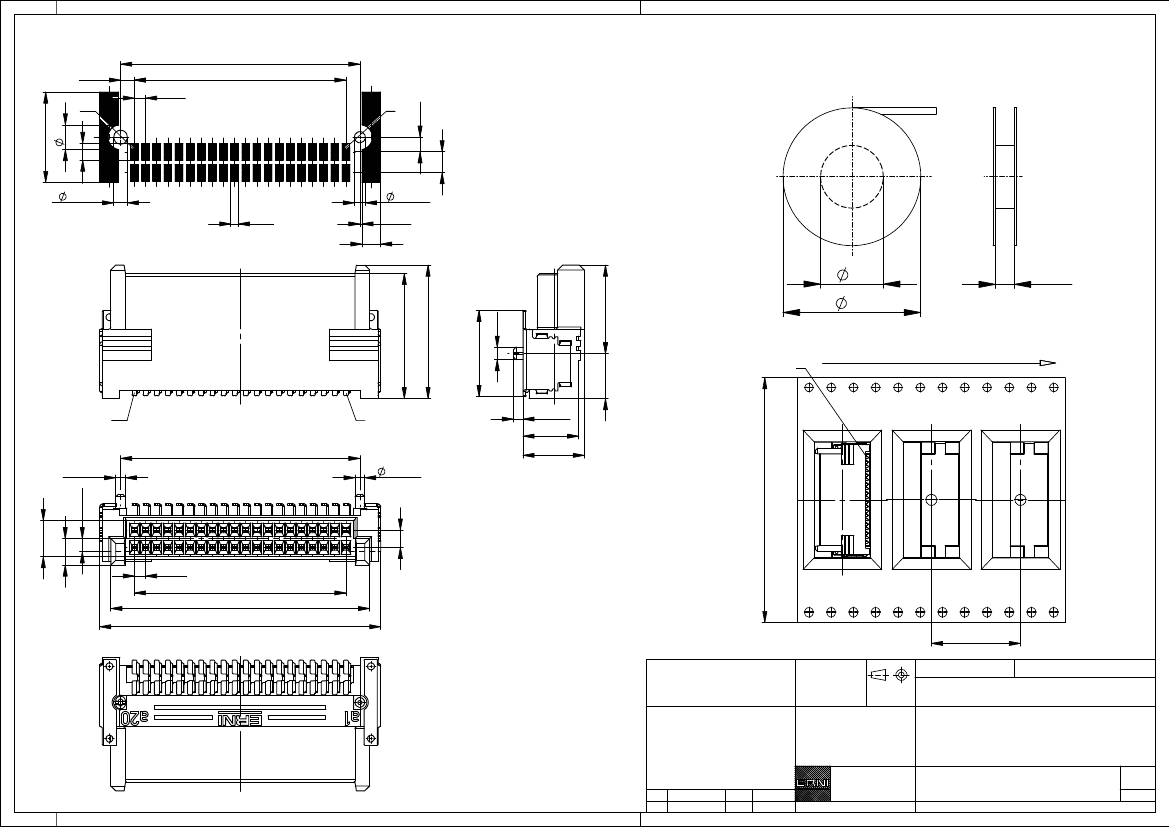

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

17,2

±0,03

0,8

a20

6,5

1,8

19 x 0,8 = 15,2

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 650 Stück -

Packaging unit: 650 pcs

1,05

0,8

-0,03

1,5

-0,03

0,55

1,35

1,2

0,15

150

0,9

6,35

44,5

330

Abspulrichtung -

Reel off Direction

9,6

6,2

b20

17,2

±0,03

0,7

-0,03

0,95

0,7

-0,05

4,4

0,7

-0,03

Anforderungsstufe 2

1,25

Performance Level 2

Kontaktbereich vergoldet

2,6

1,9

Mating Area gold plating

0,8

19 x 0,8 = 15,2

18,6

20,2

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

Information:

Tolerances

All Dimensions

in mm

3,25

Proprietary notice pursuant to ISO 16016 to be observed.

Scale

5:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

e03

Index

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

0,8 DRC-Q, F 40 polig

0,8 DRC-Q, F 40 pin

www.ERNI.com

Class

294256

DRCQ
