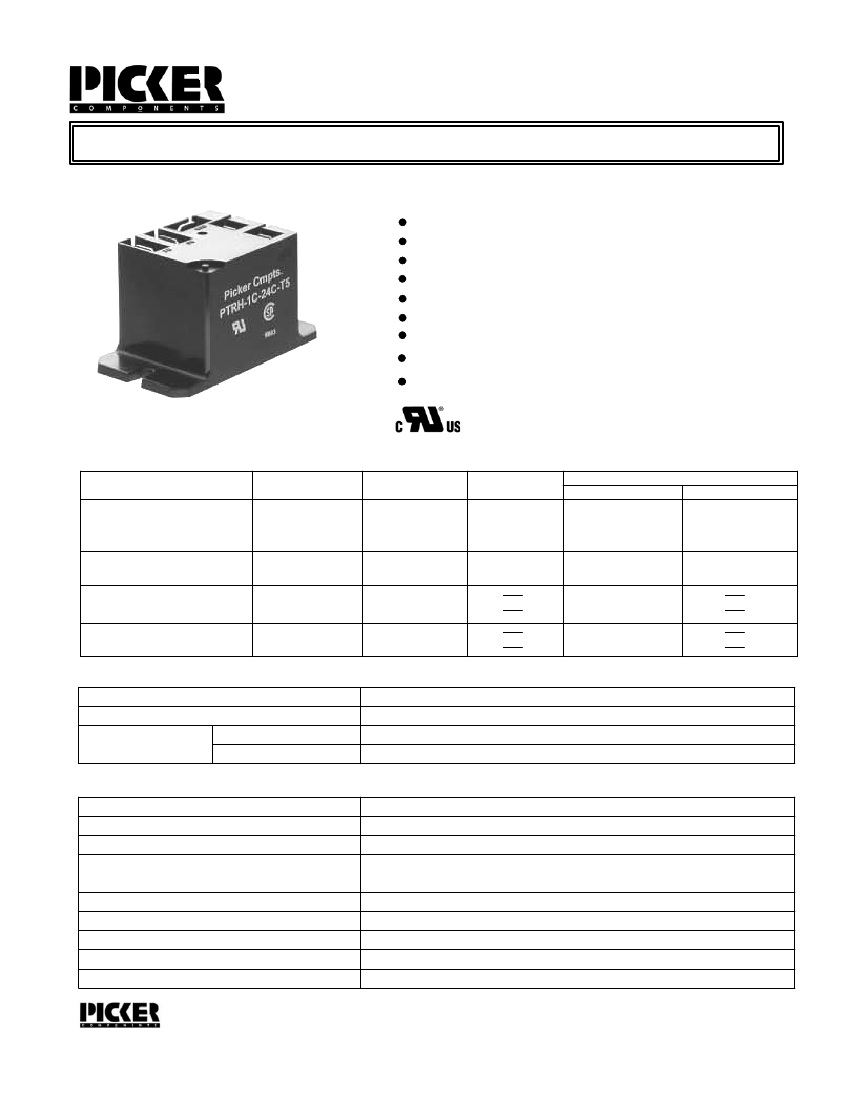

30 AMP Panel Mount or PCB Power Relay
PTRH-T
FEATURES
Panel or PC mount with QC terminals for the load
Up to 30 amp switching capacity
Up to 2 horsepower rating
Gold flashed contacts available
UL Class B insulation standard
UL Class F insulation available
UL 873 spacing standard
Epoxy sealed, immersion cleanable
Lead Free & RoHS Compliant
File # E93379
UL/CSA RATINGS
Load Type
Voltage
120 VAC
250 VAC
30 VDC
120 VAC
250 VAC
250 VAC
120 VAC
250 VAC
120 VAC
1 Form A
(SPST-NO)
30 A
30 A
30 A
30 A
30 A
2 HP
1 HP
80 A/30 A
96 A/30 A
1 Form B
(SPST-NC)
20 A
20 A
20 A
20 A
20 A
1 Form C (SPDT)
NO
30 A
30 A
30 A
30 A
30 A
2 HP
1 HP
80 A/30 A
96 A/30 A
NC
20 A
20 A
20 A
20 A
20 A
General Purpose
Resistive ( 100,000 cycles)
Motor ( 30,000 cycles )
LRA/FLA
(locked rotor amps/full load amps)
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgCdO (Silver Cadmium Oxide), AgCdO+Au (Silver Cadmium Oxide with Gold flash)
50 milliohms max @ 0.1A, 6VDC
1 X 10
7
1 X 10
5
Operations
Operations
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature Range
Weight
15 ms. Max
10 ms. Max
1,000 megohms min, at 500VDC, 50%RH
1500 Vrms, 1 min. between open contacts
2500 Vrms, 1 min. between coil and contacts
10 g, 11ms, functional; 100 g, destructive
DA 1.5mm, 10-55 Hz
0.9W, approx.
-55 degrees C to 85 degrees C operating for class B, -40 to 130 degrees C storage
30 grams approx.
PTRH-T Rev D 3-25-04
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: (888)997-3933 Fax: (818) 342-5296 email: sales@pickercomponents.com URL: pickercomponents.com
PAGE 1
PTRH-T
ORDERING INFORMATION
Example:
Model
Contact Form
1A, 1B, or 1C
Coil Voltage
Configueration
Nil: Open Frame;
Contact Material
Nil: AgCdO;
T: AgSnO;
G: AgCdO+Au
Insulation Material
Nil: UL Class B; F: UL Class F
Mounting Type
T2: Form 1A PCB & QC, T3: Form 1C PCB & QC, T4: 1A Panel all QC, T5: 1C Panel all QC
Nil: Standard; -X ROHS Compliant
C: Dust Cover
S: Sealed plastic case
PTRH
-1C
-12
S
G
F
-T5
-X
PTRH-T
COIL DATA
Resistance
Coil Voltage
5
6
9
12
24
48
_
ohms + 10%
27
40
97
155
660
2560
Must Operate
Voltage Max.
(VDC)
3.75
4.50
6.75
9.00
18.00
36.00
Must Release
Voltage Min.
(VDC)
0.5
0.6
0.9
1.2
2.4
4.8
11.0
Continuous
Voltage Max.
(VDC)
5.5
6.6
9.9
13.2
26.4
52.8
121.0
Pin Layout
Bottom View
Including Schematic
.250 Ref.
(6.35)
110
10330
82.50
Note: Custom coil voltages within the ranges shown are available on special order.
1.27
(32.2)
max
Overall Dimensions
Inches (millimeters)
1.08
(27.5)
max
1.10
(28.0)
max
.440
(11.2) .300
(7.6)
.600
(15.2) .500
(12.7)
NO
COM
NC
1.71
(43.5)
Notes:
Breakable nib may be removed after flux removal.
PC mount has .250 male QC terminals for load.
Panel mount has .250 male QC terminals for the load
and .187 male QC terminals for the coil.
Tolerances + .010 unless otherwise noted
Holes for load term. .081 + .005 Dia. (2.06 + .13)
Holes for Coil term. .043 + .003 Dia. (1.09 + .08)
.150
(3.81)
.550
(13.97)
.700
(17.78)
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: (888)997-3933 Fax: (818) 342-5296 email: sales@pickercomponents.com URL: pickercomponents.com
PAGE 2
