QT5003CGM-1.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> QT5003CGM-1.000MHZ

QT5003CGM-1.000MHZ: DescriptionHCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5; CategoryPassive components oscillator; File Size4MB，6 Pages; ManufacturerQ-TECH Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

QT5003CGM-1.000MHZ Overview

HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5

QT5003CGM-1.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1290960956
package instruction	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BLACK FOAM
Ageing	1.5 PPM/15 YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.1%
Frequency Stability - Voltage	0.02 ppm
JESD-609 code	e4
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	10 KOHM, 15 pF
Oven power supply voltage	3.3V
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Maximum warm-up time	5 Minute

Preview

Download Datasheet

View All

Q-TECH

CORPORATION

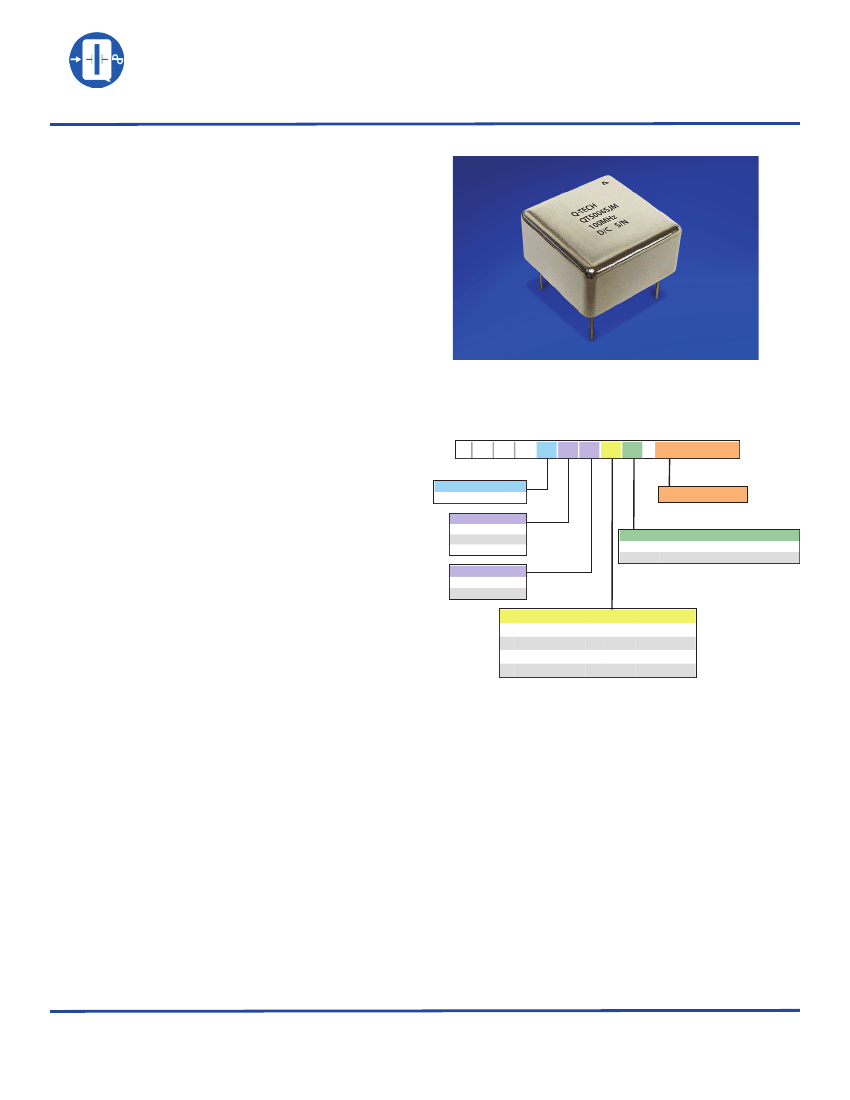

QT5000 SERIES - ONE INCH SQUARE LOW PHASE NOISE OCXO

3.3 to 12Vdc - 1MHz to 125MHz

A flexible design allows Q-Tech Corporation to offer a variety

of choices of output standard, power and load. Based on this

flexibility, Q-Tech welcomes specifications with parameters

other than standard.

Low G-Sensitivity SC-Cut Crystal utilized in the design

guarantees 1PPB/G or better. The reliable construction of this

design qualifies it for stringent environmental applications.

Q-Tech’s High Stability OCXO is a high reliability signal

generator that provides an HCMOS or Sine Wave output. The

OCXO is available in a Through hole package.

Description

Ordering Information

Q T 5

• Made in the USA

• ECCN: EAR99

• DFARS 252-225-7014 Compliant:

Electronic Component Exemption

• USML Registration # M17677

• Supply voltages 3.3Vdc, 5Vdc and 12Vdc

• Wide temperature range (-40ºC to +85ºC)

• SC-Cut crystal

• Low phase noise and jitter

• Choice of output power and load

• Hermetically sealed packages

• Custom design available tailored to meet customer’s needs

• Q-Tech does not use pure lead or pure tin in its products

Features

Q T50 0 6S J M - 1 00 . 0 0 0M H z

(Sample part number)

J M - 100.000MHz

Output Frequency

Screening Option:

Blank = No Screening

M = Per MIL-PRF-55310, Level B

Package Type:

0 = Through Hole

Supply Voltage:

3 = +3.3V

5 = +5.0V

6 = +12.0V

Logic:

C = HCMOS

S = Sine Wave

Frequency vs. Temperature Code

= ± 100PPB at -20ºC to +70ºC

= ± 10PPB at -20ºC to +70ºC

= ± 200PPB at -40ºC to +85ºC

= ± 20PPB at -40ºC to +85ºC

For Non-Standard requirements, contact Q-Tech Corporation at

Sales@Q-Tech.com

Packaging Options

• Standard packaging in black foam

• Designed to meet today’s requirements for communication

systems.

• Wide military clock applications

• Control and measurement

• Signal processing

Applications

• Phase Noise test (Static and under vibration)

• Jitter test

Other Options Available For An Additional Charge

Specifications subject to change without prior notice.

Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech .com

QPDS-0005 (Revision B, June 2019)

1 of 6

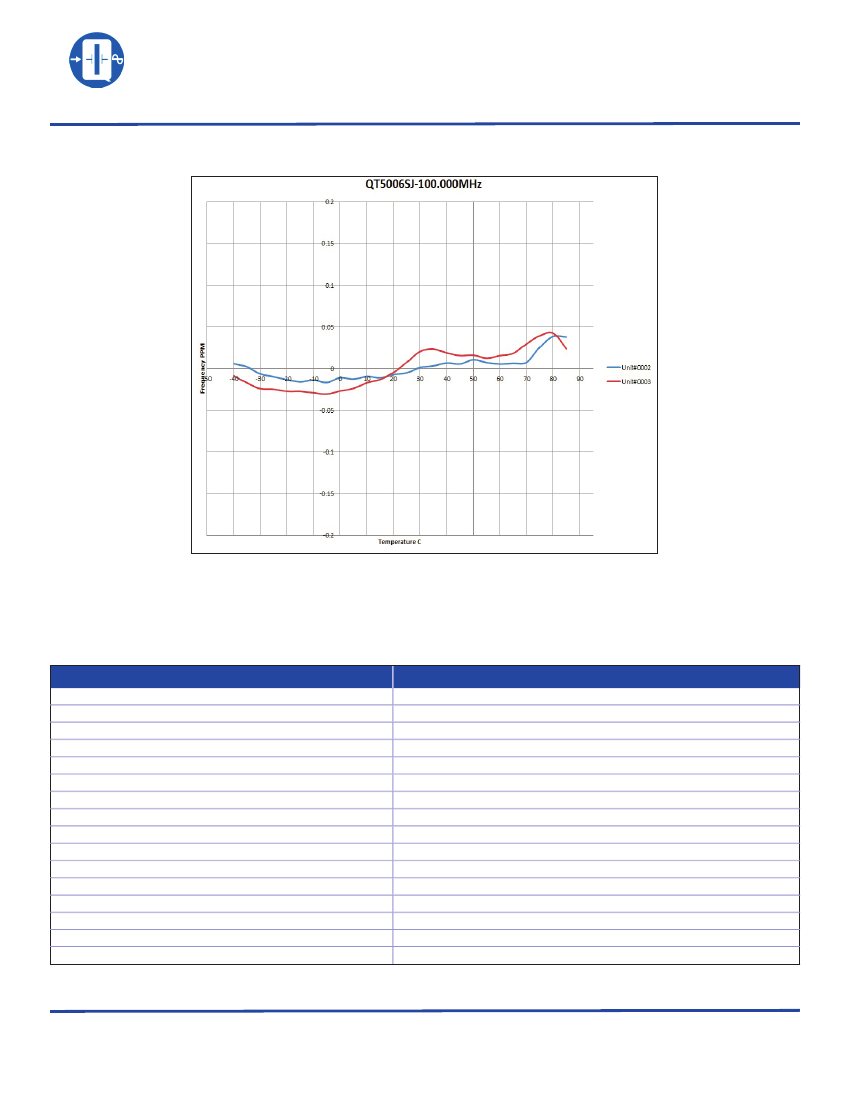

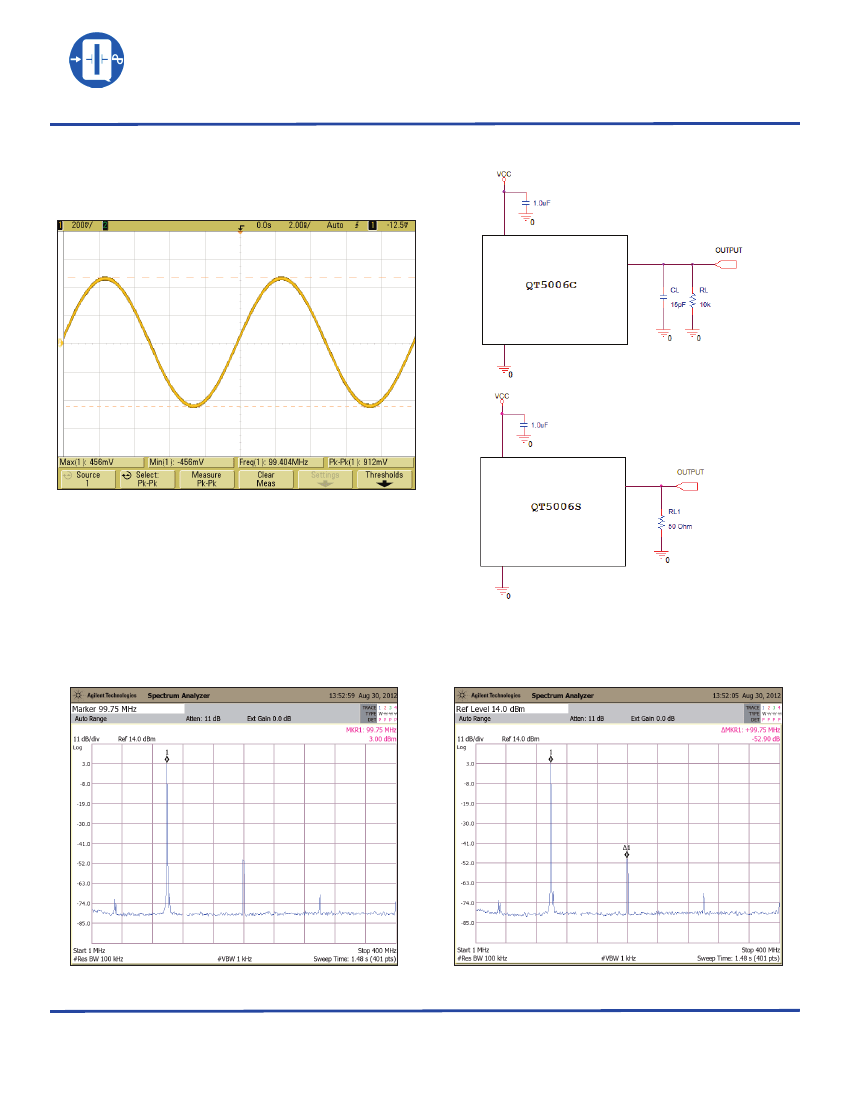

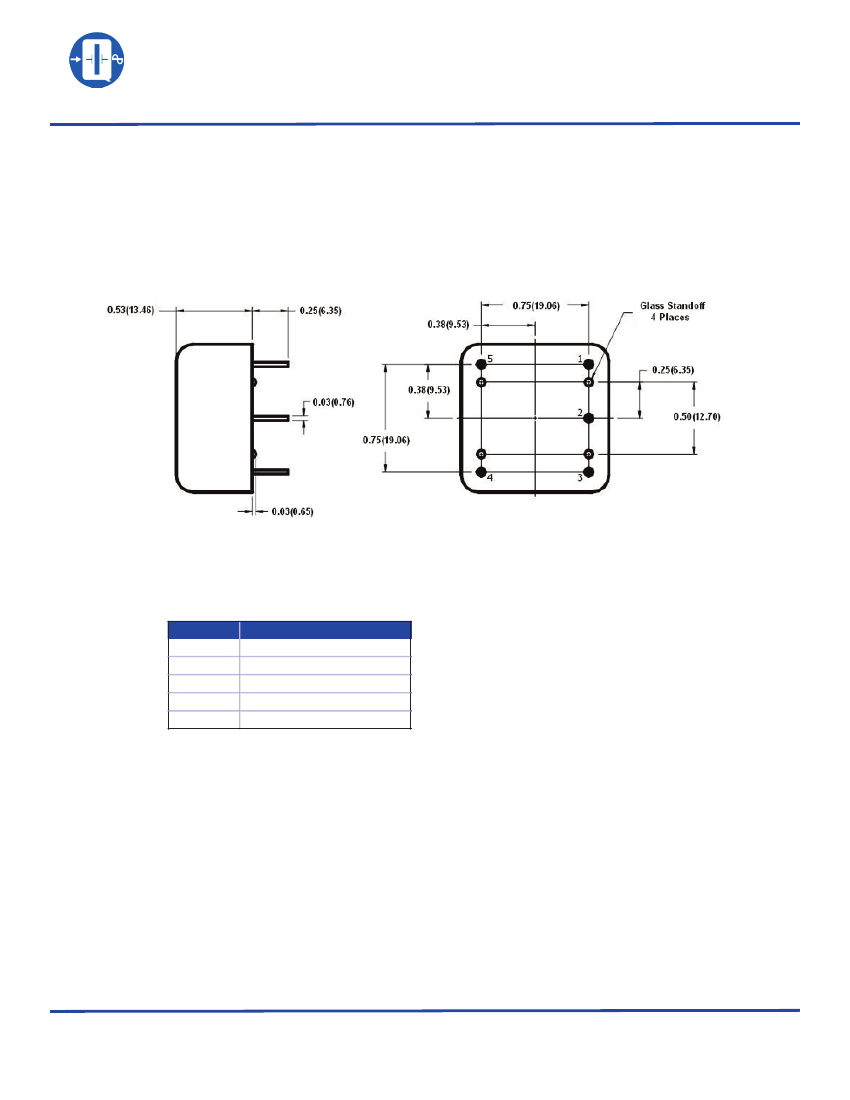

QT5003CGM-1.000MHZ Related Products

	QT5003CGM-1.000MHZ	QT5003CD-1.000MHZ	QT5003CDM-1.000MHZ	QT5003CDM-125.000MHZ	QT5003CH-1.000MHZ	QT5003CH-125.000MHZ	QT5003CHM-1.000MHZ	QT5003CHM-125.000MHZ	QT5003CJ-1.000MHZ	QT5003CJM-125.000MHZ
Description	HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 125MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 125MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 125MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 1MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	HCMOS Output Clock Oscillator, 125MHz Nom, DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	1290960956	1290960947	1290960950	1290960952	1290960959	1290960961	1290960962	1290960964	1290960965	1290960970
package instruction	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5	DFARS COMPLIANT, HERMETIC SEALED PACKAGE-5
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM	BLACK FOAM
Ageing	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR	1.5 PPM/15 YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	0.1%	0.02%	0.02%	0.02%	0.01%	0.01%	0.01%	0.01%	0.2%	0.2%
Frequency Stability - Voltage	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm	0.02 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	1 MHz	1 MHz	1 MHz	125 MHz	1 MHz	125 MHz	1 MHz	125 MHz	1 MHz	125 MHz
Maximum operating temperature	70 °C	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-40 °C	-40 °C	-40 °C	-20 °C	-20 °C	-20 °C	-20 °C	-40 °C	-40 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF	10 KOHM, 15 pF
Oven power supply voltage	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Maximum warm-up time	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute
