BG047-18-A-1064-0300-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG047-18-A-1064-0300-N-G

BG047-18-A-1064-0300-N-G: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BG047-18-A-1064-0300-N-G Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,

BG047-18-A-1064-0300-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166979707
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.358 inch
subject depth	0.519 inch
body length	1.201 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG047
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

2.50

Number of

Contacts

Dimensions

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

15.27

17.81

20.35

22.89

25.43

27.97

30.51

33.05

35.59

38.13

40.67

43.21

45.75

48.29

50.83

53.37

55.91

58.45

Number of

Contacts

Dimensions

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

60.99

63.53

66.07

68.61

71.15

73.69

76.23

78.77

81.31

83.85

86.39

88.93

6.40

B±0.25

2.54

6.50

2.54

1.15

A±0.25

4.50

8.90

2.54

Ø1

.0 2

Recommended PCB Layout

2.54

PIN 0.64 SQ

D±0.2

6.00

8.90

9.10

C±0.2

3.90

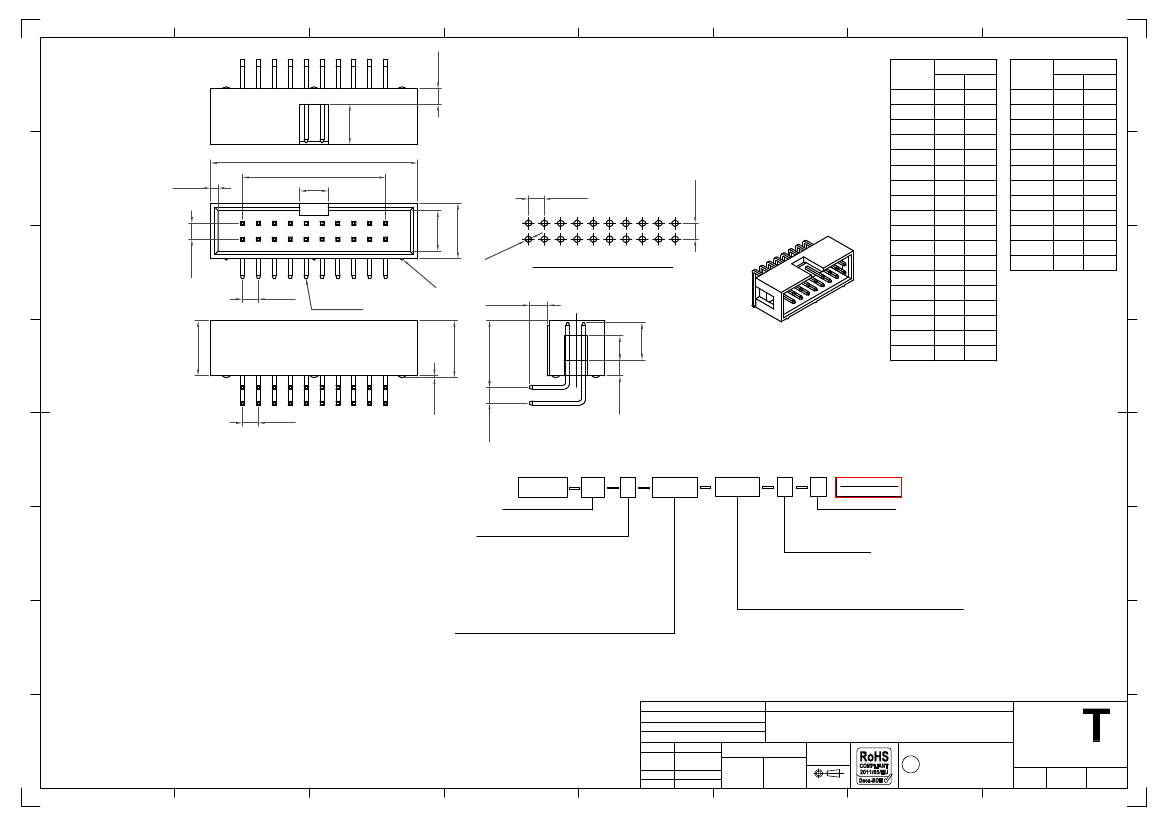

Specifications

规格

Insulator

绝缘½

Standard

标准

: Polyamide, Nylon 6T, UL94V-0

Options

可选

: Polyester, LCP, UL94V-0

Polyester, PBT, UL94V-0

Contact

接触

: Copper Alloy

Plating

电镀

Contact

接触

: See Ordering Grid

2.54

0.20

Ordering Grid

2.50

BG047

No. of Contacts

06 to 64

XXXX

Request Samples

and Quotation

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulation Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

寒耐电压

: 600 V AC

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5sec

LCP (Option

可选物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

)

Manual Solder

人工焊接

: 330°C for 3-5sec

(Not suitable for hi-temp process

不适合高温处理

)

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension C

(1/100mm) (Top of Insulator to Pin Center)

1064 = 10.64mm

(Standard)

Or specify custom Top of Insulator to Pin Center

eg. 0250 = 2.50mm

Packing Options

G = Plastic Box

(Standard)

D = Tube

Insulator Material

N = Nylon 6T

(Standard)

P = PBT

L = LCP

Dimension D

(1/100mm) (Insulator Edge to End of Pin)

0300 = 3.00mm

(Standard)

Or specify custom Insulator Edge to End of Pin

eg. 0250 = 2.50mm

Part Number

Product Description

BG047

Drawing Date

Mates with

配套之母座

(Subject to Pin Length

在端子长度适合的条件下

)

BG215

BG216 - Allowing perfect polarization

Non-Polarised mating connections available - contact GCT for details

5th April 2007

Detail

Revision

Date

ASE

Additional

Dimensions

05/05/15

Length

2.54mm pitch Shrouded Header

Dual Row, Through-Hole, Horizontal

Tolerances

(Except as Noted)

Angle

X. ± 0.30

X.° ± 5°

X.X ± 0.20

X.X° ± 2°

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

www.gct.co

Not to

Scale

Sheet No.

1/1

BG047-18-A-1064-0300-N-G Related Products

	BG047-18-A-1064-0300-N-G	BG047-38-A-1064-0300-N-G	BG047-44-A-1064-0300-N-G
Description	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to
Objectid	1166979707	1166980007	1166980097
Reach Compliance Code	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.358 inch	0.358 inch	0.358 inch
subject depth	0.519 inch	0.519 inch	0.519 inch
body length	1.201 inch	2.201 inch	2.501 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V
Durability	100 Cycles	100 Cycles	100 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON
JESD-609 code	e4	e4	e4
Manufacturer's serial number	BG047	BG047	BG047
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	18	38	44
