5203-J1ZQE2 datasheet, PDF - EEWORLD Datasheet

5203-J1ZQE2: DescriptionRocker Switch, DPDT, On-off-on, Maintained, 5A, 28VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size52KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

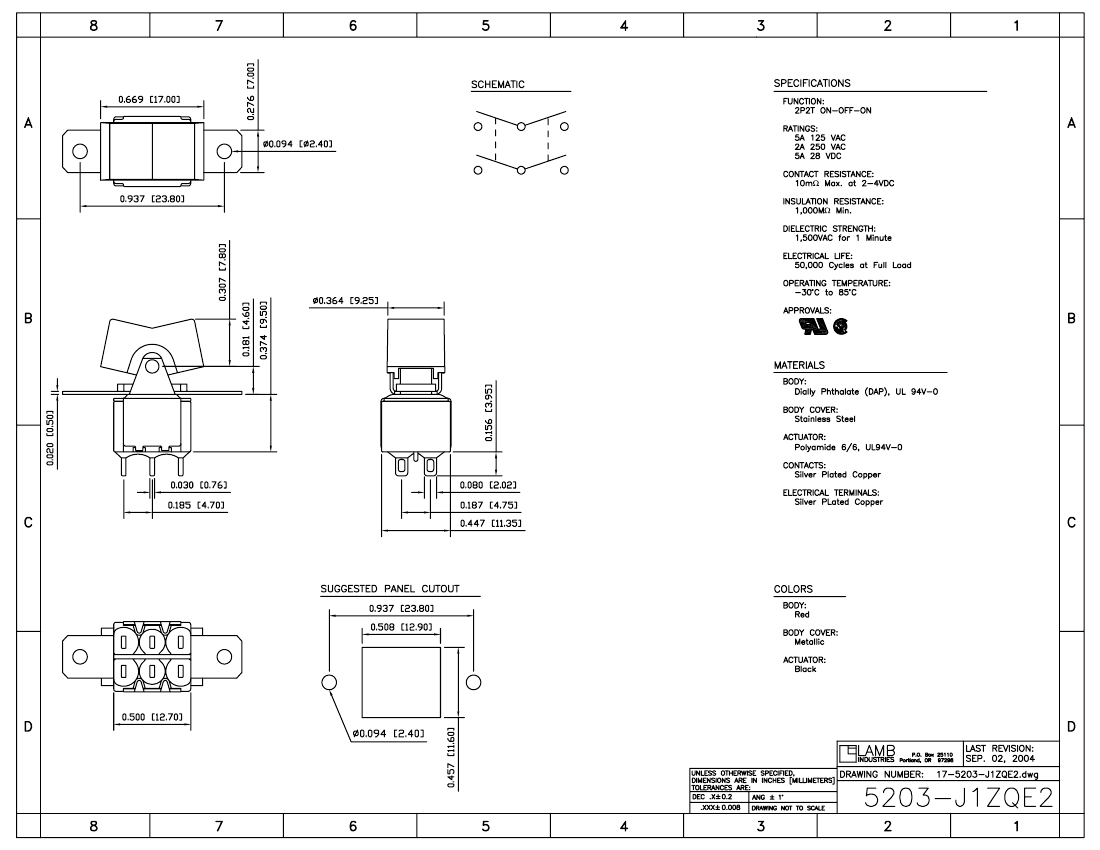

5203-J1ZQE2 Overview

Rocker Switch, DPDT, On-off-on, Maintained, 5A, 28VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Objectid	303936389
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.488 inch
Actuator material	POLYAMIDE
Actuator type	ROCKER
Other features	APPROVALS:UL, CSA
body width	11.3538 mm
Body color	RED
body height	9.4996 mm
Body length or diameter	12.7 mm
center contact material	COPPER
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	ON-OFF-ON
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1500VAC V
Electrical life	50000 Cycle(s)
End contact material	COPPER
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	5000
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	MAINTAINED
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal length	0.156 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
