RJC094XK2B102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RJC094XK2B102

RJC094XK2B102: DescriptionTrimmer, Cermet, 0.75W, 1000ohm, 20% +/-Tol, 15 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size1MB，3 Pages; ManufacturerTokyo Cosmos Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

RJC094XK2B102 Overview

Trimmer, Cermet, 0.75W, 1000ohm, 20% +/-Tol, 15 Turn(s), ROHS COMPLIANT

RJC094XK2B102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1257555825
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SCREW
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	15
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
resistance	1000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
surface mount	NO
technology	CERMET
Terminal shape	WIRE
Tolerance	20%

Preview

Download Datasheet

View All

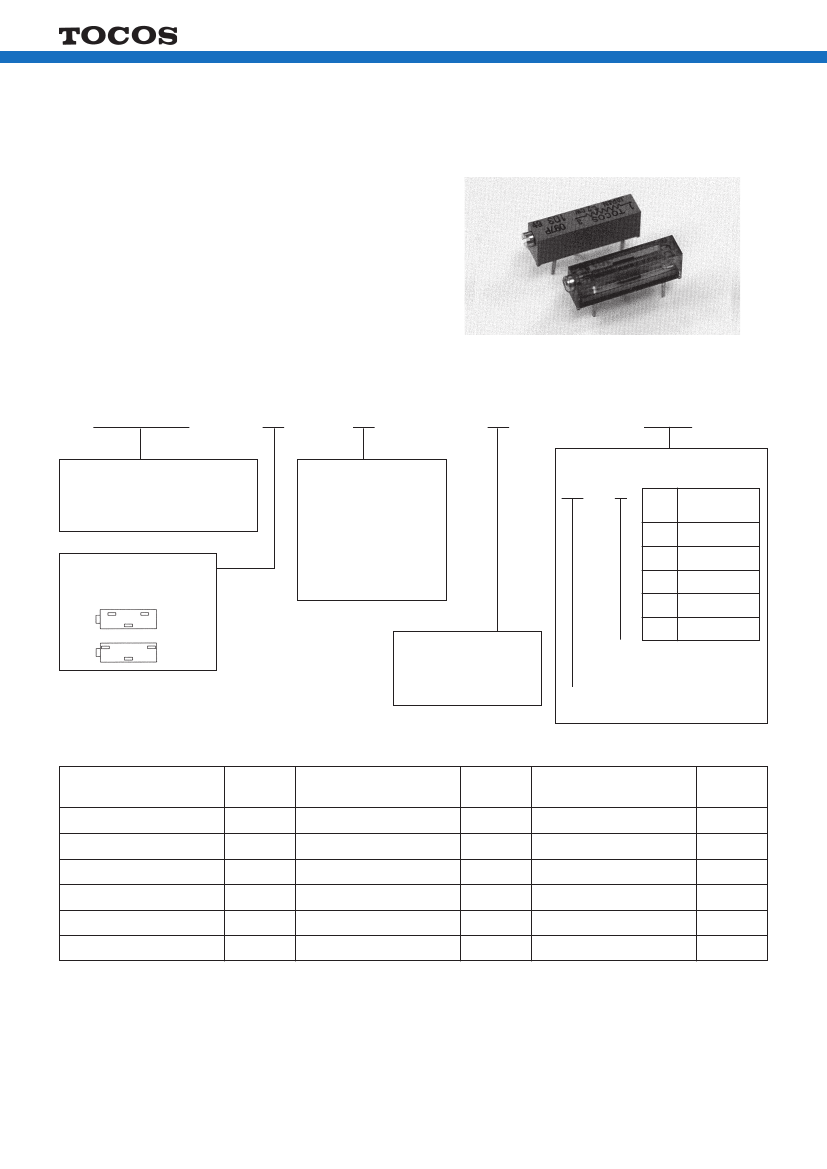

RJCO94Series

15TURNS CERMET TRIMMERS　　　　　　

RJCO97Series

15回転型　サーメットトリマ

15 TURNS CERMET TRIMMERS　　　　　　

■特徴

　FEATURES

●微調整が容易

●設定性及び設定安定性の優れた貴金属合金マルチ接点ワイパー採用

●密封構造につき各種洗浄液による洗浄可½

●15-turn design for more accurate adjustment.

●High setting stability with precious metal, multi contact wiper design.

●Sealed to withstand immersion cleaning processes with various

●cleaning

agent．

RoHS 指令対応　RoHS compliant

■品名構成

　PART NUMBER COMPOSITION

RJC094

シリーズ名　Series name

　RJC094シリーズ：透明タイプ

See through type

　RJC097シリ−ズ：不透明タイプ

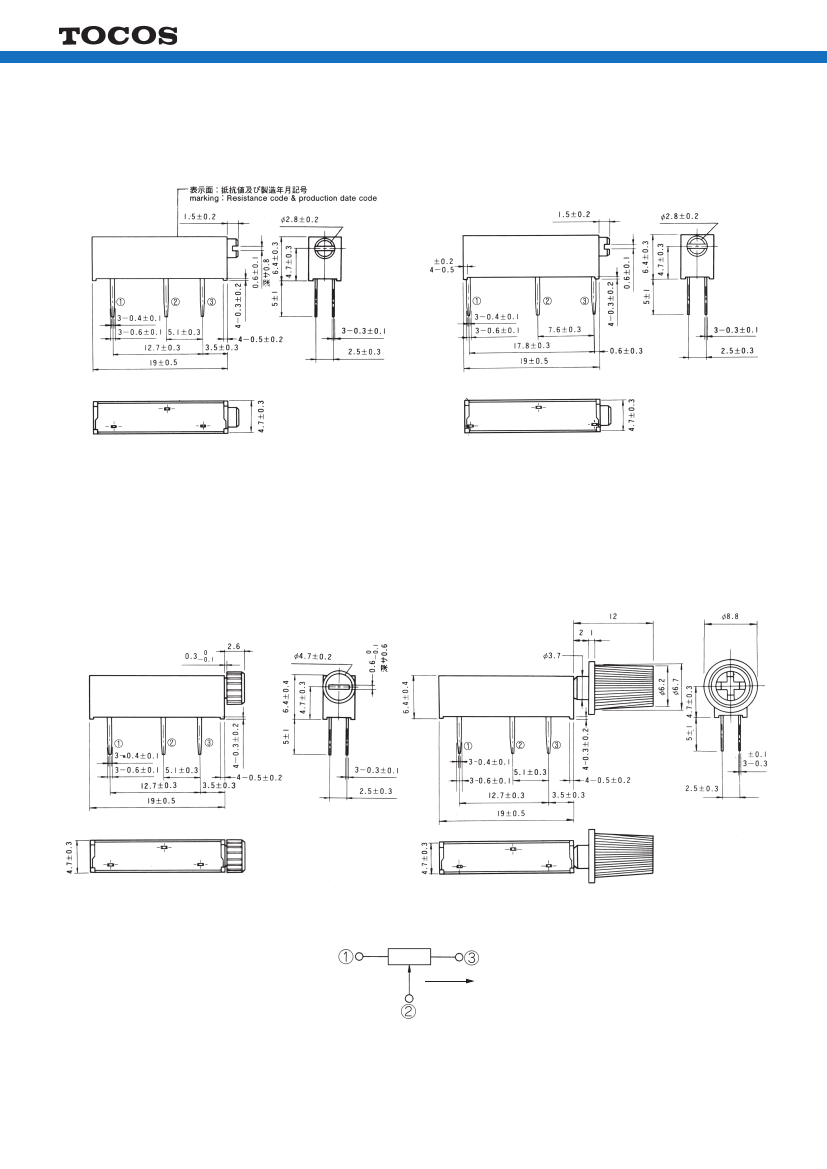

端子½状

　Shape of terminal

Bottom view

P：

X：

ツマミ付

With knob

　K：ツマミ小

　　　Small knob

　K2：ツマミ大

　　　 Large knob

　無印：ツマミ無し

　Blank：Without knob

102

公称抵抗値（３桁）

Nominal resistance value（3 digits）

□□　　 □

乗数

記号

Multiplier

Code

…

×10

×…

×10

抵抗変化特性

Resistance taper

　　　Ｂ：直線性

　　　　　Linear

　　　　乗数

　　　　 Multiplier

抵抗値（単½　Ω）

Resistance（Unit　Ω）

《標準公称抵抗値》

（Nominal resistance value）

公称抵抗値

Nominal resistance value

10Ω

100Ω

１kΩ

10kΩ

100kΩ

1MΩ

記　号

Code

100

101

102

103

104

105

公称抵抗値

Nominal resistance value

20Ω

200Ω

2kΩ

20kΩ

200kΩ

—

Fig−１

※ご注文に際しては、両シリーズ（RJC094、RJC097）とも《標準公称抵抗値》Fig-1についてすべての組み合わせが可½です。

※ご注文に際しては、上記品名構成をご確認下さい。

記　号

Code

200

201

202

203

204

—

公称抵抗値

Nominal resistance value

50Ω

500Ω

5kΩ

50kΩ

500kΩ

—

記　号

Code

500

501

502

503

504

—
