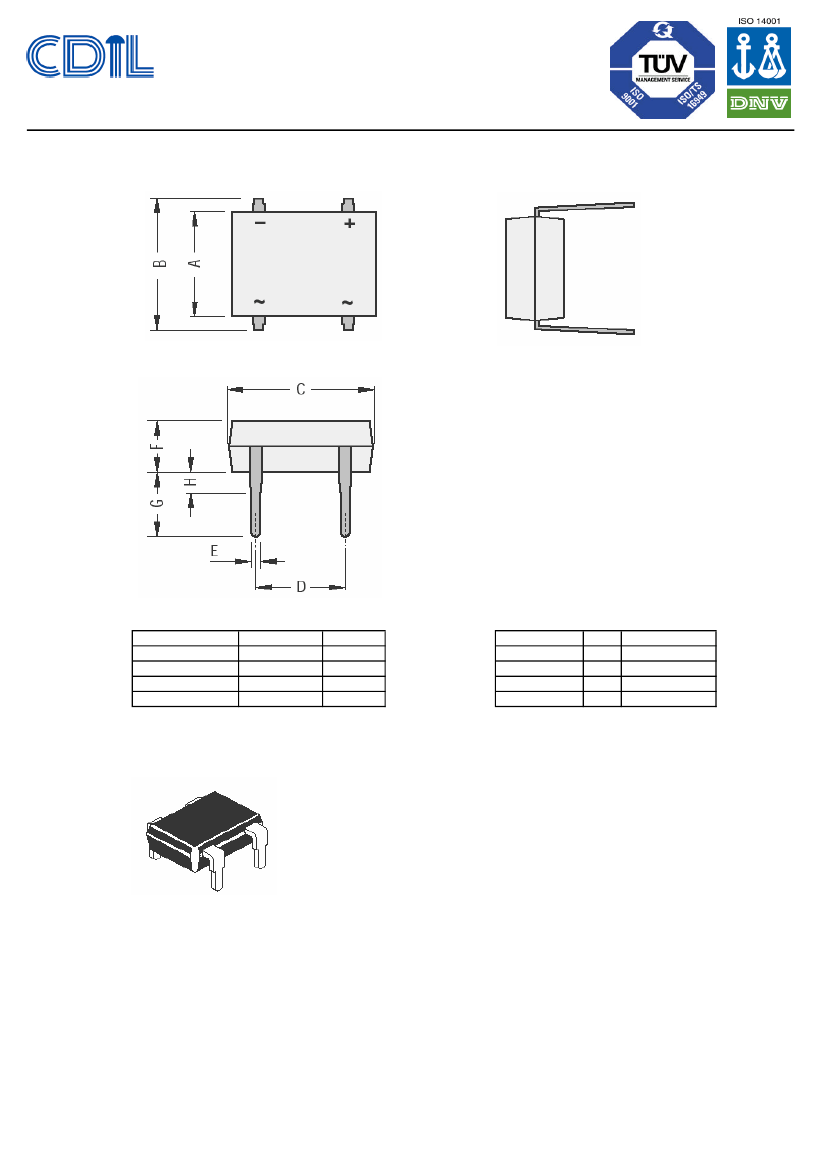

DB-1 Leaded Plastic Package
Package Outline and Packaging Information
DB1_Pkg_Drawing Rev281105
Continental Device India Limited
Data Sheet
Page 1 of 3
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
DB-1 Leaded Plastic Package
DIM
Min
A
6.20
B
7.60
C
8.00
D
5.00
All Dimensions are in mm
Max
6.50
8.90
8.30
5.20
DIM
E
F
G
H
Min
2.60
3.90
Max
0.50
3.20
4.20
1.50
DB1_Pkg_Drawing Rev281105
Continental Device India Limited
Data Sheet
Page 2 of 3
DB-1 Package and Packaging
Packaging Information
Package/
Case Type
DB-1
Packaging Type Std. Packing
Qty
Bulk
Tube
1,000
2,500
Qty
Inner Carton
Size L x W x H Gross Weight
(cm)
(Kg)
Qty
Outer Carton
Size L x W x H Gross Weight
(cm)
(Kg)
Bulk: Loose in poly bags
Tube: Tube and Ammo Pack
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please dispose
as per prevailing Environmental Legislation of their Country.
2. In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
Customer Notes
DB-1 Package and Packaging
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited for application in
your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to confirm that the
Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and on the CDIL Web Site/CD
are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete information.
Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product; neither does it convey
any license under its patent rights nor rights of others. These products are not designed for use in life saving/support appliances or
systems. CDIL customers selling these products (either as individual Semiconductor Devices or incorporated in their end products), in any
life saving/support appliances or systems or applications do so at their own risk and CDIL will not be responsible for any damages resulting
from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150,
4141
1112 Fax + 91-11-2579 5290,
4141
1119
